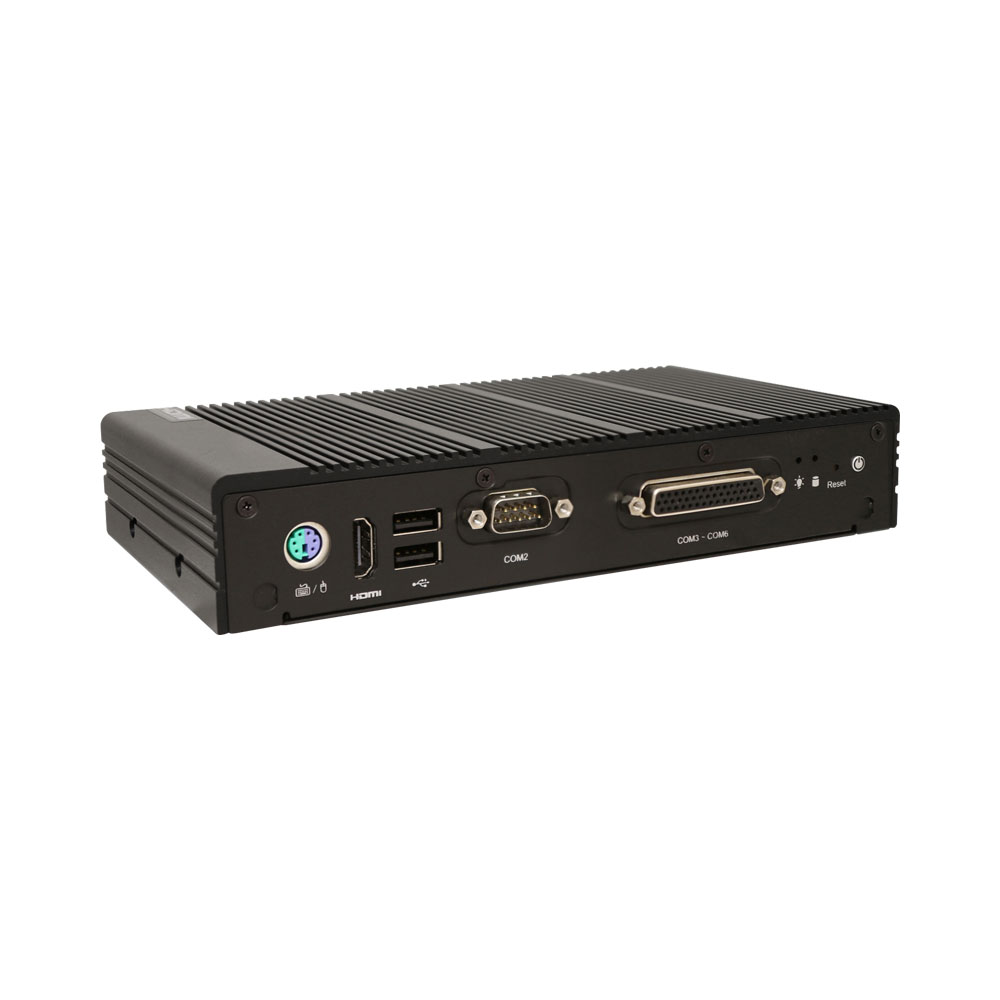

AOPEN INDUSTRIAL PLAYER FS IE-SK500 I5-6200 128G 4

Product Description

The AOPEN INDUSTRIAL PLAYER FS IE-SK500 I5-6200 128G 4 is a high-performance solution from AOPEN, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• i5 6th Generation Intel Core CPU
• High-Input Voltage
• Supports 6 COM Ports
• PS/2 Connector
• SPECIFICATIONS

Technical Specifications:
FEATURES

• i5 6th Generation Intel Core CPU
• High-Input Voltage
• Supports 6 COM Ports
• PS/2 Connector

SPECIFICATIONS

• Dimensions:
W × H × D: 209.8 × 38.2 × 120mm
MB: 185 × 115mm
• Weight:
Net Weight: 1.62kg
Gross Weight: 1.94kg
• Mechanical:
Housing: Aluminium + SECC
Mounting: L-Type Wallmount
• Supports OS: Windows 10 IoT
• Certification: Complete Certification for EMC Safety UL, CB, CCC, CE, FCC, RoHS
• Processor:
CPU: i5 6th Generation Intel Core
L2 Cache: 3MB
BIOS: AMI UEFI
• Memory Onboard: DDR4 2133Mhz up to 8GB
• Graphics:
Intel Core SoC
Intel HD Graphics 520
• Expansion Slots:
1× M.2 2230 for Wi-Fi (Built-In)
1× M.2 2242 for SATA SSD
1× Mini PCIe Slot for mSATA
• Ethernet:
Chip: 2× Intel I211AT
Speed: 10/100/1000Mbps
• Storage:
2.5″ SSD 1×
mSATA 1×
• I/O Interface:
DC Jack 1× (12~28V)
Graphics Ports 2× (1× VGA and 1× HDMI 1.4)
USB2.0 Port 2×
USB3.0 Port 4×
RJ45 LAN 2×
Audio: 1× (Line-out)
Antenna Holes 4×
COM Ports: 6× DB9 (1× RS232, 1× RS232/422/485 Switch by BIOS, 4× RS232/48 Switch by BIOS)
Other: 1× PS/2 KB/MS, 1× Power Button, 1× Reset Button
• Power Requirement:
Input Voltage 12~28V DC
Power Adapter: AC~DC 12V 5A 60W
• Power Consumption:
Typical 30W
Max. 35W
• Operating Temperature: 0~50°C
• Storage Temperature: -30~70°C
• Relative Humidity: 90% RH (50°C Non-Condensing)
• Vibration During Operation: 2.20G / Random 10min per Axis in All 3 Axes
• Shock During Operation: Half Sine, 40G, 2~3ms Duration
• EMC: CE/FCC Class B
