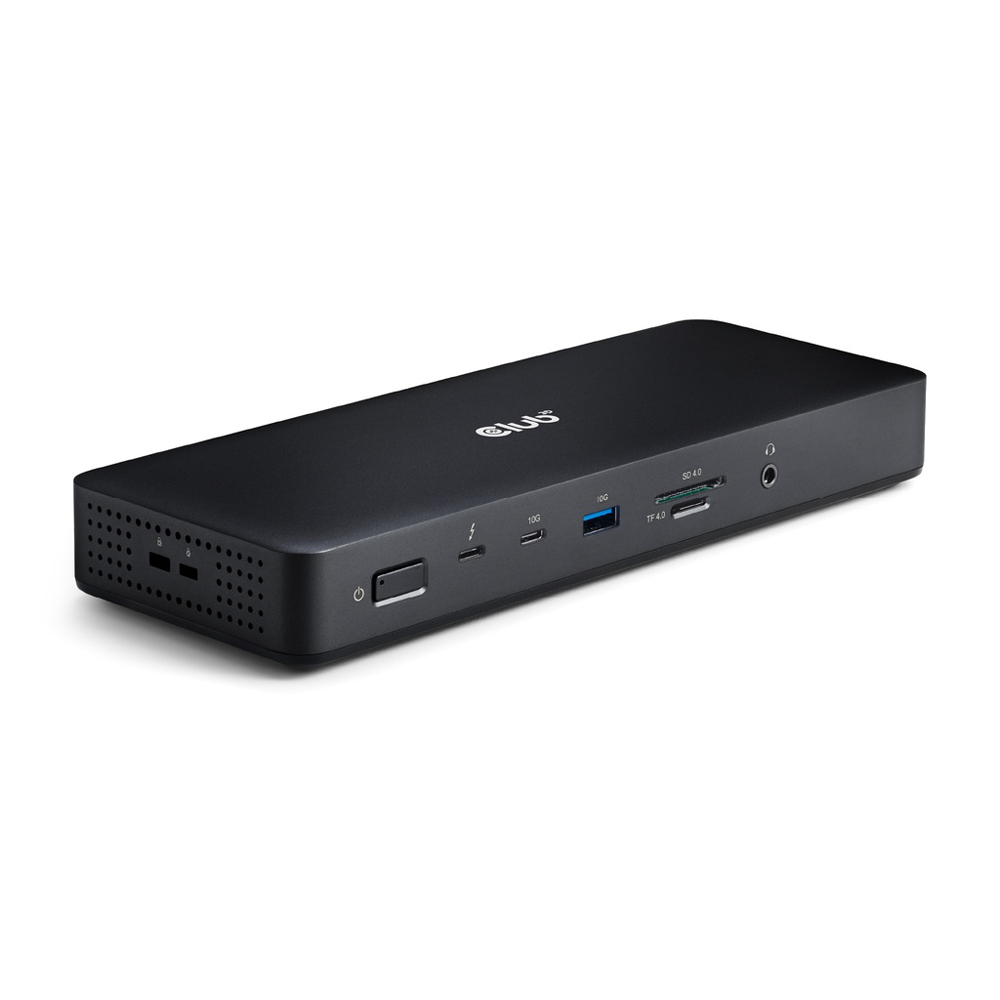

CLUB3D CSV-1583 THUNDERBOLT 4 16-IN-1 QUADRA DISPLAY PORT REPLICATOR WITH 8K @30HZ HDMI AND PD3.0 MAX. 140W

Product Description

The CLUB3D CSV-1583 THUNDERBOLT 4 16-IN-1 QUADRA DISPLAY PORT REPLICATOR WITH 8K @30HZ HDMI AND PD3.0 MAX. 140W is a high-performance solution from CLUB3D, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 16-in-1 Quadra Display Dock – Advanced multi-display Thunderbolt 4 docking solution
• Quadra Display Support – Drive up to four displays from a single connection
• 40Gbps Thunderbolt 4 – Ultra-fast data, video and power delivery performance
• 8K and Dual 4K Output – Supports 8K @30Hz or dual 4K @60Hz displays
• DisplayLink Technology – Enables extended multi-display support across platforms

Technical Specifications:
FEATURES

• 16-in-1 Quadra Display Dock – Advanced multi-display Thunderbolt 4 docking solution
• Quadra Display Support – Drive up to four displays from a single connection
• 40Gbps Thunderbolt 4 – Ultra-fast data, video and power delivery performance
• 8K and Dual 4K Output – Supports 8K @30Hz or dual 4K @60Hz displays
• DisplayLink Technology – Enables extended multi-display support across platforms
• High-Speed USB Ports – up to 10Gbps for fast data transfer and connectivity
• 2.5Gbps Ethernet – High-speed, stable wired network connection
• Smart Power Distribution – Optimises power delivery between dock and host
• Up to 96W Laptop Charging – Keeps your device powered during use
• Universal Compatibility – Supports Thunderbolt 4, USB4.0, Thunderbolt 3 and DP Alt Mode systems

SPECIFICATIONS

• Input:
 - 1× Thunderbolt 4 (40Gbps, USB Type-C Host)
• Output:
 - 2× Thunderbolt 4
 - 3× DisplayPort
 - 2× HDMI
 - 1× USB Type-C
 - 3× USB Type-A
 - 1× RJ45 Ethernet (2.5Gbps)
 - 1× SD/TF Card Slot
 - 1× 3.5mm Audio Jack
 - 1× DC Power Input
• Video Support:
 - Quadra Display Support (up to 4× Displays)
 - up to 8K @30Hz or Dual 4K @60Hz
 - DisplayLink Enabled for Extended Displays
 - Supports Multi-Stream Transport (MST)
• Data Transfer:
 - Thunderbolt 4 up to 40Gbps
 - USB Ports up to 10Gbps
• Power Delivery:
 - up to 140W Total Power (Dock and Host)
 - up to 96W Charging to Host
 - Smart Power Distribution
• Networking: 2.5 Gigabit Ethernet
• Card Reader:
 - SD 4.0 (up to 312MB/s)
 - Supports SD and MicroSD
• Compatibility:
 - Supports Thunderbolt 4, USB4.0, Thunderbolt 3 and DP Alt Mode
 - OS: Windows 10 and Above, macOS
• Security:
 - Kensington Lock Slot
 - Nano Lock Slot Support
• Cable Length: 0.8m Thunderbolt 4 Cable
• Device Dimensions: 22.5 × 8.5 × 2.9cm
• Power Supply Dimensions: 16 × 6.5 × 3cm
• Box Dimensions: 27.5 × 12.5 × 8.7cm
• Device Weight: 594g
• Total Weight: 1.39kg
• Meets ROHS, FCC and CE EMI Requirements
