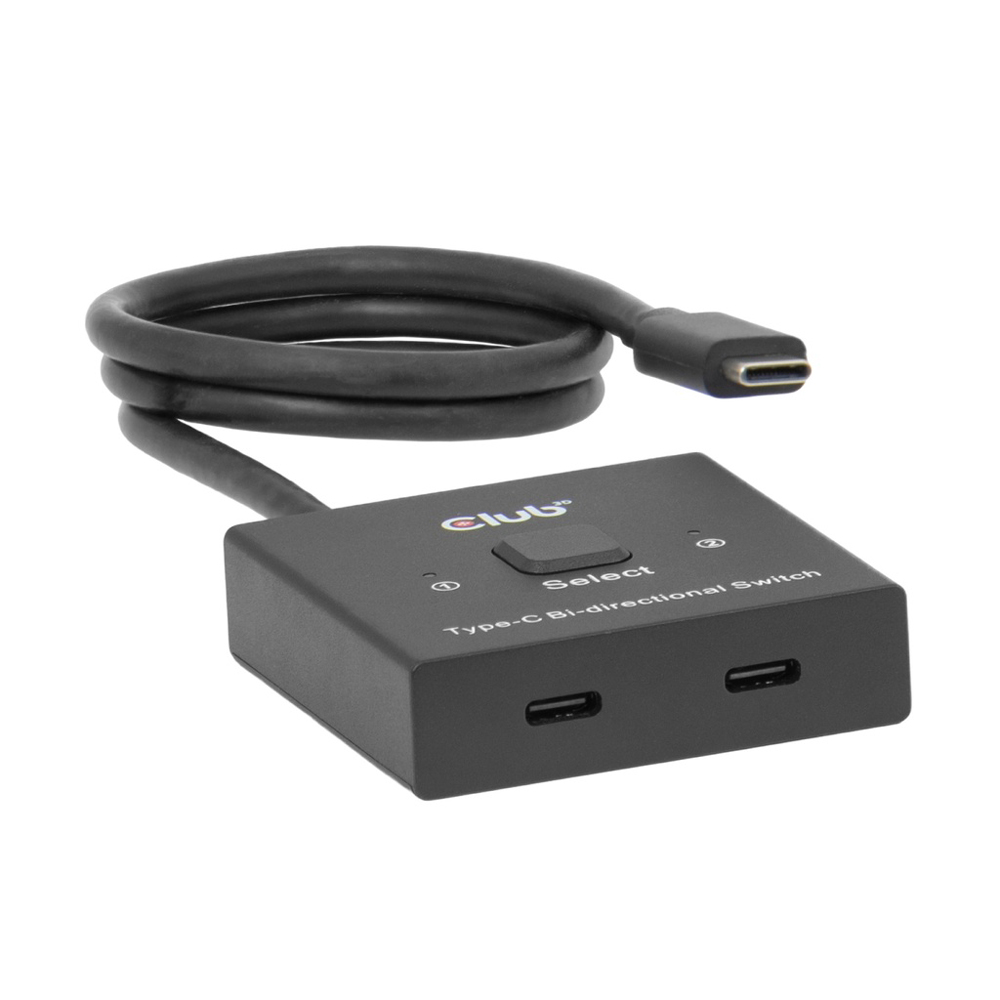

CLUB3D CSV-2511 USB TYPE-C BI-DIRECTIONAL 8K @60HZ VIDEO, 10GBPS DATA AND 100W POWER DELIVERY SWITCH

Product Description

The CLUB3D CSV-2511 USB TYPE-C BI-DIRECTIONAL 8K @60HZ VIDEO, 10GBPS DATA AND 100W POWER DELIVERY SWITCH is a high-performance solution from CLUB3D, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• USB Type-C Bi-Directional Switch – Switch between two sources or two displays with one device
• 8K @60Hz and 4K @120Hz Support – Ultra-high resolution with smooth visual performance
• DisplayPort 1.4 Support – up to 32.4Gbps bandwidth for high-performance video
• USB3.2 Gen2 – up to 10Gbps data transfer for fast connectivity
• Power Delivery 3.0 – up to 100W charging with pass-through support

Technical Specifications:
FEATURES

• USB Type-C Bi-Directional Switch – Switch between two sources or two displays with one device
• 8K @60Hz and 4K @120Hz Support – Ultra-high resolution with smooth visual performance
• DisplayPort 1.4 Support – up to 32.4Gbps bandwidth for high-performance video
• USB3.2 Gen2 – up to 10Gbps data transfer for fast connectivity
• Power Delivery 3.0 – up to 100W charging with pass-through support
• Dual Switching Modes – One source to two displays or two sources to one display
• One-Button Switching – Quick toggle with LED indicators for active port status
• HDCP Pass-Through – Secure content transmission across connected devices
• USB Type-C Powered – Requires 5V input for operation with low power consumption
• Wide Compatibility – Supports USB Type-C and Thunderbolt devices across all operating systems

SPECIFICATIONS

• Input:
 - 1× USB Type-C (Host)
 - 1× USB Type-C (5V Power Input)
• Output:
 - 2× USB Type-C
• Video Support:
 - up To 8K @60Hz or 4K @120Hz
 - DisplayPort 1.4 (32.4Gbps Bandwidth)
• Data Transfer:
 - USB3.2 Gen2
 - up to 10Gbps
• Power Delivery:
 - PD 3.0 up to 100W
 - Requires 5V USB Type-C Power Input
 - Low Power Consumption (Approx. 0.1W)
• Functionality:
 - Bi-Directional Switching (2 Sources to 1 Display or 1 Source to 2 Displays)
 - One-Button Switching with LED Status Indicators
 - HDCP Pass-Through
• Compatibility:
 - OS: All Major Operating Systems
 - Supports USB Type-C and Thunderbolt Devices
• Cable Length: Approx. 0.5m
• Device Dimensions: 5.5 × 5.5 × 1.5cm
• Connector Dimensions (USB Type-C): 3.62 × 1.2 × 0.63cm
• Box Dimensions: 14.5 × 14.5 × 4.5cm
• Device Weight: 61g
• Total Weight: 110g
• Meets ROHS, FCC and CE EMI Requirements
