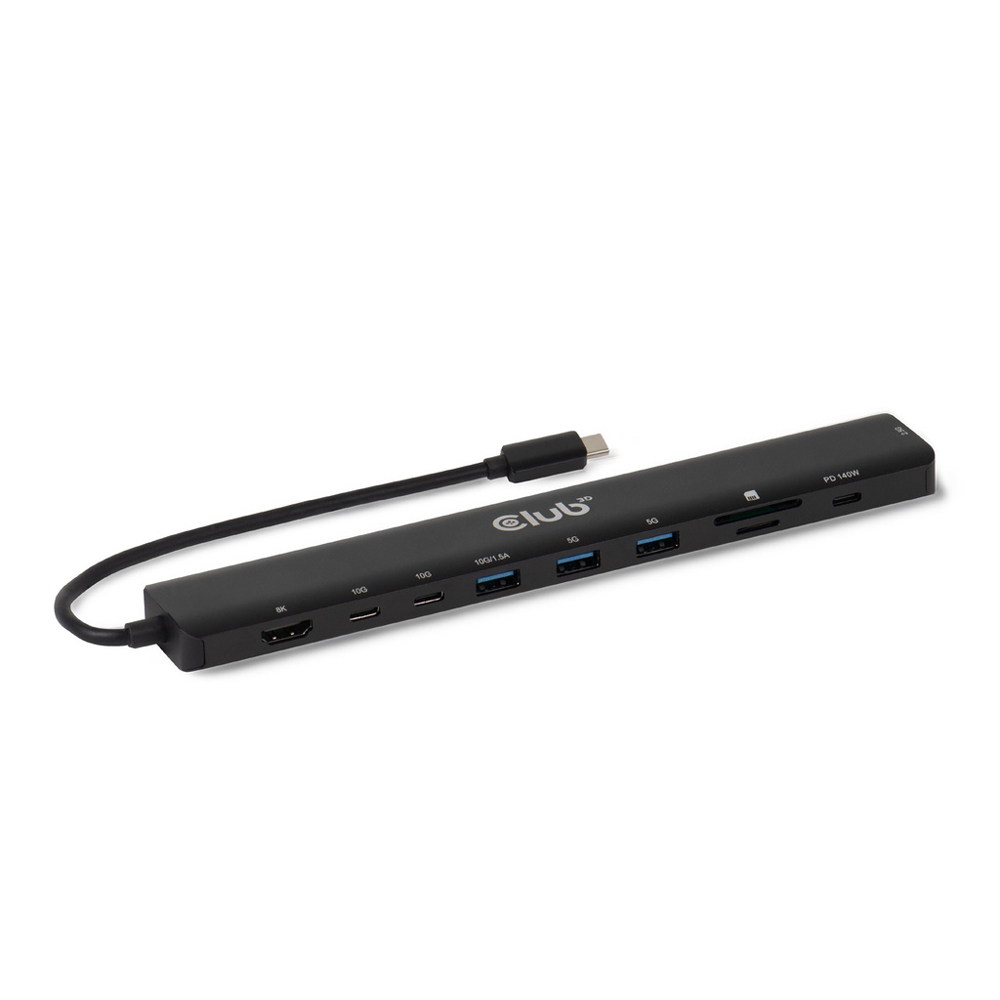

CLUB3D CSV-2550 USB TYPE-C 10-IN-1 PORT REPLICATOR WITH 8K @30HZ HDMI AND PD3.1 MAX. 140W

Product Description

The CLUB3D CSV-2550 USB TYPE-C 10-IN-1 PORT REPLICATOR WITH 8K @30HZ HDMI AND PD3.1 MAX. 140W is a high-performance solution from CLUB3D, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 8K HDMI Output – up to 8K @30Hz or 4K @120Hz for ultra-sharp visuals
• 140W Power Delivery 3.1 – Charge your laptop while powering your setup
• 2.5Gbps Ethernet – Ultra-fast, stable wired network connection
• High-Speed USB Ports – up to 10Gbps for fast data transfer and device connectivity
• SD and MicroSD Slots – Simultaneous card access for quick file transfers

Technical Specifications:
FEATURES

• 8K HDMI Output – up to 8K @30Hz or 4K @120Hz for ultra-sharp visuals
• 140W Power Delivery 3.1 – Charge your laptop while powering your setup
• 2.5Gbps Ethernet – Ultra-fast, stable wired network connection
• High-Speed USB Ports – up to 10Gbps for fast data transfer and device connectivity
• SD and MicroSD Slots – Simultaneous card access for quick file transfers
• Plug-and-Play – Driverless setup for instant productivity

SPECIFICATIONS

• Input:
 - 1× USB Type-C (10Gbps, Host)
• Output:
 - 1× HDMI 2.1
 - 1× RJ45 Ethernet (10/100/1000/2.5Gbps)
 - 1× USB Type-C PD 3.1
 - 2× USB Type-C (10Gbps)
 - 1× USB Type-A (10Gbps)
 - 2× USB Type-A (5Gbps)
 - 1× SD Card Slot
 - 1× MicroSD Card Slot
• Video Support:
 - up to 8K @30Hz or 4K @120Hz
 - DisplayPort 1.4 Alt Mode
 - 8-bit / 10-bit / 12-bit Colour Depth
 - HDCP 2.3 and HDCP 1.4
• Data Transfer:
 - USB3.2 Gen2 (up to 10Gbps)
 - USB3.2 Gen1 (up to 5Gbps)
• Power Delivery:
 - PD 3.1 up to 140W Input
 - up to 125W Pass-Through to Host
 - 15W Reserved for Dock Operation
 - Fast Role Swap Support
• Networking:
 - 2.5 Gigabit Ethernet
 - Supports Wake-on-LAN
• Card Reader:
 - SD and MicroSD (UHS-I, up to 104MB/s)
 - Supports Simultaneous Use
• Downstream Charging: up to 7.5W per Port (USB Type-C and USB Type-A)
• Compatibility:
 - OS: Windows 10 and Above, macOS
 - Supports USB Type-C Devices with DP Alt Mode
• Cable Length: Approx. 19cm
• Connector Dimensions (USB Type-C): 3.62 × 1.2 × 0.63cm
• Box Dimensions: 7 × 3.2 × 3.5cm
• Device Weight: 109g
• Total Weight: 154g
• Meets ROHS, FCC and CE EMI Requirements
