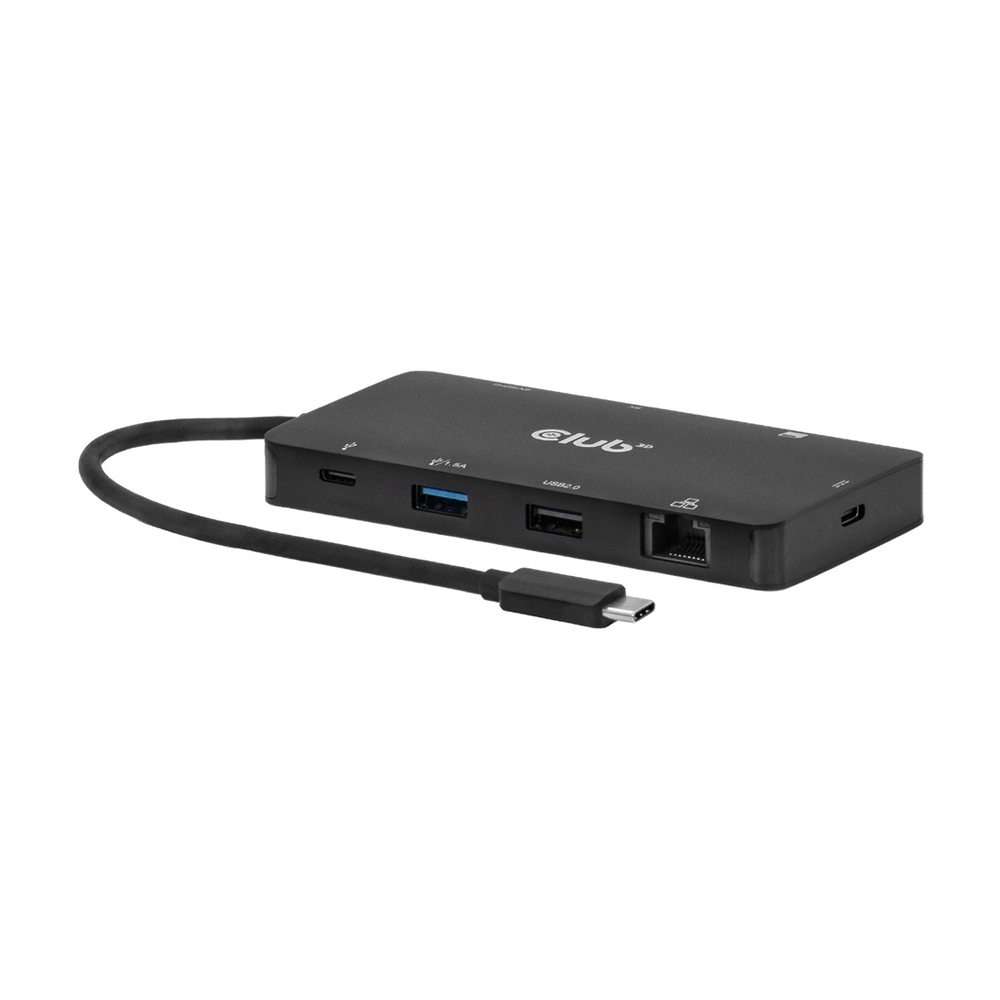

CLUB3D CSV-2552 USB TYPE-C 9-IN-1 DUAL DISPLAY PORT REPLICATOR WITH 8K @30HZ HDMI AND PD3.0 MAX. 100W

Product Description

The CLUB3D CSV-2552 USB TYPE-C 9-IN-1 DUAL DISPLAY PORT REPLICATOR WITH 8K @30HZ HDMI AND PD3.0 MAX. 100W is a high-performance solution from CLUB3D, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Dual HDMI Output – Connect up to 2× displays from one device
• 8K and Dual 4K Support – up to 8K @30Hz or 2× 4K @60Hz
• Power Delivery 3.0 – up to 100W pass-through charging
• Gigabit Ethernet – Stable wired network up to 1Gbps
• USB Type-C and USB Type-A Ports – Flexible connectivity for devices and peripherals

Technical Specifications:
FEATURES

• Dual HDMI Output – Connect up to 2× displays from one device
• 8K and Dual 4K Support – up to 8K @30Hz or 2× 4K @60Hz
• Power Delivery 3.0 – up to 100W pass-through charging
• Gigabit Ethernet – Stable wired network up to 1Gbps
• USB Type-C and USB Type-A Ports – Flexible connectivity for devices and peripherals
• High-Speed Data Transfer – up to 5Gbps via USB ports
• SD and MicroSD Card Slots – Simultaneous access for fast file transfers
• Fast Role Swap – Prevents disconnection when unplugging power

SPECIFICATIONS

• Video Support:
 - up to 8K @30Hz or Dual 4K @60Hz
 - DP1.4 Alt Mode with MST (Windows) and SST (macOS)
• Data Transfer:
 - USB Type-C and USB Type-A Ports
 - up to 5Gbps High-Speed Data Transfer
 - Additional USB Type-A (USB2.0) for Peripherals
• Power Delivery:
 - PD3.0 up to 100W Pass-Through Charging
 - Fast Role Swap Support for Uninterrupted Operation
• Network Connectivity: Gigabit Ethernet (10/100/1000Mbps)
• Card Reader:
 - SD and MicroSD (UHS-I) support
 - Simultaneous dual card access up to 104MB/s
• Compatibility:
 - OS: Windows 11 and macOS 15
 - Supports USB Type-C devices with DP1.4 Alt Mode
• Cable Length: Approx. 17cm
• Device Dimensions: 11.5 × 5.9 × 1.4cm
• Connector Dimensions (USB Type-C): 3.62 × 1.2 × 0.63cm
• Box Dimensions: 14.5 × 14.5 × 4.5cm
• Device Weight: 121g
• Total Weight: 169g
• Meets ROHS, FCC and CE EMI Requirements
