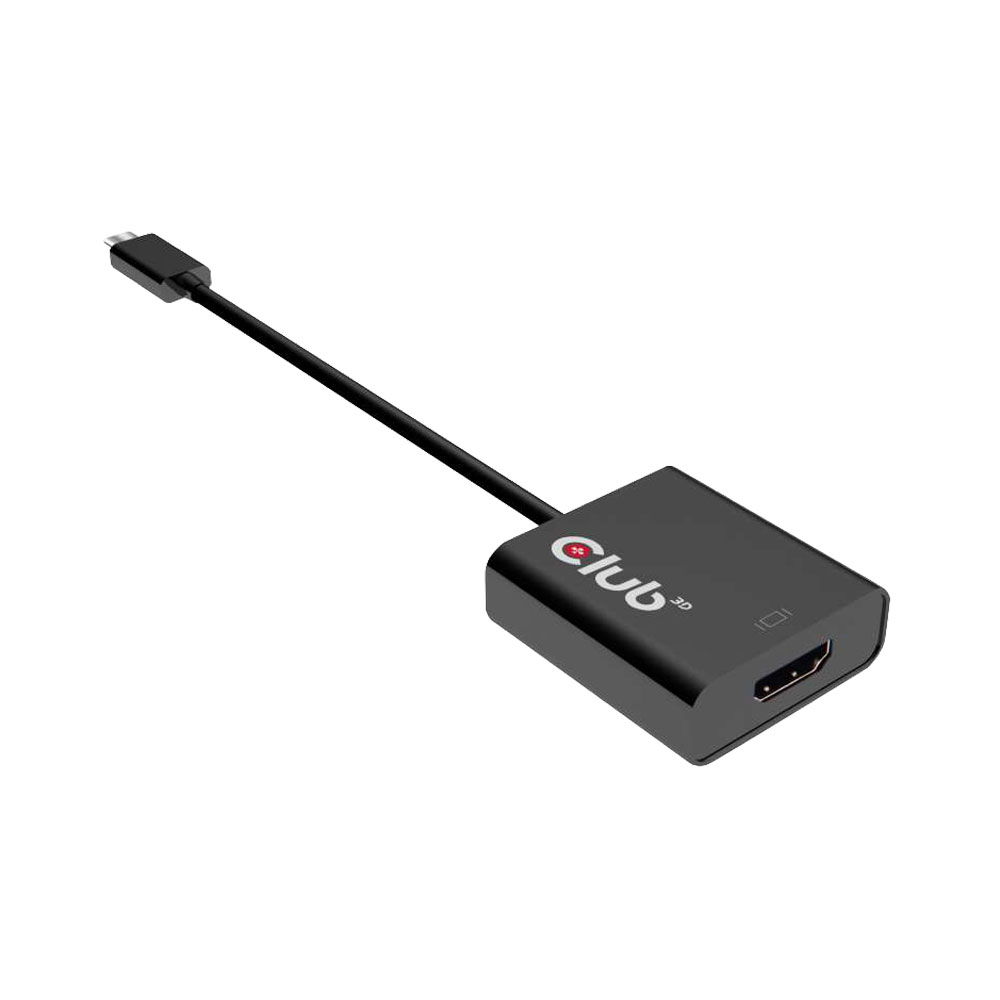

CLUB3D USB 3.1 TYPE-C TO HDMI 2.0 4K60HZ UHD ACTIVE

Product Description

The CLUB3D USB 3.1 TYPE-C TO HDMI 2.0 4K60HZ UHD ACTIVE is a high-performance solution from CLUB3D, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Reversible USB Type C Connector
• DisplayPort 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR
• Video Stream Handling
• Up to 600Mhz dual pixel path and 16bpc
• RGB/YCbCr 4:2:2/4:2:0 pixel format

Technical Specifications:
FEATURES

• Reversible USB Type C Connector
• DisplayPort 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR
• Video Stream Handling
• Up to 600Mhz dual pixel path and 16bpc
• RGB/YCbCr 4:2:2/4:2:0 pixel format
• Horizontal expansion of Vesa CVT to CEA Timings (as per DP 1.4 spec)
• DisplayPort to HDMI Stereoscopic 3D Transport
• Frame Sequential to Stacked Top-Bottom Conversion
• Pass-trough of ther 3D Formats
• Audio Stream Handling
• LPCM and compressed Audio encoding formats
• Max audio sample rate of 192 Khz x 8 Channel or 768 KHz x 2 Channel
• HDCP Support
• HDCP 1.3 to HDCP 1.4 repeater function
• HDCP 2.2 to HDCP 1.4 and 2.2 repeater function
• HDMI transmitter
• Compliant to HDMI SPECIFICATIONS version 2.0 b
• 600MHz max TMDS character clock
• High Daynamic Range (HDR) support both Static- and Dynamic HDR
• CEC Support – snooping, tunneling
• Max Video resolution and color depth on HDMI output
• 4K 60Hz YCbCr 4:2:2, up to 12bpc
• 4K 60Hz YCbCr 4:2:0, up to 12bpc
• 4K 30Hz RGB/YCbCr 4:2:2, up to 12bpc
