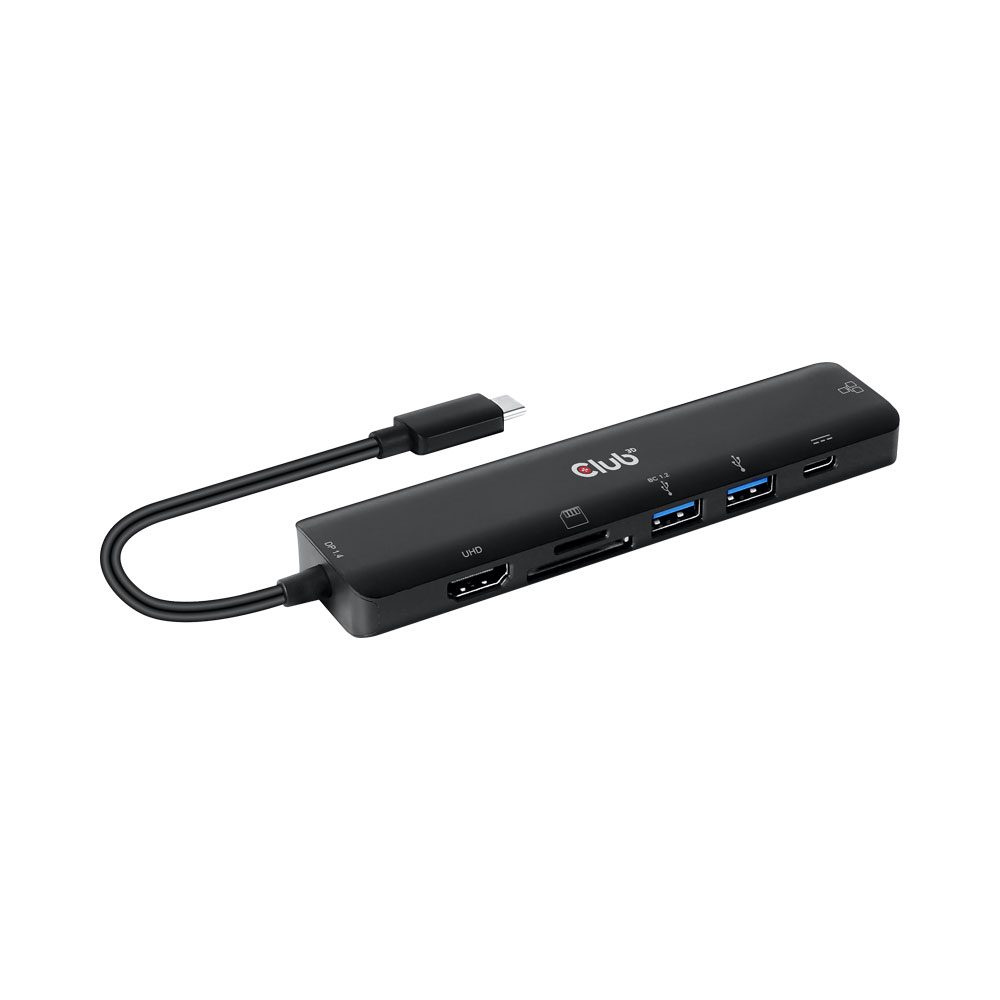

CLUB3D USB TYPE-C 7-IN-1 HUB, HDMI, SD-TF CARD SLOT*

Product Description

The CLUB3D USB TYPE-C 7-IN-1 HUB, HDMI, SD-TF CARD SLOT* is a high-performance solution from CLUB3D, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Upstream:  USB Type C Male (Connection to host)
• Support DP 1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane), downward compatible with DP1.2 Alt mode
• Note: To get max bandwidth, the host should support DP 1.4 Alt mode with DSC format
• Downstream
• Support HDMI max 4K/60Hz 4:4:4, 8bit with 18Gbps Bandwidth

Technical Specifications:
FEATURES

• Upstream:  USB Type C Male (Connection to host)
• Support DP 1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane), downward compatible with DP1.2 Alt mode
• Note: To get max bandwidth, the host should support DP 1.4 Alt mode with DSC format
• Downstream
• Support HDMI max 4K/60Hz 4:4:4, 8bit with 18Gbps Bandwidth
• Support 6/8/10/12-bit colour depth output
• Support output pixel format RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2
• Support HDCP 2.2&HDCP1.4
• Support HDR
• 2x USB Type A 3.0
• 1- USB Type A port supports BC 1.2 with max
• 7.5W(5V@1.5A) downstream charging,
• 2- USB Type A share max
• 8W (5V/1.6A) downstream charging
• Max 5Gbps bandwidth per USB Type A port
• Note: When connecting a DP 1.4 Alt mode supported host, the max resolution of HDMI is 4k/60Hz
• When connecting a DP 1.2 Alt mode supported host, the max resolution of HDMI is 4k/30Hz due to bandwidth limitation
• SD/Micro SD
• Support Secure Digital v3.0 UHS-I (Ultra High Speed) SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s)
• RJ45 (Gigabit Ethernet)
• Support 10Mbps/100Mbps/1000Mbps
• USB Type C Female (for PD Charging)
• Support PD Charging 100W (20V/5A)
• Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter
• 8W is dedicated to the functioning of this product, the rest power (max 92W) will be passed to charge for the host
