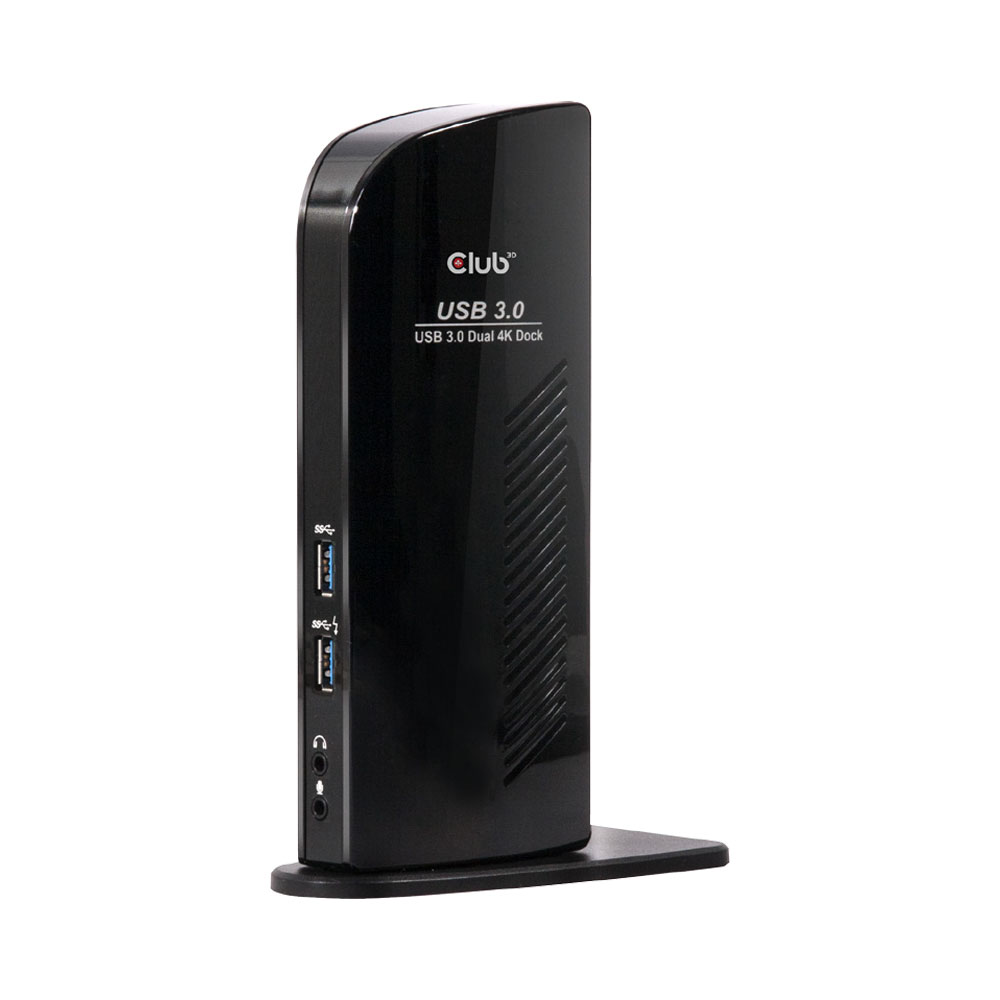

CLUB3D USB3.0 DUAL DISPLAYPORT DOCKING STATION

Product Description

The CLUB3D USB3.0 DUAL DISPLAYPORT DOCKING STATION is a high-performance solution from CLUB3D, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Portable Universal USB3.0 Gen 1 Dual Display 4K 60Hz Docking Station
• Fully USB C compatibel with USB C cable included in the box
• DisplayLink DL-6950 chip inside
• Supports dual External monitors via Displayport
• Max supported resolution up to:

Technical Specifications:
FEATURES

• Portable Universal USB3.0 Gen 1 Dual Display 4K 60Hz Docking Station
• Fully USB C compatibel with USB C cable included in the box
• DisplayLink DL-6950 chip inside
• Supports dual External monitors via Displayport
• Max supported resolution up to:
For Single Screen Setup: 5120×2880 @ 60Hz
For Dual Screen Setup: 2 x 3840×2160 @ 60Hz
• USB3.1 Gen 1 downstream port x 6 (BC 1.2 quick charging x1)
• Supports Gigabit Ethernet (10/ 100/ 1000Mbps)
• Audio: 2 x 3.5 mm Jack for Headphone and Microphone

OS Support:
Microsoft Windows 8.1/10

Inputs:
• USB3.0 Gen 1 B male x 1
• DC 5v female x 1

Outputs:
• Displayport x 2
• USB A 3.0 Gen 1 x 6
• Gigabit Ethernet port x 1
• 3.5mm Audio jack 2.1 ch x 1 • 3.5mm Mic jack x 1

SPECIFICATIONS

Box size: 158 x 248 x 93 mm
Adapter size: 80 (L) x 35(W) x 195(H)mm
Cable Length: 270 mm
Dock Weight: 395 gr.
USB-B to USB-C Cable Weight: 43 gr.
USB-Cable Weight: 42 gr.
AC-Cable Weight: 181 gr.
