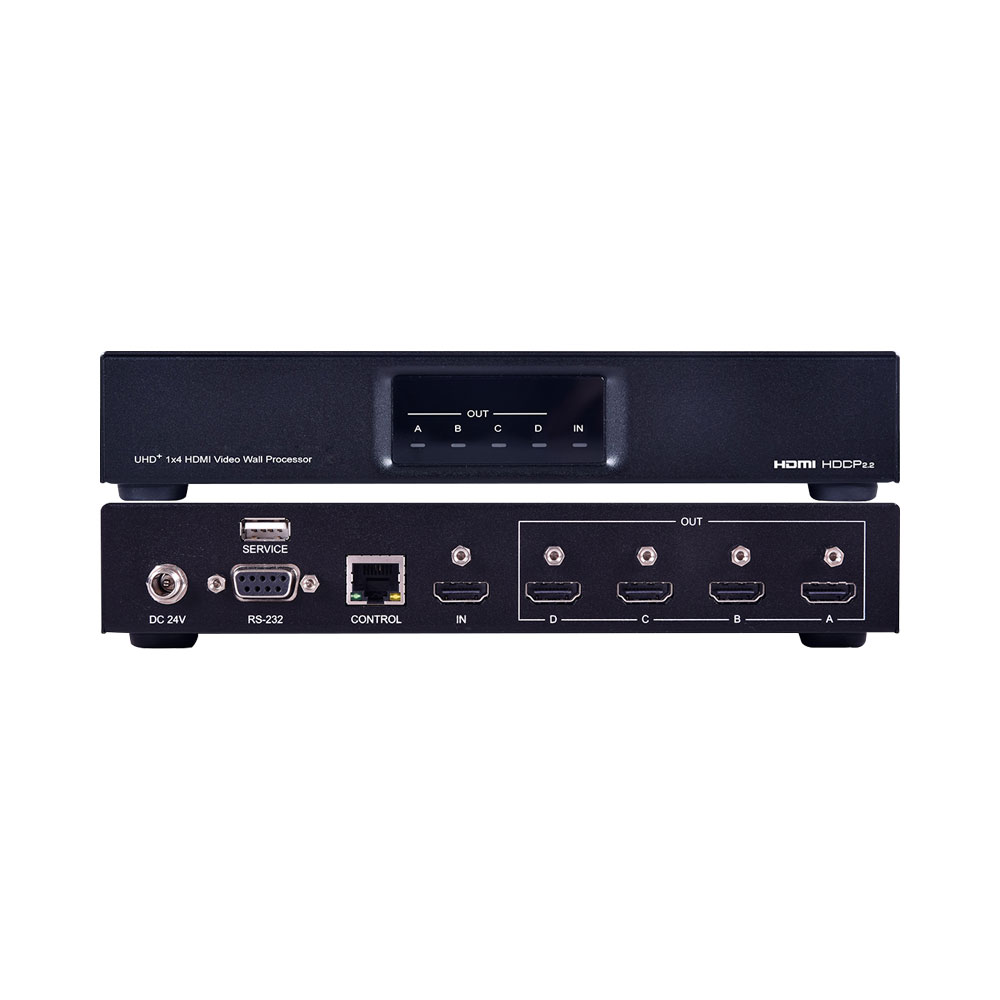

Cypress 1X4 VIDEO WALL PROCESSOR – 4K

Product Description

The Cypress 1X4 VIDEO WALL PROCESSOR – 4K is a high-performance solution from Cypress, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 1× HDMI input supports 4K sources up to 18Gbps (600MHz)
• 4× HDMI output supports resolutions fixed at 1080p @60Hz
• Input supports 4K resolutions up to 4096 × 2160 @60Hz (4:4:4, 8-bit)
• Input supports 4K @24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12-bit colour (HDR is automatically converted to SDR for 1080p output)
• Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream

Technical Specifications:
FEATURES
• 1× HDMI input supports 4K sources up to 18Gbps (600MHz)
• 4× HDMI output supports resolutions fixed at 1080p @60Hz
• Input supports 4K resolutions up to 4096 × 2160 @60Hz (4:4:4, 8-bit)
• Input supports 4K @24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12-bit colour (HDR is automatically converted to SDR for 1080p output)
• Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
• Basic signal event automation (via RS-232) to connected HDMI display
• Dedicated PC application for easy control of the unit
