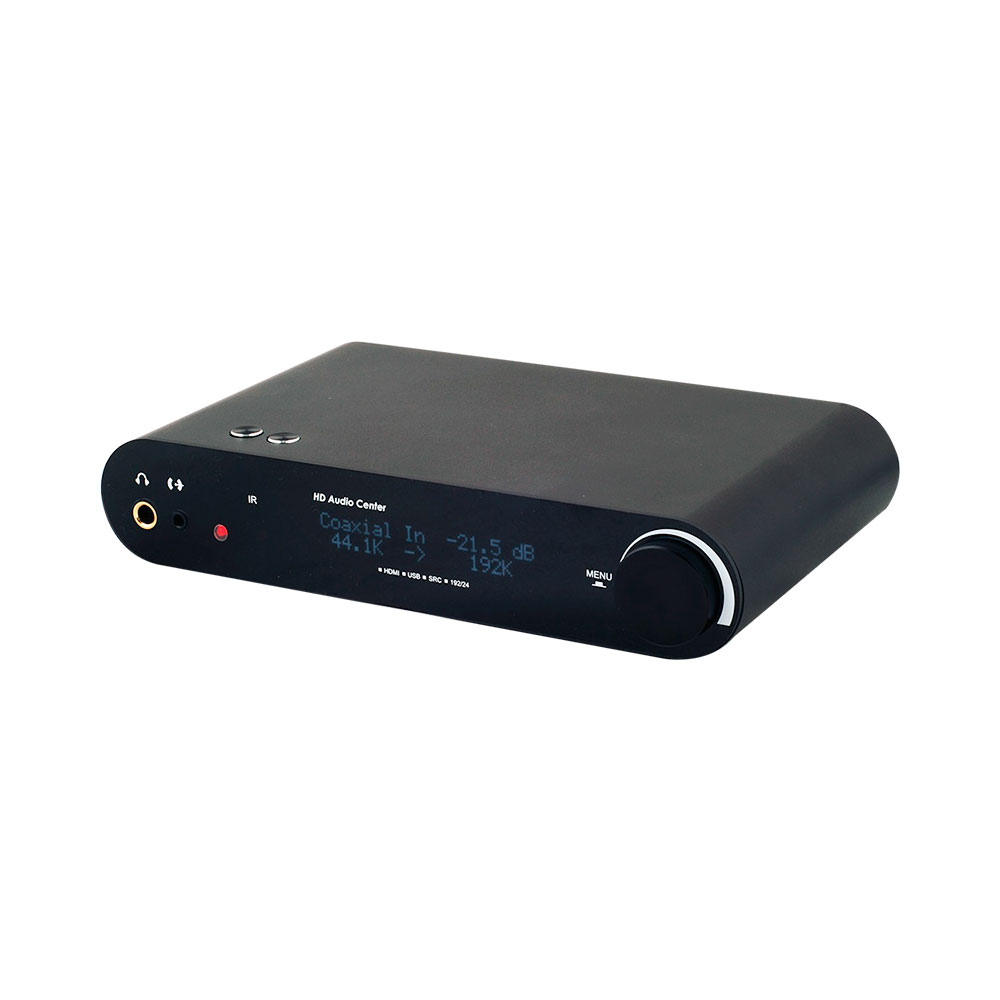

Cypress CYP AUDIO CENTER,HDMI,TOS,COAX,RCA,XLR,USB,3.5 AUD

Product Description

The Cypress CYP AUDIO CENTER,HDMI,TOS,COAX,RCA,XLR,USB,3.5 AUD is a high-performance solution from Cypress, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 6× Input, 6× Output HD Audio Center
• 4× Digital Inputs, 2× Analogue Inputs
• 3× Digital Outputs, 2× Analogue Outputs and Headphone Output
• Full system control from IR remote or main control dial via OLED display
• Digital

Technical Specifications:
FEATURES
• Main
• 6× Input, 6× Output HD Audio Center
• 4× Digital Inputs, 2× Analogue Inputs
• 3× Digital Outputs, 2× Analogue Outputs and Headphone Output
• Full system control from IR remote or main control dial via OLED display
• Digital
• HDMI, USB, Optical and Coaxial digital audio inputs support LPCM stereo
• HDMI input supports LPCM stereo in all modes but can pass surround sound signal whilst in bypass mode
• All digital inputs support 192kHz sampling rate at up to 24bit resolution
• HDMI, Optical and Coaxial digital outputs
• All digital inputs can be SRC (Sample Rate Conversion) to 44.1, 48, 88.2, 96, 176.4 and 192 kHz via DSP Engine (Digital Signal Processing)
• Highly accurate PLL and low jitter reduction clock system
• HDMI audio output (video is always bypassed to HDMI output) can either output the incoming HDMI (HDMI Bypass Mode) or embed the selected audio signal (HDMI Input Mode)
• Analogue
• Built-in Ti TPA6120A2 high quality headphone amplifier output
• Professional XLR balanced stereo output
• RCA analogue stereo output
• RCA analogue stereo input
• Mini-jack (3.5mm) stereo input
• Total Harmonic Distortion (THD): Less than 100dB (-20dBFS)
• Analogue inputs provide digital output sampling rates up to 192kHz
• Misc
• IR Remote with direct source, power and mute buttons
• HDMI audio embedding or de-embedding
• Volume control of analogue and headphone outputs or just headphone output via remote or main control dial
• Direct power and mute button on unit
• High viewing angle OLED display
• Headphone output fades in after system is muted
• 6.3mm headphone output (3.5mm mini-jack adaptor supplied)
