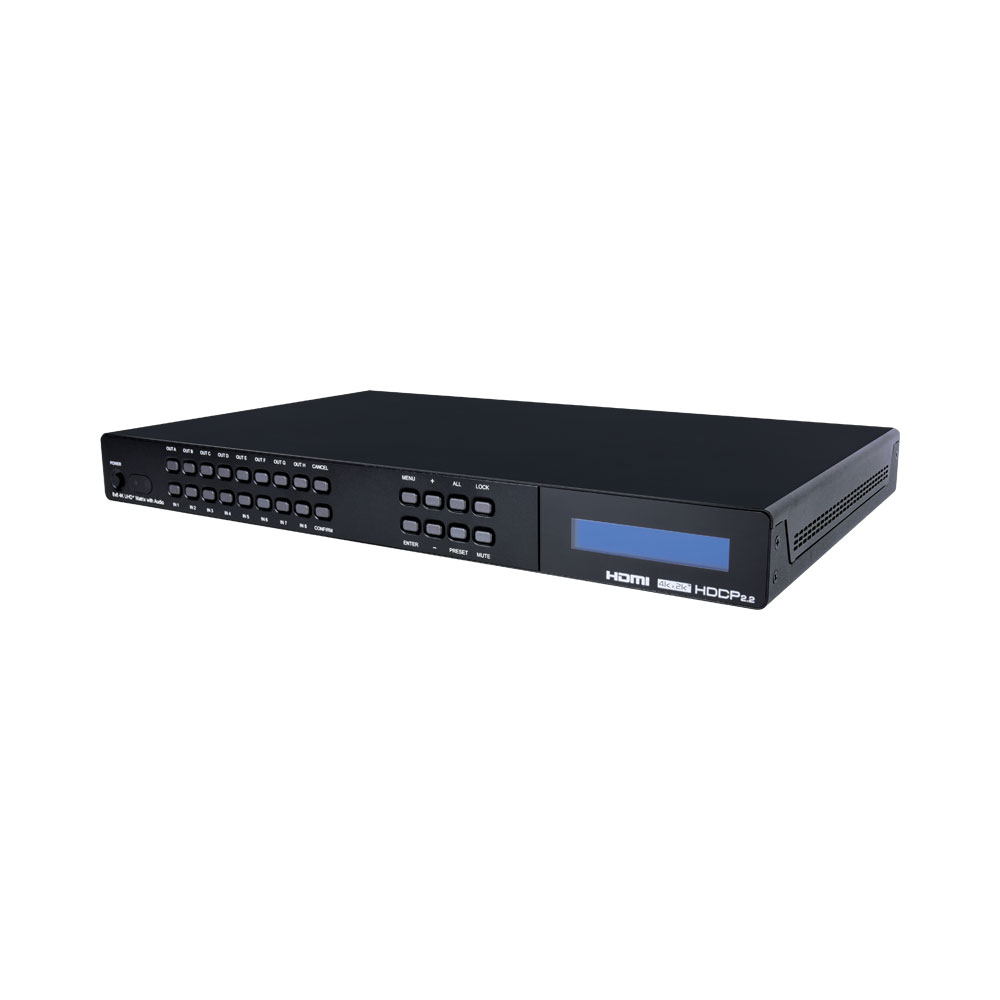

Cypress CYP CPLUS-V8H8HPA 4K 8X8 HDMI MATRIX WITH AUDIO OUTPUT

Product Description

The Cypress CYP CPLUS-V8H8HPA 4K 8X8 HDMI MATRIX WITH AUDIO OUTPUT is a high-performance solution from Cypress, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 8×8 HDMI matrix – Connects up to eight 4K UHD HDMI sources to eight displays with flexible switching between any input and output
• 4K performance – Supports up to 4K@60Hz (4:4:4, 8-bit) with 18Gbps bandwidth, HDR and HDMI 2.0 compliance
• Advanced EDID management – Built-in, copied and user-defined EDID options ensure maximum device compatibility
• Audio breakout – 8× analogue audio outputs that can be paired individually with HDMI outputs
• OSD customisation – Displays up to 2 lines of user-defined text overlay on each output

Technical Specifications:
FEATURES

• 8×8 HDMI matrix – Connects up to eight 4K UHD HDMI sources to eight displays with flexible switching between any input and output
• 4K performance – Supports up to 4K@60Hz (4:4:4, 8-bit) with 18Gbps bandwidth, HDR and HDMI 2.0 compliance
• Advanced EDID management – Built-in, copied and user-defined EDID options ensure maximum device compatibility
• Audio breakout – 8× analogue audio outputs that can be paired individually with HDMI outputs
• OSD customisation – Displays up to 2 lines of user-defined text overlay on each output
• Multiple control options – Front panel with LCD, plus RS-232, Telnet, WebGUI and IR remote control support

SPECIFICATIONS

INTERFACES

• Input Ports: 8× HDMI
• Output Ports: 8× HDMI
• Audio Output: 8× Unbalanced Stereo (3.5mm)
• Control Ports: 1× Control (RJ45), 1× RS232 (DB9), 1× IR In (3.5mm)
• Service Port: 1× USB Type-A

VIDEO

• HDMI Compliance: HDMI 2.0 (DVI 1.0)
• HDCP Compliance: 2.x
• Input Signal Types: 4096×2160 @60Hz 8bit YUV 4:4:4
• Output Signal Type: 4096×2160 @60Hz 8bit YUV 4:4:4

RESOLUTION

• Maximum Input: HDMI 4096×2160 @60Hz
• Maximum Output: HDMI 4096×2160 @60Hz

AUDIO

• Digital Formats: HDMI LPCM, Bitstream, HD Bitstream
• Analogue Formats: Unbalanced 2-Channel

POWER

• Power Supply: 24V, 6.25A
• Power Consumption: 70W

ENCLOSURE

• Chassis Material: Steel
• Chassis Colour: Black
• Dimensions (W × H × D):
– 438 × 44 × 269mm (Case Only)
– 438 × 49 × 274mm (All Inclusive)
• Weight: 3.6kg

FIELD FIRMWARE UPDATE

• Interface: USB Flash Drive, WebGUI
