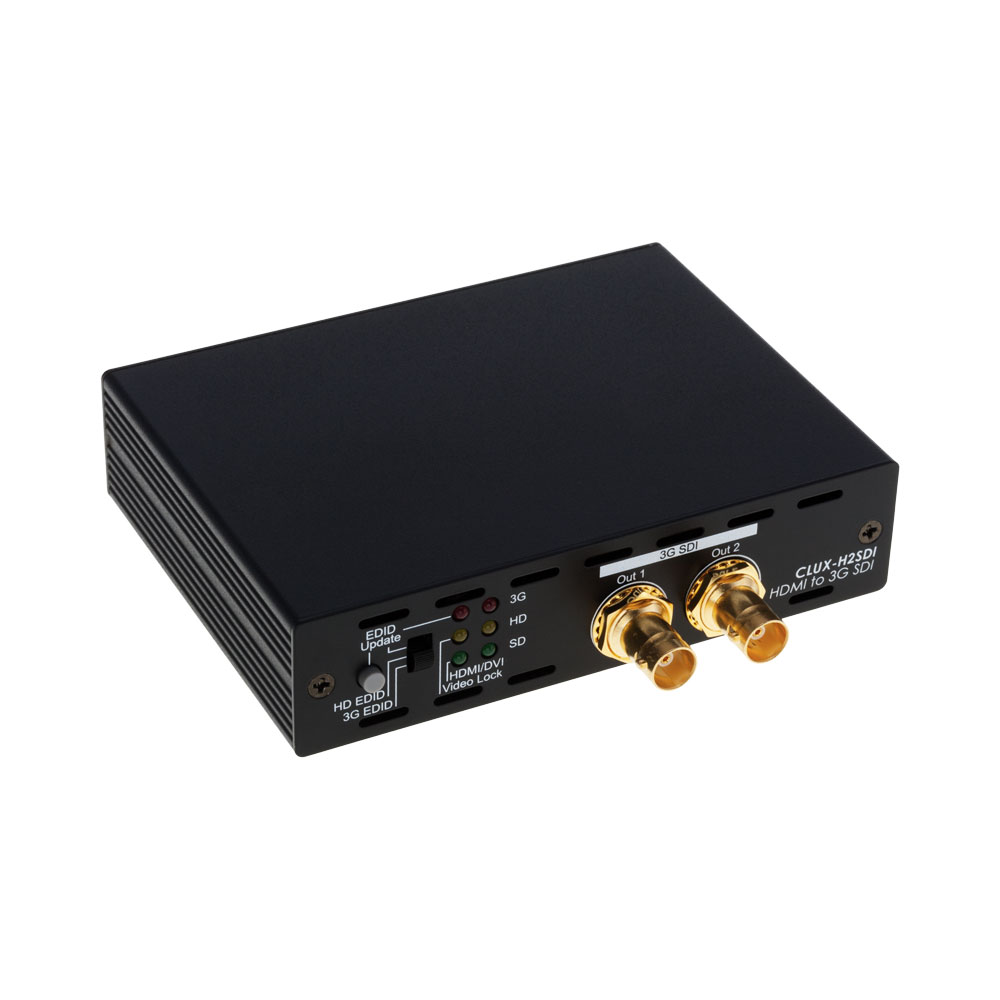

Cypress HDMI TO 3G SDI DUAL-OUTPUT CONVERTER

Product Description

The Cypress HDMI TO 3G SDI DUAL-OUTPUT CONVERTER is a high-performance solution from Cypress, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Shows HDMI source on two SDI displays simultaneously
• SDI interface operates at bitrates of 2.97Gbps, 2.97/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps and 270Mbps
• Converts HDMI signal to SDI
• 480i/576i to SD-SDI (SMPTE 259M-C at bitrates of 270Mbps)
• 720p/1080i to HD-SDI (SMPTE 292M at bitrates of 1.485Gbps or 1.485/1.001Gbpss)

Technical Specifications:
FEATURES
• Shows HDMI source on two SDI displays simultaneously
• SDI interface operates at bitrates of 2.97Gbps, 2.97/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps and 270Mbps
• Converts HDMI signal to SDI
• 1
• 480i/576i to SD-SDI (SMPTE 259M-C at bitrates of 270Mbps)
• 2
• 720p/1080i to HD-SDI (SMPTE 292M at bitrates of 1.485Gbps or 1.485/1.001Gbpss)
• 3
• 1080p to 3G-SDI (SMPTE 424M/425M-AB at bitrates of 2.97Gbps and 2.970/1.001Gbps)
• Supports HDMI input timings: 480i @59.94Hz, 576i, 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @23.98/24/25/29.97/30/50/59.94/60Hz
• Choose between a selectable EDID and recordable EDID
• Integrated audio embedded up to 8-Channel PCM 48kHz for HDMI or 2-Channel (external L/R) for DVI audio
• Supports SDI output distance up to 100m (3G-SDI), 200m (HD-SDI) or 300m (SD-SDI)
