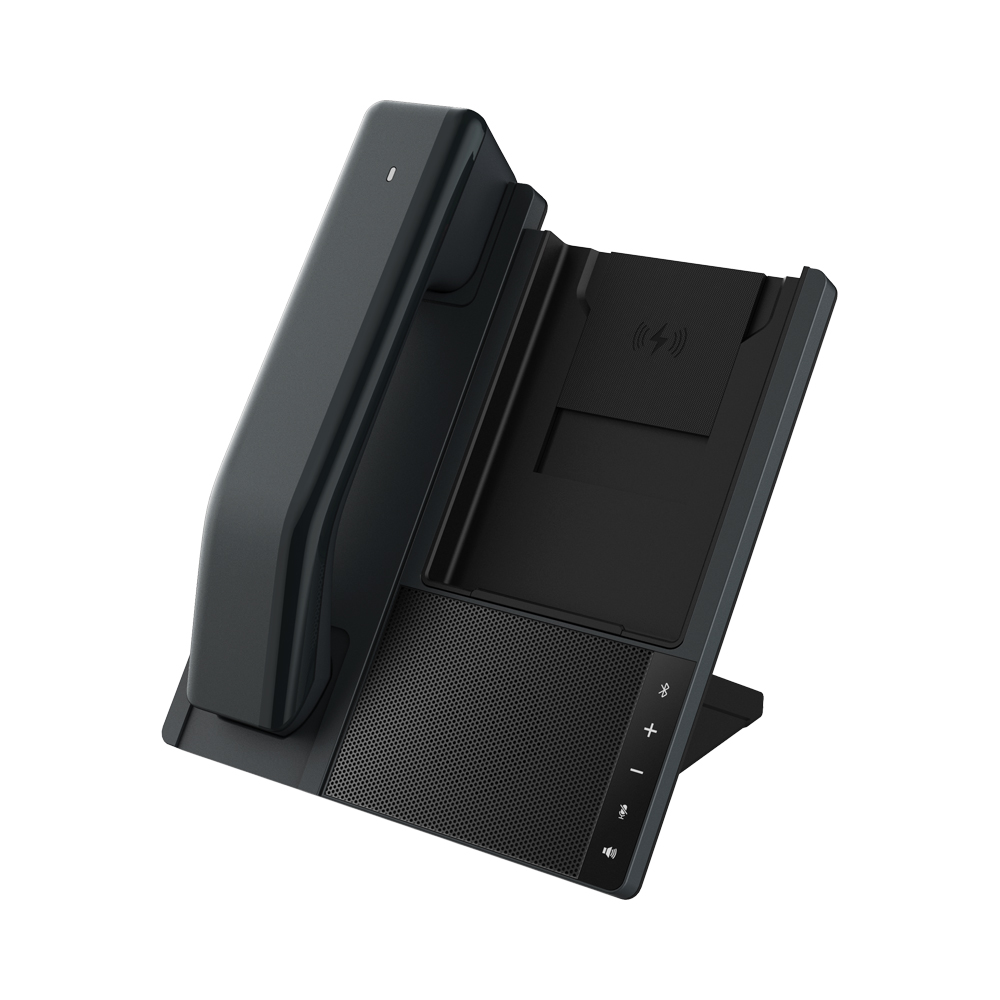

Fanvil DB20-H ALL-IN-ONE PHONE STATION WITH A WIRELESS HANDSET AND 10W WIRELESS PHONE CHARGER

Product Description

The Fanvil DB20-H ALL-IN-ONE PHONE STATION WITH A WIRELESS HANDSET AND 10W WIRELESS PHONE CHARGER is a high-performance solution from Fanvil, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES:
• All-in-One Design – Combines speakerphone, wireless handset and charging dock to reduce desk clutter
• Seamless Device Switching – Effortlessly switch between PC softphones and smartphone calls
• Wireless Handset with Bluetooth 5.4 – Reliable connection with up to 10m range and anti-interference performance
• Dual Microphone with ENC and ANS – Clear voice pickup with advanced noise reduction for improved call quality
• 10W Wireless Charging – Conveniently charge smartphones while working

Technical Specifications:
FEATURES:

• All-in-One Design – Combines speakerphone, wireless handset and charging dock to reduce desk clutter
• Seamless Device Switching – Effortlessly switch between PC softphones and smartphone calls
• Wireless Handset with Bluetooth 5.4 – Reliable connection with up to 10m range and anti-interference performance
• Dual Microphone with ENC and ANS – Clear voice pickup with advanced noise reduction for improved call quality
• 10W Wireless Charging – Conveniently charge smartphones while working
• USB Type-C Connectivity – Easy connection to PC for unified communication platforms
• Instant Access Controls – Quick buttons for call handling, volume, mute and Bluetooth
• Adjustable Tilt Stand – Optimised viewing angle for video calls and daily use

SPECIFICATIONS

BASE

• Microphone: 2× Omnidirectional Analogue Microphones
• Voice Pickup Range: 1.5m
• Sensitivity: -32dBFS
• Frequency Range: 45Hz~7kHz
• SNR: >65dB(A)
• Full Duplex: Supported
• Beamforming: Supported
• ENC: Environmental Noise Cancellation
• ANS: Adaptive Noise Suppression
• AGC: Automatic Gain Control
• Reverberation Reduction: Supported

SPEAKERPHONE

• Speaker Size: ø40mm
• Rated Power: 4Ω 3W
• Sensitivity: 87dB ±2dB
• Frequency Range: 195Hz~20kHz
• Impedance: 4Ω @1kHz
• Max Input Power: 5W
• Music Mode Bandwidth: 195Hz~20kHz
• Speak Mode Bandwidth: 195Hz~8kHz
• Audio Codec: SBC
• Power Supply: 12V 1.5A
• Power Consumption: Max. 18W

WIRELESS HANDSET

• Microphone: 1× Omnidirectional Analogue Microphone
• Sensitivity: -38dBFS
• Frequency Range: 45Hz~8kHz
• Battery Type: Lithium Polymer
• Battery Capacity: 300mAh
• Talk Time: up to 18 Hours
• Charging Time: 3.5 Hours
• Standby Time: up to 21 Hours (Auto Sleep After 10 Minutes)
• HAC: Hearing Aid Compatible

WIRELESS CHARGING

• Charging Coils: 1×
• Output Power: 10W
• Effective Charging Distance: 3~5mm (Centre Aligned)

CONNECTIVITY

• Base Connectivity: USB Type-C / Bluetooth
• Wireless Handset: Bluetooth
• Bluetooth Version: 5.4
• Profiles: A2DP, HSP, HFP
• Operating Range: up to 10m
• Pairing Capacity: up to 8 Devices
• Simultaneous Connections: 2×

PHYSICAL

• Dimensions:
– Base: 204.8 × 174.9 × 114.8mm
– Handset: 203.7 × 45.8 × 47mm
• Weight:
– Base: 561g
– Handset: 190g
• Operating Temperature: -10~60°C
• Operating Humidity: 10~95% RH
