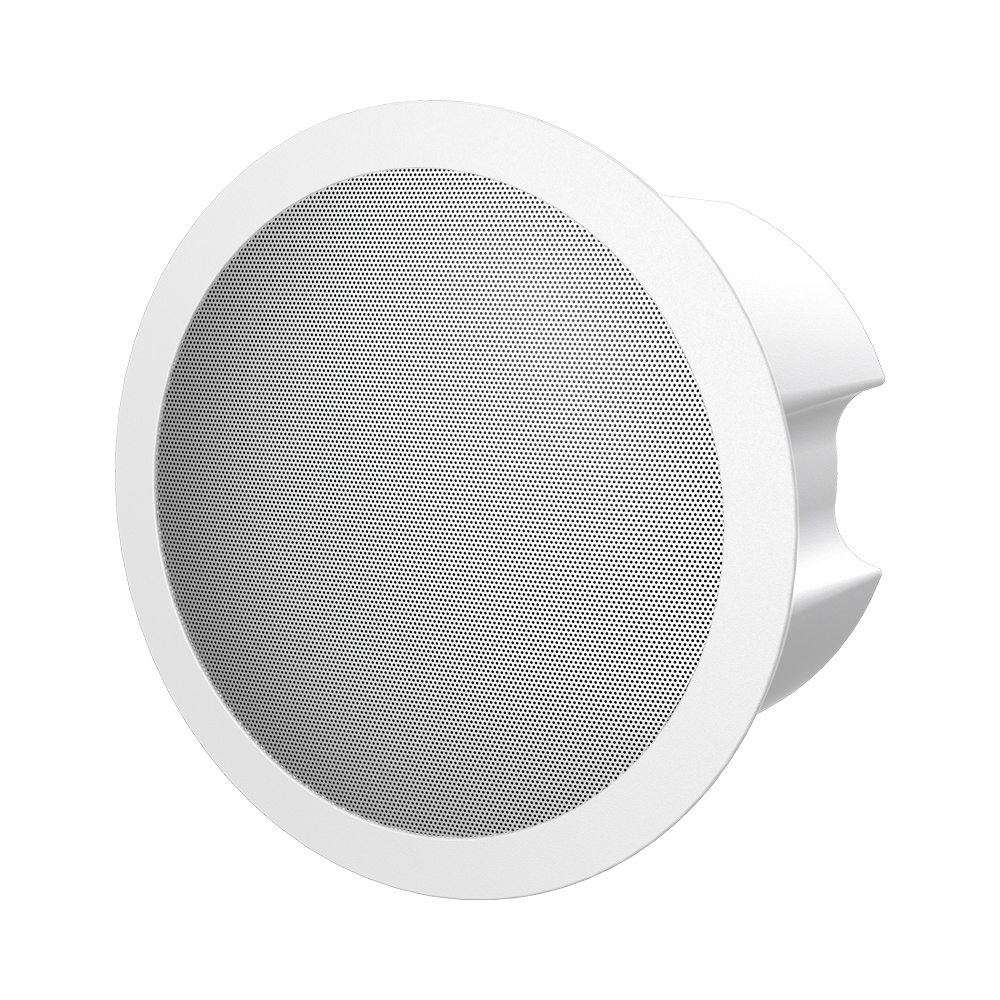

Fanvil FH-S01 SIP CEILING SPEAKER 20W PoE

Product Description

The Fanvil FH-S01 SIP CEILING SPEAKER 20W PoE is a high-performance solution from Fanvil, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• SIP ceiling‑mounted speaker with built‑in digital amplifier and speaker all‑in‑one
• Supports paging, multicasting (up to 10 multicast zones with prioritisation)
• High‑intelligibility audio supporting wideband codecs: G.722 & Opus
• Built‑in omnidirectional microphone for talk‑back/intercom functionality
• Support for emergency notifications / alarm linkage (custom WAV files, RS‑/relay inputs) and remote configuration via web interface

Technical Specifications:
FEATURES

• SIP ceiling‑mounted speaker with built‑in digital amplifier and speaker all‑in‑one
• Supports paging, multicasting (up to 10 multicast zones with prioritisation)
• High‑intelligibility audio supporting wideband codecs: G.722 & Opus
• Built‑in omnidirectional microphone for talk‑back/intercom functionality
• Support for emergency notifications / alarm linkage (custom WAV files, RS‑/relay inputs) and remote configuration via web interface
• PoE or DC power options; built‑in 10/100 Mbps Ethernet interface

SPECIFICATIONS

• Audio power: up to ~20 W with built‑in Class D amplifier
• Frequency response: ~100 Hz to 20 kHz (per one region spec)
• Sensitivity: ~89 dB ±3 dB at 1 m / 1 W
• Impedance: 8 Ω (per spec sheet) for speaker driver
• Network: 10/100 Mbps Ethernet, supports IPv4/IPv6, SIP 2.0 (RFC 3261)
• Power over Ethernet: IEEE 802.3af, Class 0
• Operating temperature: Approx −20 °C to +55 °C
• Mounting: Ceiling installation
