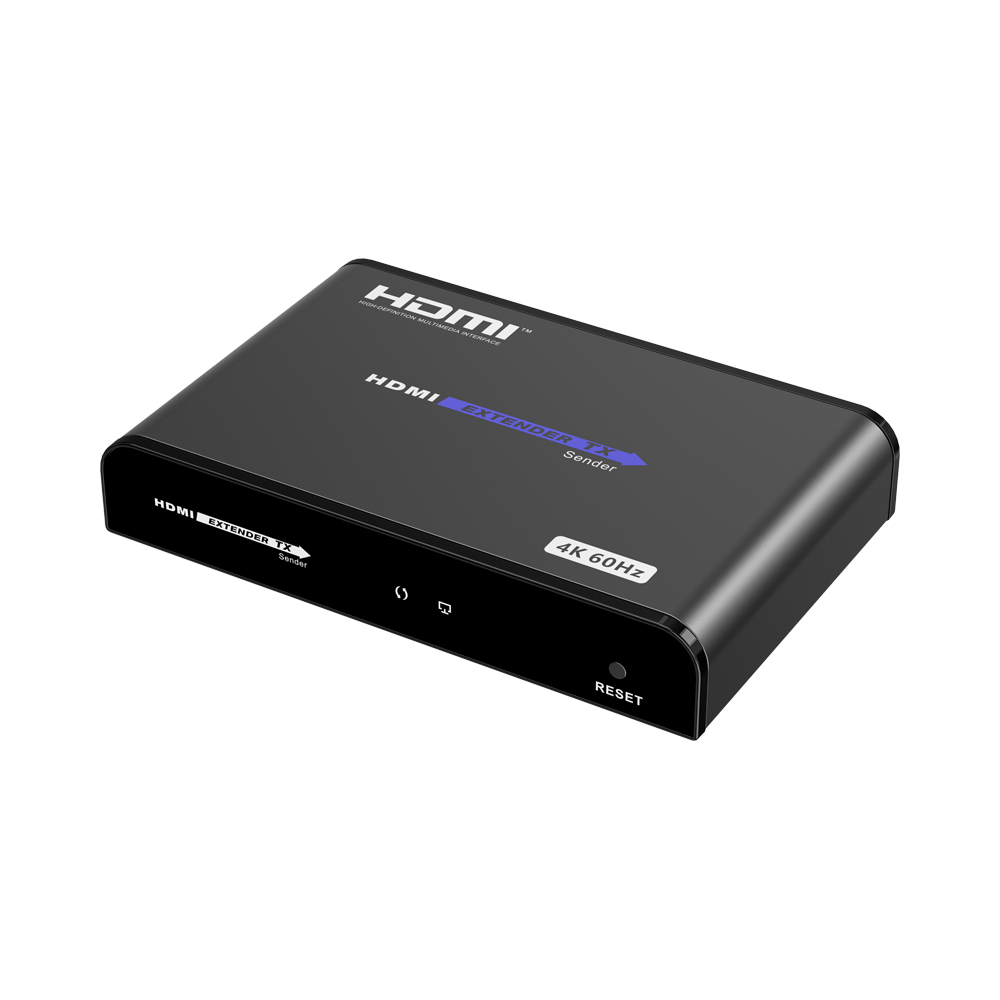

Lenkeng 120M 4K60HZ EXTENDER WITH IR

Product Description

The Lenkeng 120M 4K60HZ EXTENDER WITH IR is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• SPECIFICATIONS
• HDMI length: ≤5m
• Maximum Transfer Rate: 18Gbps
• Compatibility: HDMI 2.0，HDCP 1.4/HDCP 2.2
• Resolutions: 4096×2160@24/30/50/60Hz, 3840×2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920×1200, 1680×1050, 1600×900, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600
• Connection Types: One-to-One Connection, One-to-many connection

Technical Specifications:
SPECIFICATIONS

• HDMI length: ≤5m
• Maximum Transfer Rate: 18Gbps
• Compatibility: HDMI 2.0，HDCP 1.4/HDCP 2.2
• Resolutions: 4096×2160@24/30/50/60Hz, 3840×2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920×1200, 1680×1050, 1600×900, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600
• Connection Types: One-to-One Connection, One-to-many connection
• Transmission Distance: CAT5 80m / CAT5E 100m / CAT6 120m
• Transmission latency: 1080P – 80~130ms, 4K@60Hz – 150~220ms
• HDMI Output: LPCM 2.0
• IR receiving range: ≤ 5m
• IR frequency: 20kHz~60kHz
• Power Supply: DC 5V/1A
• Power Consumption: TX ≤ 3W, RX ≤ 3W
• Working temperature: – 20°C~60°C
• Storage temperature: – 30°C~70°C
• Humidity: 0~90%RH (No Condensation）
• Housing: Aluminium
• Weight: TX – 200g RX – 196g
• Colour: Black
• Dimensions (L x W x H): : 130.0 x 84.0 x 23.2mm
• Protection: ESD protection, 1a Contact discharge level 2 (±4KV), 1b Air discharge level 3 (±8KV), Implementation of the standard: IEC61000-4-2, Lightning protection, Surge protection
