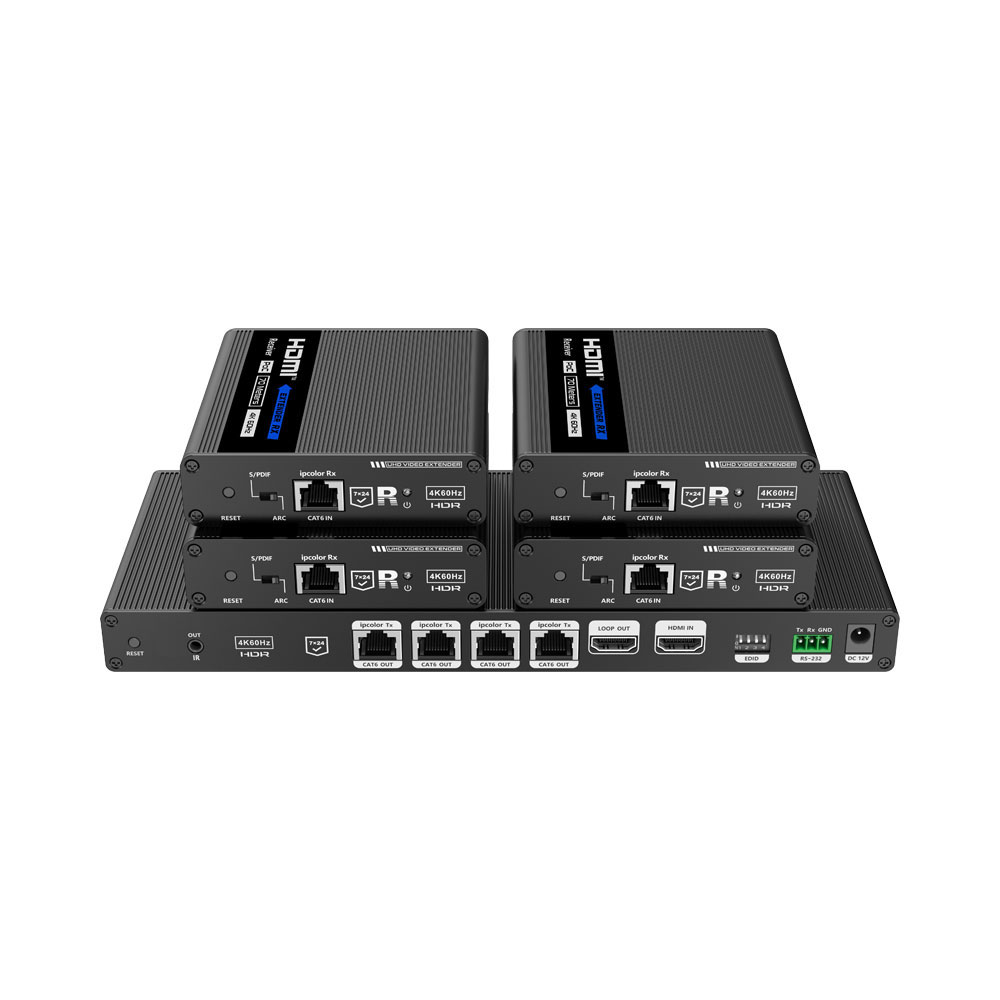

Lenkeng 1X4 HDMI 4K@60HZ SPLITTER

Product Description

The Lenkeng 1X4 HDMI 4K@60HZ SPLITTER is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Zero-Latency Transmission
• Split and Extend One HDMI Input Signal to Four Identical Network Output Signals
• Supports up to 4K @60Hz Resolution
• Transmission Distance up to 70m via CAT6/6A/7 Cables
• Supports IR Passback (20~60kHz)

Technical Specifications:
FEATURES

• Zero-Latency Transmission
• Split and Extend One HDMI Input Signal to Four Identical Network Output Signals
• Supports up to 4K @60Hz Resolution
• Transmission Distance up to 70m via CAT6/6A/7 Cables
• Supports IR Passback (20~60kHz)
• The Transmitter Supports HDMI Loop-Out
• The Receiver Can Output the Digital Audio of the TV or Source Device from the S/PDIF Port
• Supports EDID Passthrough or Manually Set the EDID of the Product
• Supports RS232 Command Control
• Surge, Lightning and ESD Protection
• Equipped With Rackmount Ears
• Supports PoC – Only the Transmitter Requires a Power Supply

SPECIFICATIONS

• Transmission Protocol: ipcolor
• Distribution Mode: 1-In, 4-Out
• Transmission Distance over CAT6/6A/7: up to 70m
• HDMI Signal Standard: HDMI 2.0, HDCP 2.2
• Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @24/25/30/50/60Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600, 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25Hz
• Supported Audio Formats: LPCM, DTS‑HD, DTS‑Audio, Dolby Digital 5.1
• IR Passback: Supported (20~60kHz)
• RS232 Control: Supported 3‑Pin (TxD, RxD, GND)
• Working Temperature: –20~60°C
• Storage Temperature: –30~70°C
• Humidity (No Condensation): 0~90% RH
• Power Supply (Transmitter): DC 12V 3A
• Power Consumption: Transmitter <13W, Receiver <4W
• Material: Aluminium-Alloy
• Colour: Black
• Weight: Transmitter 640g, Receiver 210g
• Dimensions: Transmitter 264 × 104 × 23.5mm, Receiver 106 × 99 × 26.2mm
• Protection: ESD Protection (Contact Discharge Level 2, Air Discharge Level 3), Lightning Protection, Surge Protection
