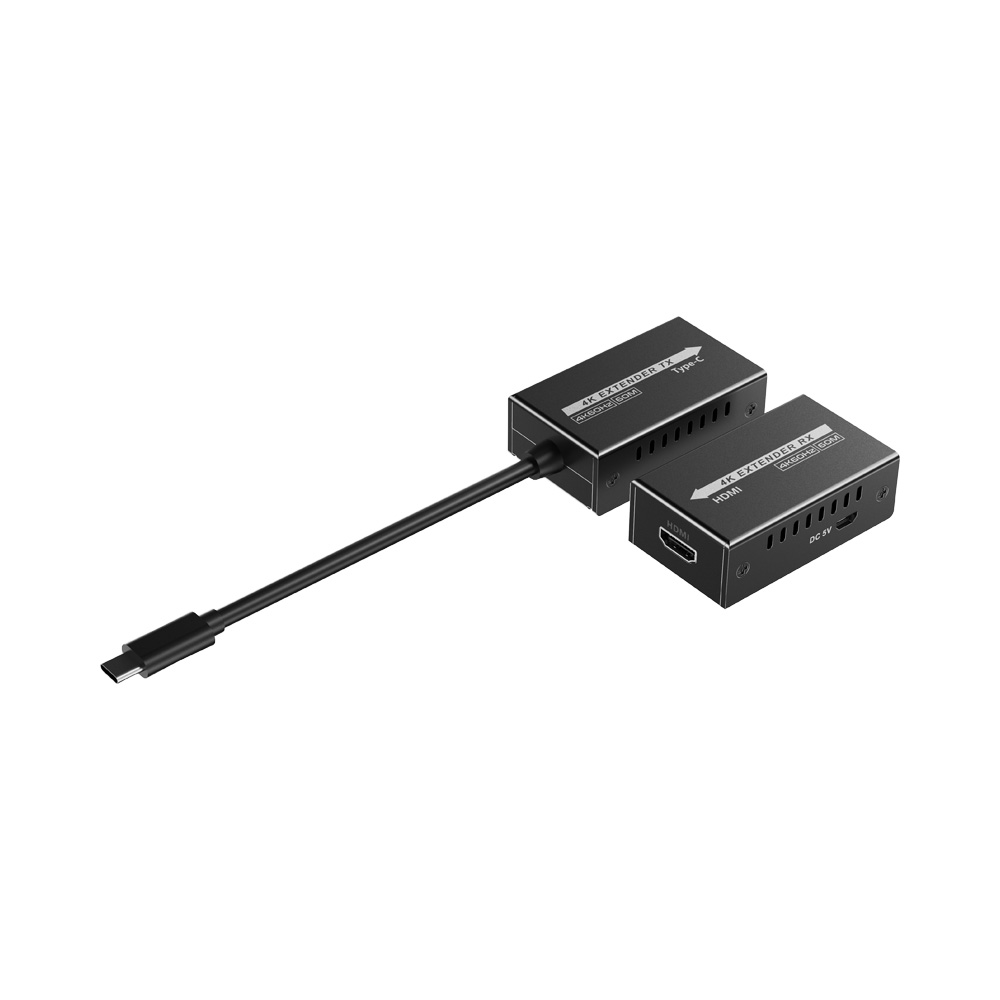

Lenkeng 4K@60HZ USB-C TO HDMI EXTENDER,60M

Product Description

The Lenkeng 4K@60HZ USB-C TO HDMI EXTENDER,60M is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Zero Latency Transmission
• Supports up to 4K @120Hz Resolution
• Compatible with CAT6/6A/7 Network Cable
• Transmission Distance up to 60m for 4K @60Hz and 25m for 4K @100/120Hz
• Supports HDR10

Technical Specifications:
FEATURES

• Zero Latency Transmission
• Supports up to 4K @120Hz Resolution
• Compatible with CAT6/6A/7 Network Cable
• Transmission Distance up to 60m for 4K @60Hz and 25m for 4K @100/120Hz
• Supports HDR10
• EDID Passthrough and Self-Adaptive Display on Resolutions
• Type-C Input and HDMI Output
• The Transmitter Can Take Power from the Source Signal Device through the Type-C Port

SPECIFICATIONS

• Voltage: TX Powered by the Signal Source, RX DC 5V 500mA
• Power Consumption: TX <3W, RX <3W
• HDMI Version: HDMI 2.0
• HDCP Version: HDCP 2.2, HDCP 1.4
• Max. Transmission Rate: 18Gbps
• Supported Resolutions: 1280×720, 1280×960, 1366×768, 1440×900, 1680×1050, 1920×1080, 1920×1200, 720p @50/60Hz, 1080i @50/60Hz, 1080p @24/25/30/50/60/120Hz, 2560×1440 @50/60/120/144Hz, 3840×2160 @24/25/30/50/60/100/120Hz, 4096×2160 @24/25/30/50/60Hz
• TMDS Signal: 0.7~1.2Vp-p (TMDS)
• DDC Signal: 5Vp-p (TTL)
• CAT6/6A/7 Transmission Distances: 4K @60Hz up to 60m, 2560×1440 @120/144Hz up to 30m, 4K @100/120Hz up to 25m
• Supported Audio Formats: PCM, DTS, Dolby
• HDR10: Supported
• HDMI 3D: Supported
• EDID Passthrough: Supported with Auto Downscaling
• Working Temperature: -20~55°C
• Storage Temperature: -30~60°C
• Humidity Tolerance: 0~90% RH (No Condensation)
• Material: ABS
• Colour: Black
• Dimensions (L × W × H): 67 × 38 × 21mm
• Weight: TX 85g, RX 72g
• ESD Protection: 1a Contact Discharge Level 2 (±4KV), 1b Air Discharge Level 3 (±8KV), Standard IEC61000-4-2
