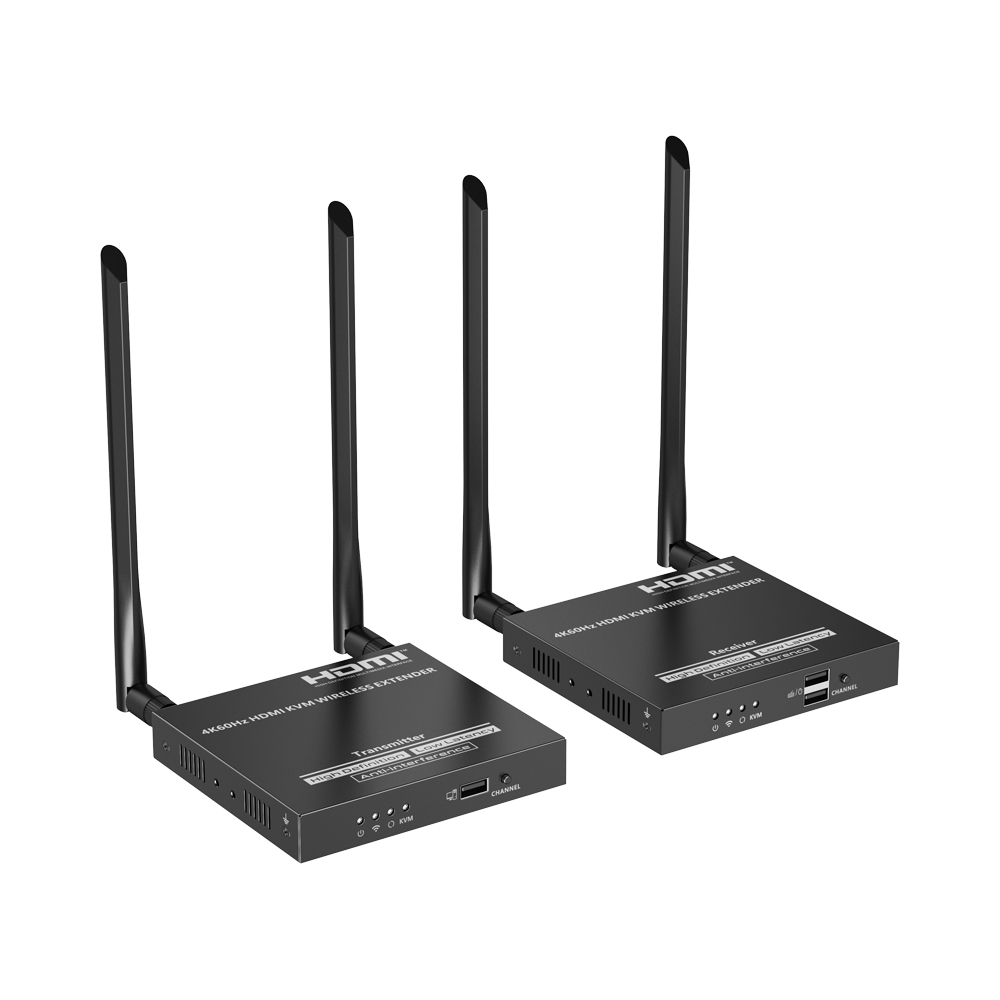

Lenkeng 4K@60HZ W/LESS HDMI KVM EXTEND(LKV699KVM-V

Product Description

The Lenkeng 4K@60HZ W/LESS HDMI KVM EXTEND(LKV699KVM-V is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• ipcolor STREAM Technology – Enables high-definition, low-latency wireless video transmission
• Ultra HD Resolution Support – Supports up to 4096×2160 @60Hz with backward compatibility
• Flexible Wireless Distribution – Supports 1-to-4 wireless transmission with up to 50m line-of-sight range in 1-to-1 mode
• HDMI Loop-Out on Transmitter – Allows local display monitoring while transmitting wirelessly
• SSID Pairing and Channel Switching – Prevents interference when multiple systems operate in the same area

Technical Specifications:
FEATURES

• ipcolor STREAM Technology – Enables high-definition, low-latency wireless video transmission
• Ultra HD Resolution Support – Supports up to 4096×2160 @60Hz with backward compatibility
• Flexible Wireless Distribution – Supports 1-to-4 wireless transmission with up to 50m line-of-sight range in 1-to-1 mode
• HDMI Loop-Out on Transmitter – Allows local display monitoring while transmitting wirelessly
• SSID Pairing and Channel Switching – Prevents interference when multiple systems operate in the same area
• IR Passback Support – Enables remote control of source devices from the display location
• 5.0GHz Wireless Band – Delivers strong anti-interference performance and stable transmission
• KVM Control Signal Passback – Supports keyboard and mouse control at the receiver end
• Touch Screen Support – Enables interactive display applications
• Firmware Upgrade via Micro USB – Allows easy updates and feature enhancements
• Designed for 24/7 Operation – Built for stable continuous professional use

SPECIFICATIONS

• Voltage/Current: DC 5V 2A
• Power Consumption: TX ≤5W, RX ≤4W
• HDMI Version: HDMI 2.0
• HDCP Version: HDCP 1.4, HDCP 2.2
• Maximum Transfer Rate: 18Gbps
• Resolution Supported: 4096×2160 @24/30/50/60Hz, 3840×2160 @24/30/50/60Hz, 1080p @50/60Hz, 720p @50/60Hz, 1920×1200
• Input and Output TMDS Signal: 0.7~1.2Vp-p (TMDS)
• Input and Output DDC Signal: 5Vp-p (TTL)
• Wi-Fi Frequency Bands: 5.18~5.24GHz
• Transmission Distance: One-to-One ≤50m, One-to-Two ≤30m, One-to-Three ≤20m, One-to-Four ≤15m
• Latency: 4K @60Hz: 120~180ms, 1080p @60Hz: 70~120ms (For reference only, delays may vary depending on the resolution, transmission distance and connection capacity)
• Connection Types: One-to-One, One-to-Two, One-to-Three, One-to-Four
• SSID Pairing: Supported
• ESD Protection: 1a Contact discharge Level 3, 1b Air discharge Level 3 (IEC61000-4-2), Lightning and Surge Protection
• Infrared Frequency: 20~60kHz
• Receiving Range: ≤5m
• Working Temperature: -20~60°C
• Storage Temperature: -30~70°C
• Humidity (No Condensation): 0~90% RH
• Dimensions (W × L × H): TX 115 × 125 × 20.6mm, RX 115 × 125 × 20.6mm
• Colour: Black
• Material: Metal
• Net Weight: TX 349g, RX 326g
