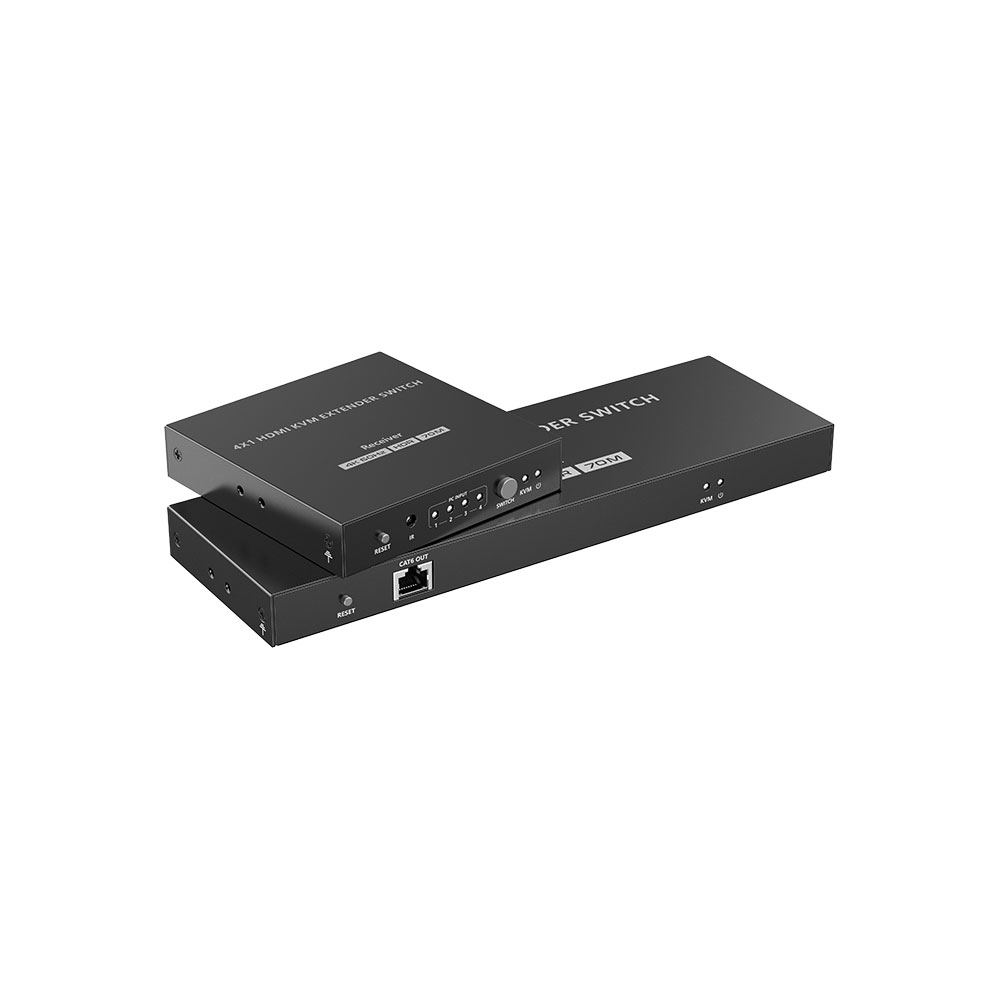

Lenkeng 4X1 – 70M HDMI KVM EXTENDER SWITCH

Product Description

The Lenkeng 4X1 – 70M HDMI KVM EXTENDER SWITCH is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 4K @60Hz Resolution and Backwards Compatibility
• Supports 4× HDMI Signal Input and Extends the HDMI Signal up to 70m via CAT6 and Above Network Cables
• RJ45 Output to Transmit HDMI Signals to Receiver
• Multiple Switching Modes: IR Remote Control, Button or RS232
• Supports KVM Control Signal Passback

Technical Specifications:
FEATURES

• 4K @60Hz Resolution and Backwards Compatibility
• Supports 4× HDMI Signal Input and Extends the HDMI Signal up to 70m via CAT6 and Above Network Cables
• RJ45 Output to Transmit HDMI Signals to Receiver
• Multiple Switching Modes: IR Remote Control, Button or RS232
• Supports KVM Control Signal Passback
• EDID Passthrough and Auto Downscaling
• HDR10 Supported
• Lightning, Surge and ESD Protection

SPECIFICATIONS

• Voltage/Current: DC 5V 1A
• Power Consumption: TX <4W, RX <4W
• HDMI Compliance: HDMI 2.0 (HDR, YUV 4:4:4)
• HDCP Compliance: HDCP 2.2 and HDCP 1.4
• Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600, 3440×1440, 2560×1600, 2560×1440, 1920×1200
• Supported Audio Formats: LPCM 7.1 / DTS-HD / DTS-Audio / Dolby Digital Plus / Dolby TrueHD 5.1 / Dolby Digital / Dolby Atmos
• Transmission Speed: 18Gbps
• Video Bandwidth: 600MHz
• HDMI Port: 4× HDMI Input
• RJ45 Port: 1× RJ45 Output
• RS232 Interface: 3-Pin (GND / RxD / TxD), Baud Rate 9600
• CAT6/6A/7 Transmission Distance: ≤70m (for Supported Resolutions)
• Electrostatic / Lightning / Surge Protection: Full-Device ESD Protection, Contact Discharge ±4kV, Air Discharge ±8kV (per IEC61000-4-2 Standard)
• Working Temperature Range: –20~60°C
• Storage Temperature Range: –30~70°C
• Humidity (No Condensation): 0–90% RH
• Housing Material: Metal
• Colour: Black
• Dimensions: Transmitter 250 × 80 × 25mm, Receiver 106 × 103 × 25mm
• Weight: Transmitter 298g, Receiver 298g
