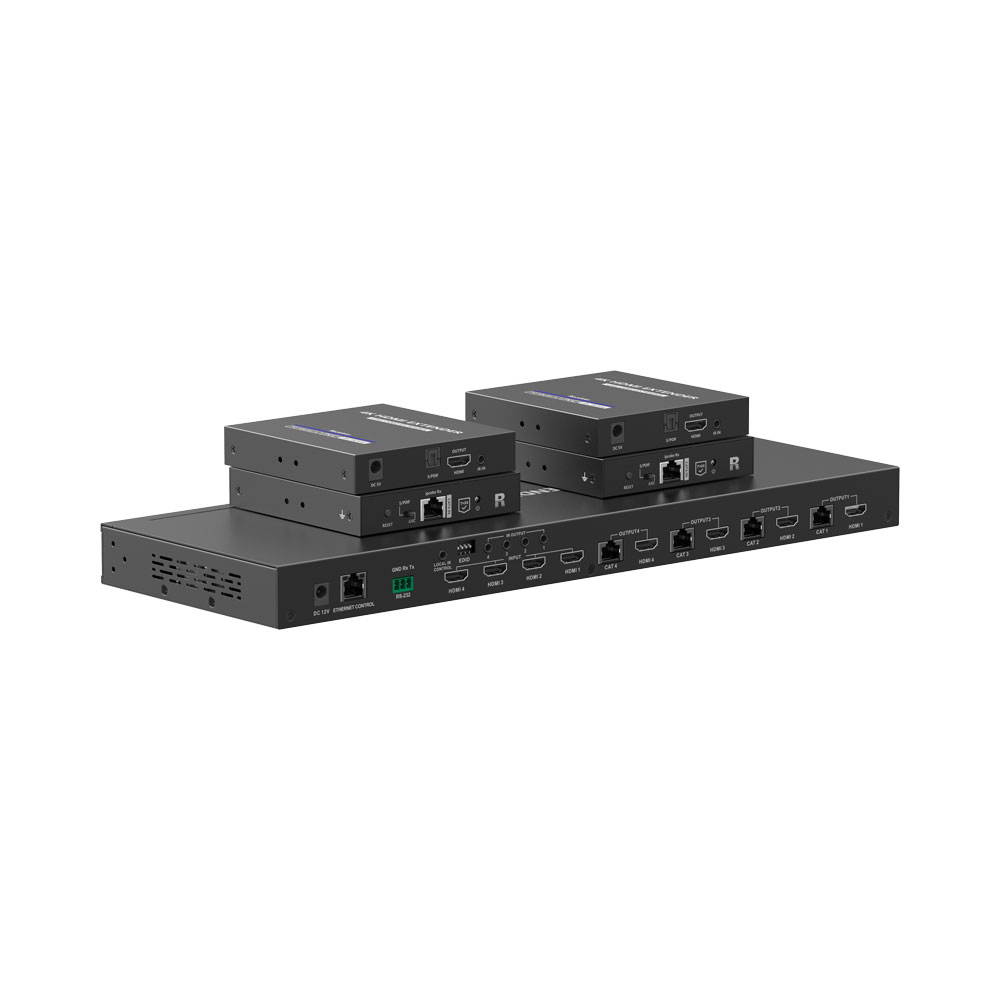

Lenkeng 4X4 HDMI MATRIX EXTENDER SWITCHER 4K@60HZ

Product Description

The Lenkeng 4X4 HDMI MATRIX EXTENDER SWITCHER 4K@60HZ is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• ipcolor IMAGE
• 4× HDMI Sources to 4× HDMI Displays
• 4× HDMI Loop-Outs
• Distance up to 70m – 4K @60Hz (4:4:4)
• IR Passback Function

Technical Specifications:
FEATURES

• ipcolor IMAGE
• 4× HDMI Sources to 4× HDMI Displays
• 4× HDMI Loop-Outs
• Distance up to 70m – 4K @60Hz (4:4:4)
• IR Passback Function
• Power-over-Cable
• Multiple Control Methods

SPECIFICATIONS

• HDMI Version: HDMI 2.0
• HDCP Version: HDCP 2.2, HDCP 1.4
• Transmission Media: CAT6 / CAT6A / CAT7
• Transmission Distance: up to 70 m
• Video Bandwidth: 600MHz (18Gbps)
• Supported Resolutions: 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25Hz, 1080i @50/60Hz, 1080p @50/60Hz, 720p @50/60Hz; 576i/p; 480i/p; plus a Wide Range of Non‑HD and Wide‑Format Resolutions (3440×1440, 2560×1440, 2560×1080, 2048×1080, 1920×1440, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600)
• HDR10 Support: Yes
• HDMI Loop‑Out: Transmitter Supports Loop‑Out
• IR Passback: Supported (Unidirectional)
• S/PDIF Audio Separation: Receiver Supports S/PDIF Audio Output
• EDID DIP Switch: Transmitter Supports EDID Configuration
• Audio Formats Supported: LPCM, DTS‑HD, DTS‑Audio, Dolby Digital 5.1CH, Dolby Atmos
• Input TMDS Signal: 0.5~1.2Vp‑p
• Input DDC Signal: 5Vp‑p
• Control Interfaces: RS232 Control, Ethernet Control, Front‑Panel Button Control, Remote Control
• Power-over-Cable (PoC): Power Supplied from Transmitter to Receivers
• Case Material: Metal
• Colour: Black
• Dimensions: Transmitter 411×147×29mm, Receiver 105.5×20.5×20mm
• Weight: Transmitter 1,530g, Receiver 243g
• Power Supply: DC 12V 3A
• Power Consumption: Transmitter and Receiver ≤30W
• Operating Temperature: –20~60°C
• Storage Temperature: –30~70°C
• Humidity: 0–90% RH (Non‑Condensing)
• Protection: ESD Protection (Contact Discharge Level 2 ±4kV; Air Discharge Level 3 ±8kV), Lightning Protection, Surge Protection
