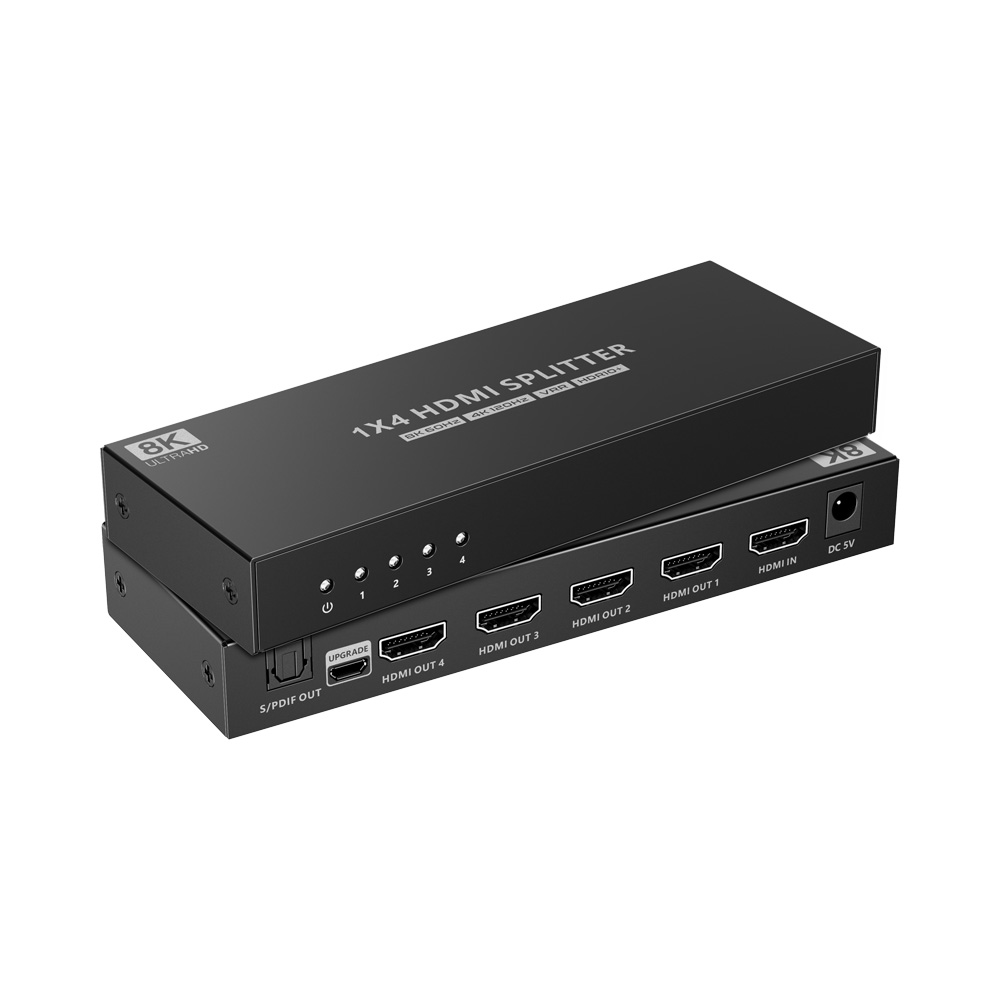

Lenkeng 8K HDMI 1X4 SPLITTER

Product Description

The Lenkeng 8K HDMI 1X4 SPLITTER is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 8K @60Hz and 4K @120Hz
• Free Sync and G-Sync VRR (Variable Refresh Rate)
• HDR10+
• S/PDIF Out
• IR Passback Function

Technical Specifications:
FEATURES

• 8K @60Hz and 4K @120Hz
• Free Sync and G-Sync VRR (Variable Refresh Rate)
• HDR10+
• S/PDIF Out
• IR Passback Function
• EDID Management

SPECIFICATIONS

• HDMI Input: 1× HDMI
• HDMI Output: 4× HDMI
• Compatibility: HDMI 2.1, HDMI 2.0, HDMI 1.4; HDCP 2.3, HDCP 2.2, HDCP 1.4
• Maximum Transmission Rate: 48Gbps
• Supported Resolutions: 7680×4320 @24/25/30/50/60Hz, 3840×2160 @24/25/30/50/60/120Hz, 1080p @24/25/30/50/60/120Hz, 720p @50/60/100/120Hz
• Video Signal Features: EDID Passthrough, Auto Downscaling, HDR10 / HDR10+ / Dolby Vision, HDMI 3D, HDMI CEC, VRR (FreeSync / G‑Sync)
• Audio Output: S/PDIF Output and HDMI Output – Supports Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD, LPCM 7.1CH, Dolby Digital 7.1CH, etc.
• Power Supply: DC 5V 2A
• Power Consumption: <6W
• Operating Temperature: –20~60°C
• Storage Temperature: –30~70°C
• Humidity Range: 0~90% RH (Non‑Condensing)
• Housing Material: Metal
• Colour: Black
• Dimensions (L × W × H): 160 × 58 × 16.5mm
• Weight: 252g
• Protection: ESD Protection (Contact Discharge ±4kV, Air Discharge ±8kV, Implementation of the Standard IEC 61000‑4-2), Lightning Protection, Surge Protection
