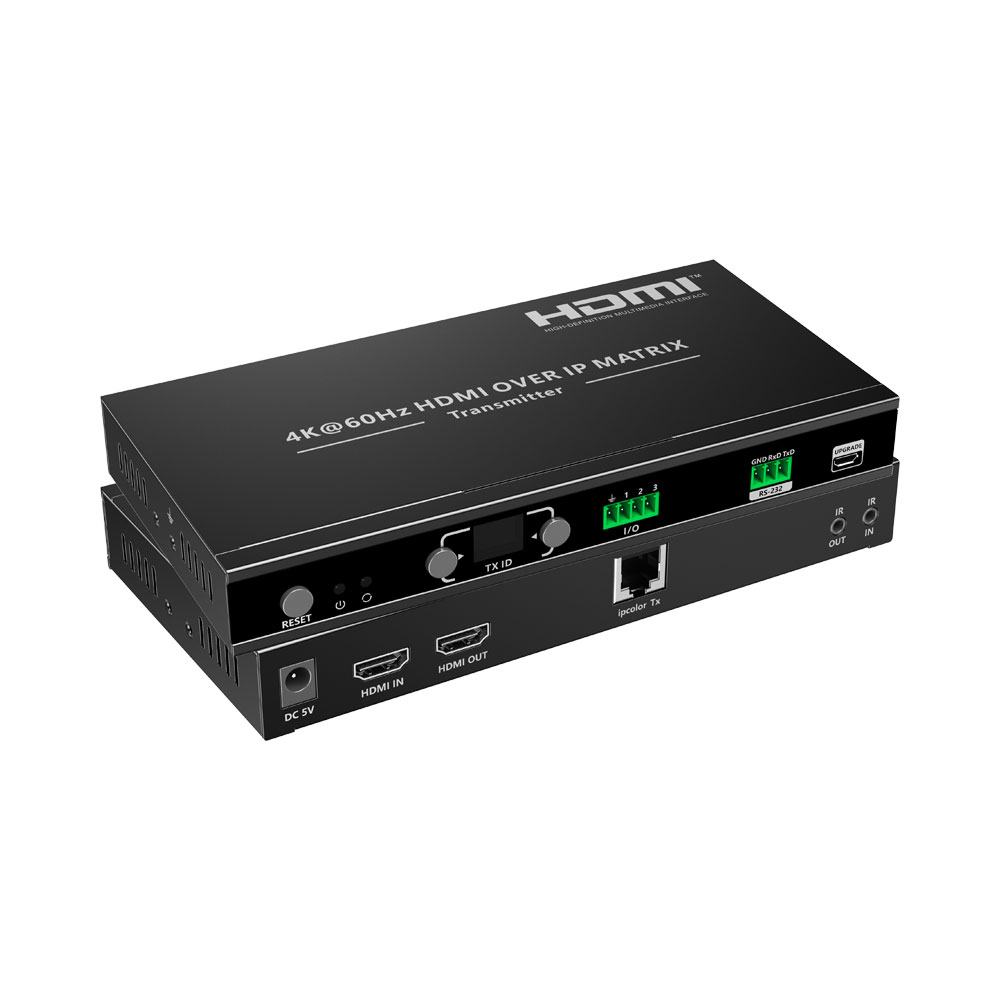

Lenkeng HDMI MATRIX EXTENDER SENDER

Product Description

The Lenkeng HDMI MATRIX EXTENDER SENDER is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Built on ipcolor STREAM technology to deliver high-definition and low-latency transmission
• Supports up to 3840×2160 @60Hz resolution, backwards compatible
• Compatible with CAT5e/6 or higher-level networking cables, transmission distance of CAT6 cable is 120m
• Supports One-to-One or Many-to-Many connections through a Gigabit switch
• Supports RS232 passthrough and control

Technical Specifications:
FEATURES

• Built on ipcolor STREAM technology to deliver high-definition and low-latency transmission
• Supports up to 3840×2160 @60Hz resolution, backwards compatible
• Compatible with CAT5e/6 or higher-level networking cables, transmission distance of CAT6 cable is 120m
• Supports One-to-One or Many-to-Many connections through a Gigabit switch
• Supports RS232 passthrough and control
• The transmitter supports HDMI loop out
• Supports bi-directional IR pass-back (20~60KHz)
• Supports IR learning remote and control device by App
• Supports I/O interface control
• Supports POE (Power over Ethernet)
• Creating multi-screen splicing with up to 5×5 (also includes: 1×1/1×2/1×3/1×4/1×5/2×1/2×2/2×3/2×4/2×5/3×1/3×2/3×3/3×4/3×5/4×1/4×2/4×3/4×4/4×5/5×1/5×2/5×3/5×4/5×5) video wall through switch and controlled by App
• Supports 256 signal source inputs and 256 signal outputs, providing flexible Many-to-Many matrix configuration (requires App control operation while connecting more than 100 TX-to-RXs)
• Firmware upgrading via Micro USB port
• Lightning protection, surge protection, ESD protection
• Supports stable 24/7 operation

SPECIFICATIONS

• HDMI Length: ≤5m
• Maximum Transfer Rate: 18Gbps
• Compatibility: HDMI 2.0，HDCP 1.4 / HDCP 2.2
• Resolutions: 4096×2160 @24/30Hz, 3840×2160 @24/30/50/60Hz, 1080p @50/60Hz,720p @50/60Hz, 1920×1200 @60Hz, 2560×1440 @60Hz
• Connection Types:
One-to-One
Many-to-Many
Switch Cascading
• Transmission Distance: CAT5 80m / CAT5e 100m / CAT6 120m
• Transmission Latency:
4K @60Hz (130~200ms)
1080p @60Hz (70~130ms)
• HDMI Output: LPCM 2.0
• IR Receiving Range: ≤5m
• IR Frequency: 20kHz~60kHz
• RS232 (GND/RXD/TXD): Default Baud Rate:
115200
Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
• Power Supply: TX/RX: DC 5V 2A (Alternative)
• Power Consumption:
TX ≤5.5W
RX ≤3.5W
• Working Temperature: -20~60°C
• Storage Temperature: -30~70°C
• Humidity: 0~90% RH (No Condensation）
• Housing: Metal
• Weight:
TX：523g
RX：514g
• Colour: Black
• Dimensions (L × W × H): 191 × 96 × 25mm
• Protection:
ESD Protection
1a Contact Discharge Level 2 (±4KV)
1b Air Discharge Level 3 (±8KV)
Implementation of the Standard: IEC61000-4-2
Lightning Protection, Surge Protection
