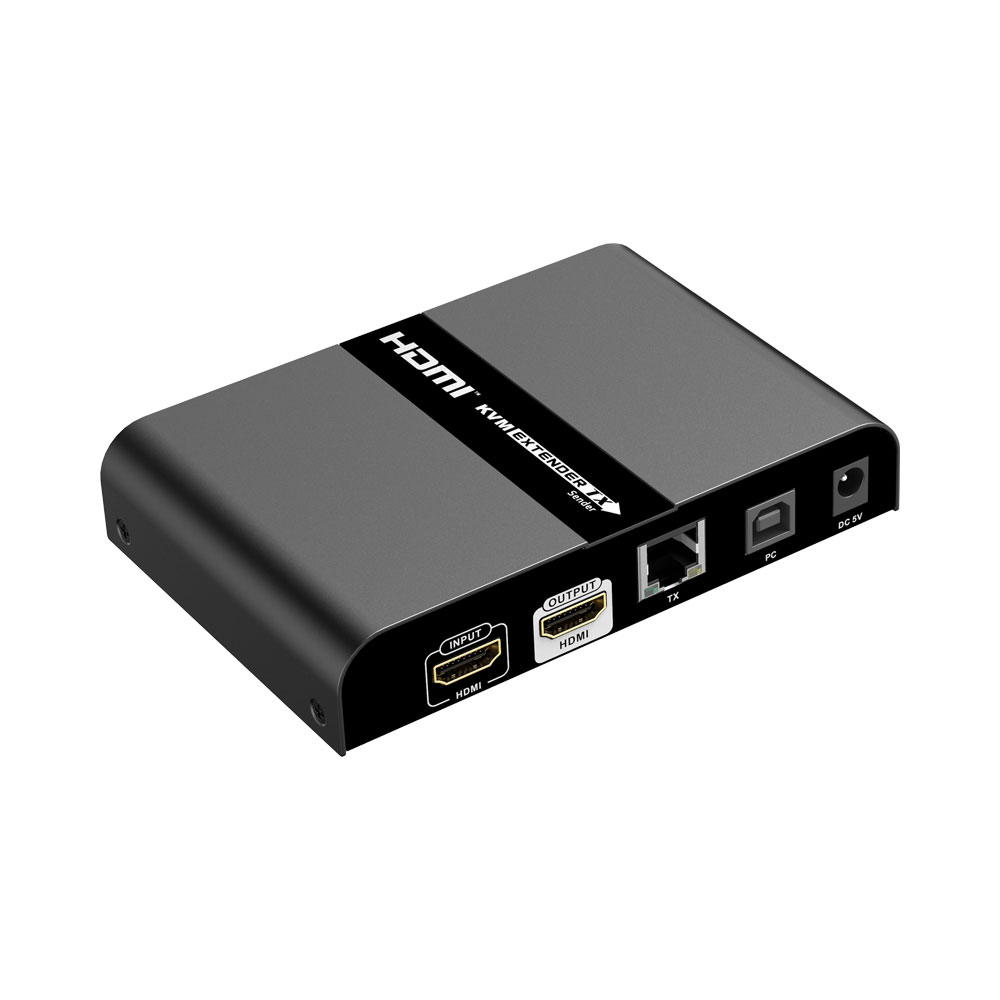

Lenkeng LKV671KVM 100M 4K @30HZ HDMI KVM EXTENDER OVER CAT6/6A/7 CABLE- TRANSMITTER

Product Description

The Lenkeng LKV671KVM 100M 4K @30HZ HDMI KVM EXTENDER OVER CAT6/6A/7 CABLE- TRANSMITTER is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Point-to-Point and One-to-Many
• Near Zero Latency
• Distance up to 100m – 4K @30Hz
• HDCP2.2
• HDMI Loop-Out

Technical Specifications:
FEATURES

• Point-to-Point and One-to-Many
• Near Zero Latency
• Distance up to 100m – 4K @30Hz
• HDCP2.2
• HDMI Loop-Out
• Supports EDID Passback
• Supports KVM Function

SPECIFICATIONS

• Power Supply: DC5V 1A
• Power Consumption: TX <3W, RX <2W
• HDMI Compliance: HDMI 1.4
• HDCP Compliance: HDCP 2.2
• Supported Resolutions: 800×600 @60Hz, 1024×768 @60Hz, 1280×720 @60Hz, 1280×800 @60Hz, 1280×1024 @60Hz, 1440×900 @60Hz, 1680×1050 @60Hz, 1920×1080 @60Hz, 2560×1080 @60Hz, 3840×2160 @30Hz, And 4096×2160 @30Hz
• Supported Audio Formats: PCM, LPCM, Dolby, DTS
• Max. Transfer Rate: 10.2Gbps
• Input and Output TMDS Signal: 0.7~1.2Vp-p (TMDS)
• Input and Output DDC Signal: 5Vp-p (TTL)
• Supported Input Cable Length: ≤5m (AWG24)
• Supported Output Cable Length: ≤5m (AWG24)
• Transmission Length Over CAT6/6A/7: 100m
• Electrostatic Protection: Contact Discharge Level 3 And Air Discharge Level 3 (IEC61000-4-2 Standard)
• Working Temperature: 0~60°C
• Storage Temperature: -10~70°C
• Humidity Tolerance (No Condensation): 0~90%
• Dimensions (L×W×H): 132.37×89.70×24.90mm
• Material: Metal-Alloy with a Crystal Panel
• Surface Finish: Powder Coating
• Colour: Black
• Weight: TX 320g, RX 310g
