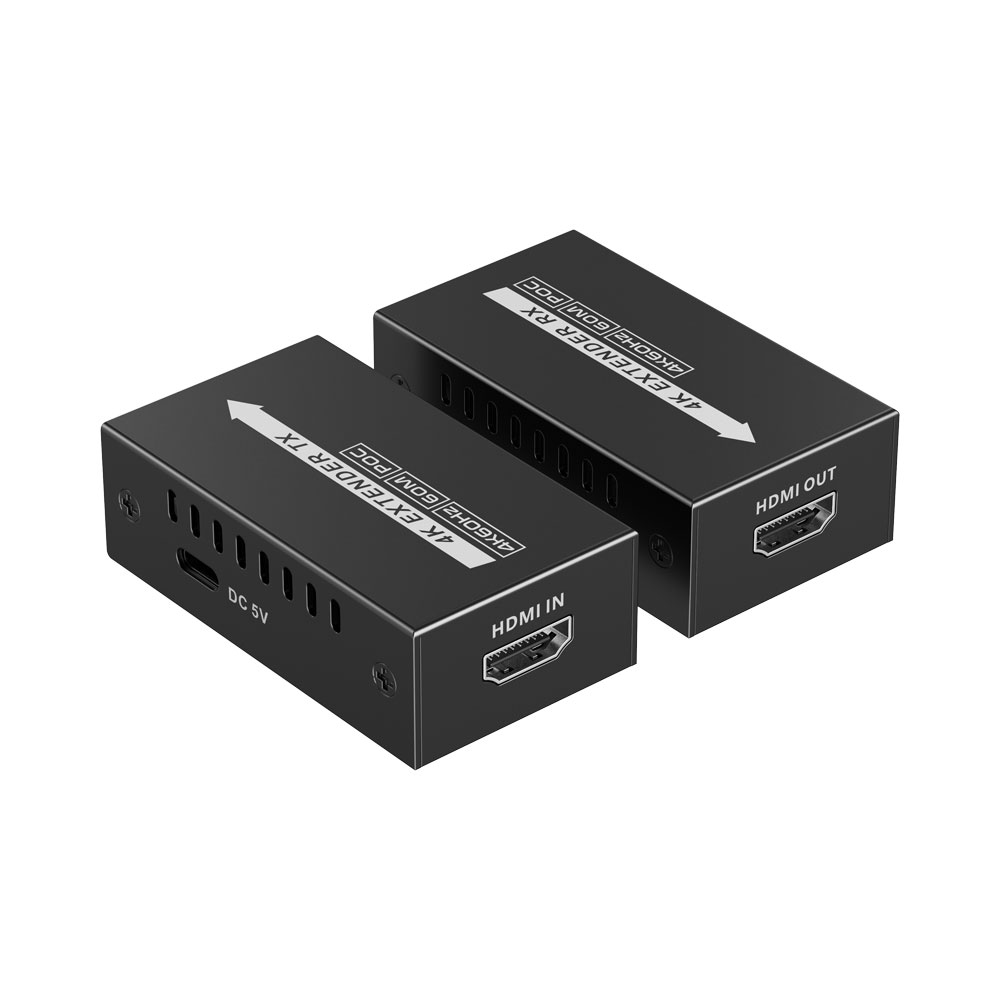

Lenkeng SUPER MINI HDMI OVER SINGLE CAT6 EXT 60M

Product Description

The Lenkeng SUPER MINI HDMI OVER SINGLE CAT6 EXT 60M is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Zero Latency Transmission
• Extends 4K @60Hz (3840 × 2160) HDMI up to 60m Over CAT6/6A/7 Cable
• Supports HDR10
• Supports EDID Passthrough and Auto Downscaling
• Lightning, Surge and ESD Protection

Technical Specifications:
FEATURES

• Zero Latency Transmission
• Extends 4K @60Hz (3840 × 2160) HDMI up to 60m Over CAT6/6A/7 Cable
• Supports HDR10
• Supports EDID Passthrough and Auto Downscaling
• Lightning, Surge and ESD Protection
• Supports PoC Network Cable Power Supply
• Only the Transmitter Requires a Power Supply

SPECIFICATIONS

• Maximum Transfer Rate: 18Gbps
• Maximum Transmission Bandwidth: 600MHz
• EDID Passthrough: Yes
• Compatibility: HDMI 2.0 (Deep Colour, 4K, HDR, YUV 4:4:4), HDCP 2.2
• Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1920×1200, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
• Transmission Distance: CAT6/6A/7 ≤60m
• Audio Formats: LPCM / DTS 5.1 / Dolby Digital 5.1CH
• Power Supply: Transmitter: DC 5V 2A, Receiver: PoC (Powered by Transmitter)
• Power Consumption (TX + RX): Less Than 5W
• Working Temperature: –20~60°C
• Storage Temperature: –30~70°C
• Humidity (No Condensation): 0~90% RH
• Housing Material: Metal
• Weight: Transmitter: 92g, Receiver: 91g
• Colour: Black
• Dimensions (L × W × H): 67 × 40 × 23mm
• Protection: ESD Protection (Contact Discharge ±4kV, Air Discharge ±8kV per IEC61000-4-2 Standard), Lightning Protection, Surge Protection
