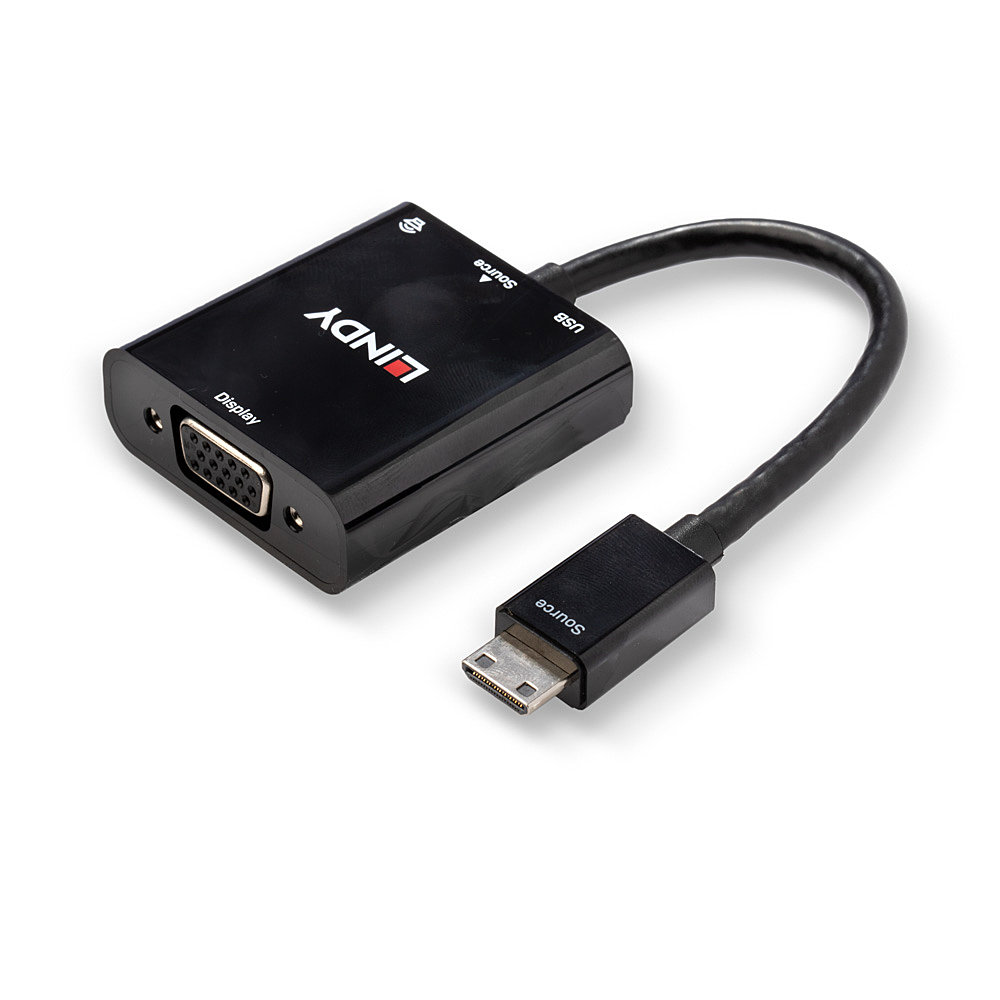

Lindy MINI HDMI TO VGA CONVERTER (38286)

Product Description

The Lindy MINI HDMI TO VGA CONVERTER (38286) is a high-performance solution from Lindy, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Connects an Mini HDMI equipped device to a VGA display and analogue speakers
• Supports resolutions up to 1920×1200 including 1080p
• Direct signal conversion, without scaling
• Compact dimensions for easy installation and use
• SPECIFICATIONS

Technical Specifications:
FEATURES

• Connects an Mini HDMI equipped device to a VGA display and analogue speakers
• Supports resolutions up to 1920×1200 including 1080p
• Direct signal conversion, without scaling
• Compact dimensions for easy installation and use

SPECIFICATIONS

• AV Interface: HDMI to VGA and 3.5mm Stereo Audio
• Interface Standard: HDMI 1.3, VGA
• Supported Bandwidth: 180MHz
• Maximum Input Resolution: 1920×1200
• Maximum Output Resolution: 1920×1200 @60Hz
• Chipset: Algoltek AG6200A
• Supported Audio: Pass-Through
• Separate Audio Ports: 3.5mm Stereo Audio Socket
• Special Features: USB Micro-B Socket for Power

CONNECTORS

• Input: Mini HDMI Type-C Male, USB Micro-B Female (Power)
• Output: VGA Female, 3.5mm Stereo Audio Female

PHYSICAL PROPERTIES

• Dimensions (Approx.) W × D × H: VGA: 45 × 43 × 14.5mm, Mini HDMI: 21 × 14 × 7.8mm
• Cable Length: 100mm
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 4.8mm
• Net Weight: 0.029kg
• Operating Temperature: 0~70°C
• Storage Temperature: -10~80°C
• Humidity: 5~95% RH (Non-Condensing)
• Colour: Black

MISCELLANEOUS

• Packaging Type: Polybag
• Packaging Dimensions: 160 × 160 × 20mm
• Gross Weight: 0.039kg
• Product Compliance: CE, FCC, RoHS and REACH
