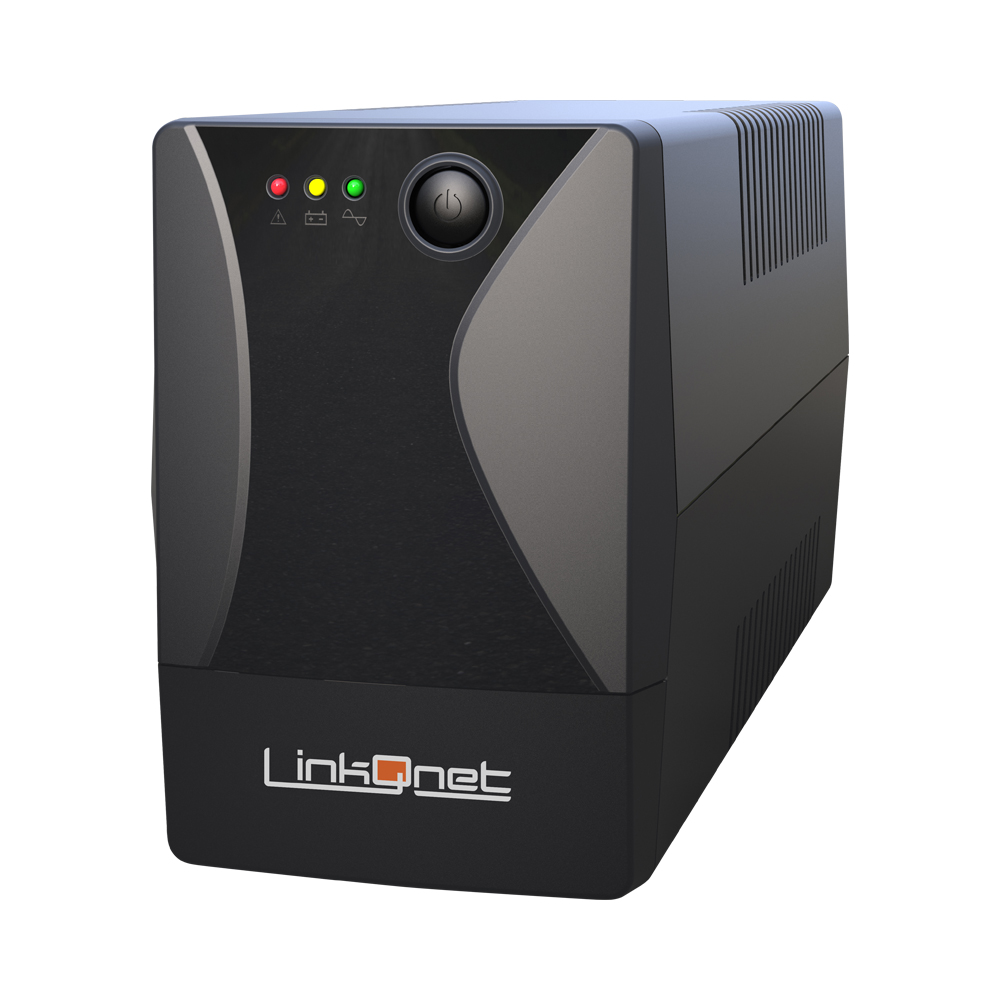

LinkQnet 2000VA/1200W,230AC/50HZ,LED DISPLAY,9AH

Product Description

The LinkQnet 2000VA/1200W,230AC/50HZ,LED DISPLAY,9AH is a high-performance solution from LinkQnet, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Comprehensive Power Protection – Protects connected devices from surges, spikes and power fluctuations
• Automatic Voltage Regulation (AVR) – Boost and buck AVR stabilises voltage for reliable power output
• Built-In Self-Diagnostics – Monitors system health to ensure reliable UPS operation
• Cold Start Capability – Allows the UPS to start directly from battery power when mains power is unavailable
• Off-Mode Charging – Charges the battery even when the UPS is switched off

Technical Specifications:
FEATURES

• Comprehensive Power Protection – Protects connected devices from surges, spikes and power fluctuations
• Automatic Voltage Regulation (AVR) – Boost and buck AVR stabilises voltage for reliable power output
• Built-In Self-Diagnostics – Monitors system health to ensure reliable UPS operation
• Cold Start Capability – Allows the UPS to start directly from battery power when mains power is unavailable
• Off-Mode Charging – Charges the battery even when the UPS is switched off
• Auto Restart – Automatically restarts connected equipment once AC power is restored

SPECIFICATIONS

CAPACITY
• 2000VA / 1200W

INPUT

VOLTAGE
• 230VAC

VOLTAGE RANGE
• 140~300VAC

FREQUENCY RANGE
• 50Hz / 60Hz (Auto-Sensing)

OUTPUT

AC VOLTAGE REGULATION (BATTERY MODE)
• 220V / 230V / 240V ±10%

FREQUENCY RANGE (BATTERY MODE)
• 50Hz ±1Hz or 60Hz ±1Hz

TRANSFER TIME
• Typical 4~8ms, 13ms Max.

WAVEFORM (BATTERY MODE)
• Simulated Sinewave

BATTERY

BATTERY VOLTAGE
• 24V

BATTERY NUMBER
• 2× 9Ah

MAX. CHARGE CURRENT
• 1A

INDICATORS

AC MODE
• Green Light

BATTERY MODE
• Orange Flash

FAULT
• Red Light

PROTECTION

FULL PROTECTION
• Short Circuit
• Overload
• Over-Charge
• Over Discharge

ALARM

BATTERY MODE
• Sounding Every 10 Seconds

LOW BATTERY
• Sounding Every Second

OVERLOAD
• Sounding Every 0.5 Seconds

FAULT
• Continuous Sounding

DIMENSIONS (W × D × H)
• 345 × 148 × 189mm

HUMIDITY
• 0~90% RH @ 0~40°C (Non-Condensing)

NOISE LEVEL
• Less than 40dB
