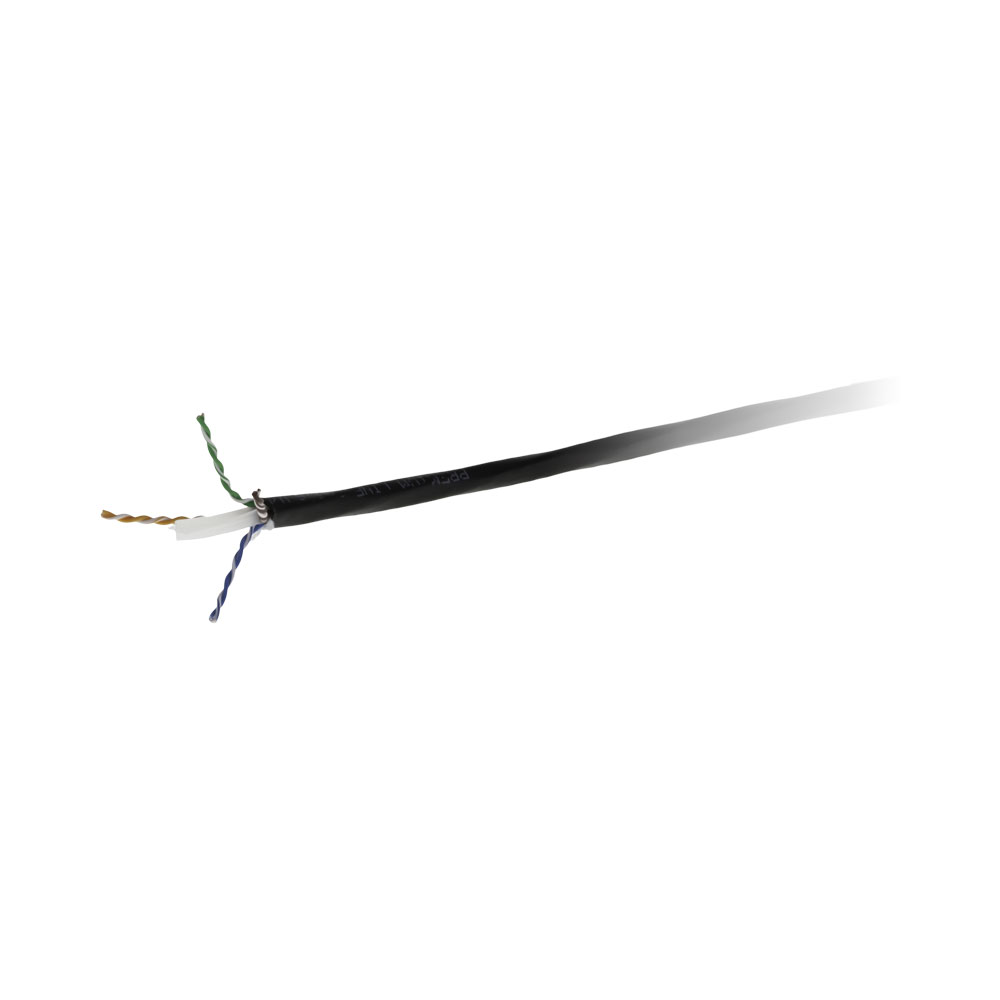

LinkQnet 500M ROLL CAT6 OUTDOOR SOLID NETWORK CABLE BLACK

Product Description

The LinkQnet 500M ROLL CAT6 OUTDOOR SOLID NETWORK CABLE BLACK is a high-performance solution from LinkQnet, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• CAT6 Gigabit Performance – Supports high-speed Ethernet networking with up to 250MHz bandwidth
• 23AWG Solid Copper Conductors – Ensures reliable signal transmission and stable network performance
• UV-Resistant Outdoor Jacket – Black polyethylene sheath protects against sunlight and harsh outdoor conditions
• Dual Jacket Construction – PVC inner sheath with additional outdoor PE layer for enhanced durability
• Cross Divider Design – Reduces crosstalk and improves signal integrity between twisted pairs

Technical Specifications:
FEATURES

• CAT6 Gigabit Performance – Supports high-speed Ethernet networking with up to 250MHz bandwidth
• 23AWG Solid Copper Conductors – Ensures reliable signal transmission and stable network performance
• UV-Resistant Outdoor Jacket – Black polyethylene sheath protects against sunlight and harsh outdoor conditions
• Dual Jacket Construction – PVC inner sheath with additional outdoor PE layer for enhanced durability
• Cross Divider Design – Reduces crosstalk and improves signal integrity between twisted pairs
• Standards Compliant – Meets ISO 11801, TIA/EIA-568-C.2 and EN50173 structured cabling standards
• Wide Operating Temperature Range – Reliable operation from -20°C to +70°C
• Ideal for Outdoor Installations – Perfect for surveillance, outdoor networking and long-distance LAN deployments

SPECIFICATIONS

CONDUCTOR
• 23AWG Solid Bare Copper (0.57mm)

INSULATION
• Polyethylene

PAIR COLOURS
• Blue / White-Blue
• Green / White-Green
• Orange / White-Orange
• Brown / White-Brown

PRIMARY SHEATH
• PVC
• Nominal OD: 6.1mm

SECONDARY SHEATH
• Black UV-Resistant Polyethylene
• Nominal OD: 7.5mm

CROSS DIVIDER
• Polyethylene

FIRE SAFETY RATING
• IEC 60332-1

TEMPERATURE RANGE
• Installation: 0~50°C
• Operational: -20~70°C

ELECTRICAL CHARACTERISTICS (AT 20°C)
• DC Resistance: 80 Ohms/Km Max.
• Resistance Unbalance: 2% Max.
• Mutual Capacitance: 42 nF/km Max.
• Capacitance Unbalance: 1000 pF/km Max.
• Skew: 400 ns/km Max.
• Velocity of Propagation: 68% (0.68 × 3 × 10⁸ m/s)
• Characteristic Impedance (1–100MHz): 100 ±15 Ohms
• Characteristic Impedance (100–250MHz): 100 ±(15 + 0.05 (f-100)) Ohms
