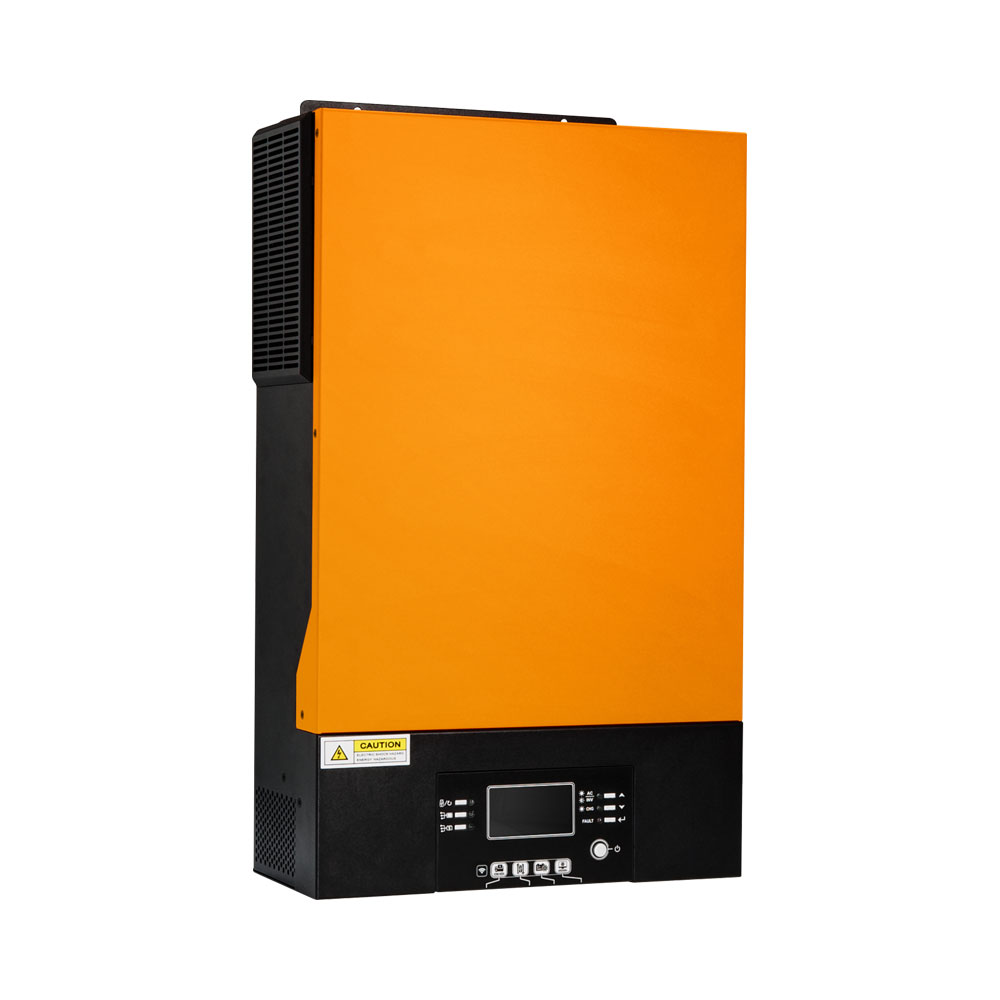

LinkQnet 5KW PF1 48VDC 6000W HV MPPT SOLAR UPS INV

Product Description

The LinkQnet 5KW PF1 48VDC 6000W HV MPPT SOLAR UPS INV is a high-performance solution from LinkQnet, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Peak Power: 5000VA
• RMS Power: 5000W
• AC Voltage: 230V
• DC Voltage: 48V (Battery Required)
• Transfer Time: Zero

Technical Specifications:
FEATURES

• Peak Power: 5000VA
• RMS Power: 5000W
• AC Voltage: 230V
• DC Voltage: 48V (Battery Required)
• Transfer Time: Zero
• AC Charge: 100A
• SCC Type: MPPT
• Ideal SCC Voltage: 120V – 450V DC
• Max PV OC Voltage: 500V DC
• Max SCC Power: 6000W
• SCC Charge: 100A
• Max. Combined Charge: 100A
• Parallel Capable: Yes – Parallel Built-In for Up to 9 Units
• Communication: USB / RS-232 / RS485 (BMS)
• Direct Bluetooth: No
• Wi-Fi Option: Yes (Installed)
• 3G Option: Yes
• SNMP Option: Yes
• Battery Types: Flooded, AGM, GEL, Li-Ion, Custom
• BMS Support: Yes
