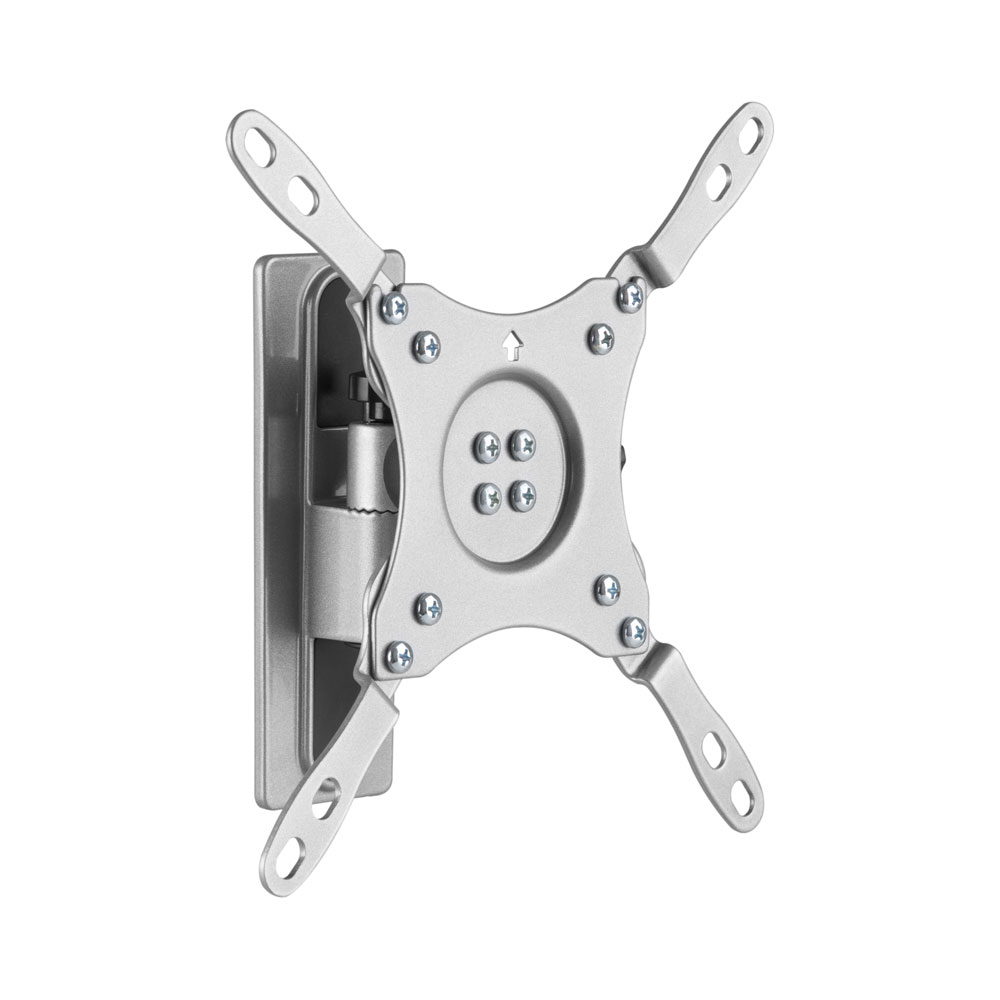

LinkQnet BRACKET 13-43 INCH,PIVOT RV TV MOUNT/EXTENDED VESA

Product Description

The LinkQnet BRACKET 13-43 INCH,PIVOT RV TV MOUNT/EXTENDED VESA is a high-performance solution from LinkQnet, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Detachable VESA Plate Design: enables easy installation
• Stepped Joints: prevents in-transit vibration for increased stability
• Lockable Design with Knob: resists arm-shaking and reduces noise while the vehicle is in motion
• Free-tilting and Swiveling Design: for multiple TV viewing angles
• SPECIFICATIONS

Technical Specifications:
FEATURES

• Detachable VESA Plate Design: enables easy installation
• Stepped Joints: prevents in-transit vibration for increased stability
• Lockable Design with Knob: resists arm-shaking and reduces noise while the vehicle is in motion
• Free-tilting and Swiveling Design: for multiple TV viewing angles

SPECIFICATIONS

• Material: Aluminium, Steel
• Metal Sheet Thickness: VESA Panel THK = 2mm cold-rolled sheet
• Surface Finish: Powder Coating
• Colour: Metallic Grey
• Dimensions: 221 × 221 × 86mm
• Fit Screen Size: 13″-43″
• Fit Curved TV: No
• Mounting Hole Pattern: VESA Only
• VESA Compatible: 75×75, 100×100, 200 × 100, 200 × 200
• Max. Mounting Hole: 200 × 200
• Weight Capacity: 15kg
• Profile: 86mm
• Tilt Range: +45°~-42°
• Swivel Range: +45°~-45°
• Screen Freely Tilting: No
• Installation: Solid Wall, Single Stud
• Panel Type: Detachable Panel
• Wall Plate Type: Fixed Wall Plate
• AV Component Shelf: No
• Direction Indicator: Yes
• Cable Management: No
• Anti-Theft: No
• Bubble Level: Hook-on Bubble Level (Included in Components Package)
