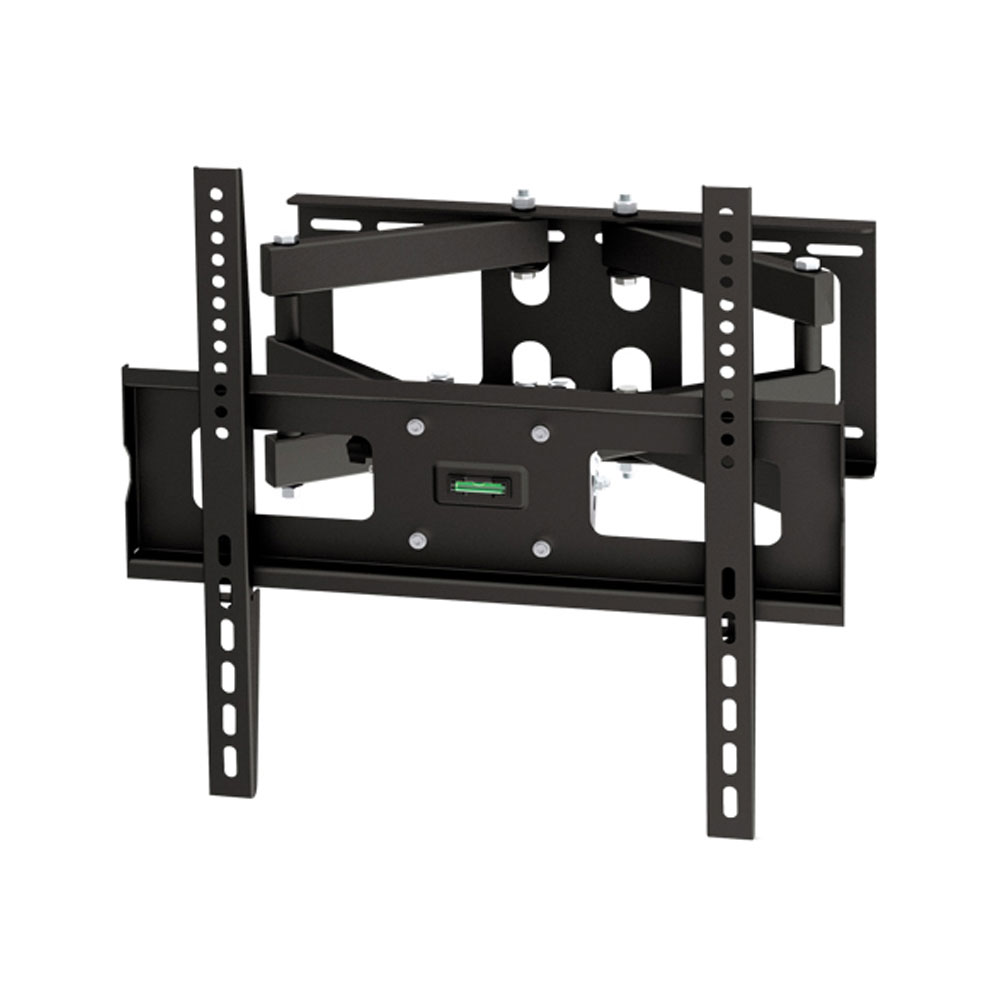

LinkQnet BRACKET 32 – 55IN,45KG,15TILT,120SWIVEL,LEVEL

Product Description

The LinkQnet BRACKET 32 – 55IN,45KG,15TILT,120SWIVEL,LEVEL is a high-performance solution from LinkQnet, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Easy Assembly: Installation is as easy as 1-2-3
• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
• Built-In Level Adjustment: ensures perfect positioning
• Integrated Bubble Level: assures alignment
• SPECIFICATION

Technical Specifications:
FEATURES

• Easy Assembly: Installation is as easy as 1-2-3
• Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
• Built-In Level Adjustment: ensures perfect positioning
• Integrated Bubble Level: assures alignment

SPECIFICATION

• Material: Steel
• Metal Sheet Thickness: VESA Panel THK = 2mm cold-rolled sheet, Bracket Arm THK = 2mm cold-rolled sheet, Wall Plate THK = 3mm hot-rolled sheet
• Pipe Size: 20 x 40 x 1.5mm
• Surface Finish: Powder Coating
• Colour: Fine Texture Black
• Dimensions: 515 x 460 x 400mm
• Fit Screen Size: 32″-55″
• Fit Curved TV: Yes
• Mounting Hole Pattern: VESA & Universal
• VESA Compatible: 200×200, 300×300, 400×200, 400×400
• Max. VESA: 426x404mm
• Weight Capacity: 45kg
• Profile: 125~515mm
•Tilt Range: +15°~-15°
•Swivel Range: 120°
•Screen Level: +5°~-5°
•Screen Freely Tilting: Yes
•Installation: Solid Wall, Double Stud (406mm)
•Panel Type: Detachable Panel
•Wall Plate Type: Fixed Wall Plate
•Cable Management: No
•Anti-theft: No
•Bubble Level: Built-in Bubble Level (Integrated on Wall Plate/VESA Panel)
•Instruction Manual Included: Yes
•Certification: GS
