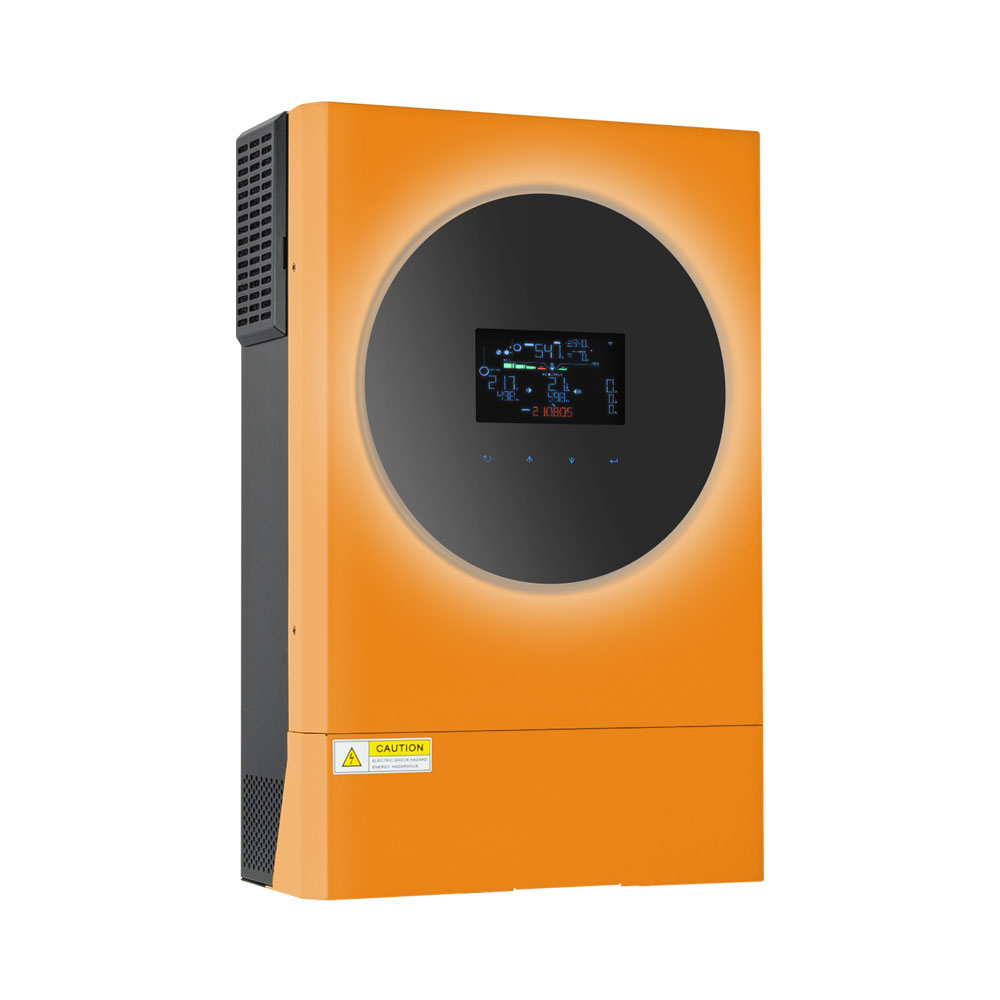

LinkQnet INFINISOLAR V4 6000W HV MPPT HYBRID INVERTER

Product Description

The LinkQnet INFINISOLAR V4 6000W HV MPPT HYBRID INVERTER is a high-performance solution from LinkQnet, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 5.6KW rated output with hybrid on-grid and off-grid capability
• Supports self-consumption and grid feed-in
• Programmable priority for PV, battery, or grid power
• Built-in Wi-Fi for mobile monitoring and control
• 4.3″ colour LCD with touch button interface

Technical Specifications:
FEATURES

• 5.6KW rated output with hybrid on-grid and off-grid capability
• Supports self-consumption and grid feed-in
• Programmable priority for PV, battery, or grid power
• Built-in Wi-Fi for mobile monitoring and control
• 4.3″ colour LCD with touch button interface
• Parallel operation support up to 9 units
• User-adjustable charging current and voltage
• Multiple operation modes: grid-tie, off-grid, and backup
• Data logging stored within the inverter
• RGB LED status ring for visual system feedback

SPECIFICATIONS

• Phase: 1-phase input / 1-phase output
• Rated Output Power: 5600W
• Maximum PV Input Power: 6000W
• Maximum Charging Power: 6000W
• Nominal DC Voltage: 360 VDC
• Maximum DC Voltage: 450 VDC
• MPP Voltage Range: 120–430 VDC
• Number of MPP Trackers: 1
• Maximum Input Current: 27A
• Nominal Output Voltage: 220/230/240 VAC
• Output Voltage Range: 184–264.5 VAC or 195.5–253 VAC
• Nominal Output Current: 24.3A
• Power Factor: >0.9
• Maximum Efficiency: 96%
• Battery Voltage: 48 VDC
• Maximum Solar Charging Current: 120A
• Maximum AC Charging Current: 120A
• Maximum Charging Current: 120A
• Maximum AC Input Current: 40A
• Output Waveform: Pure sine wave
• Efficiency (DC to AC): 93%
• Dimensions: 140 x 295 x 468 mm
• Net Weight: 12 kg
• Communication Ports: USB / RS232 / RS485 / Wi-Fi / Dry-contact
• Parallel Function: Up to 9 units
• Operating Temperature: -10°C to 50°C
• Humidity: 0–90% RH (non-condensing)
