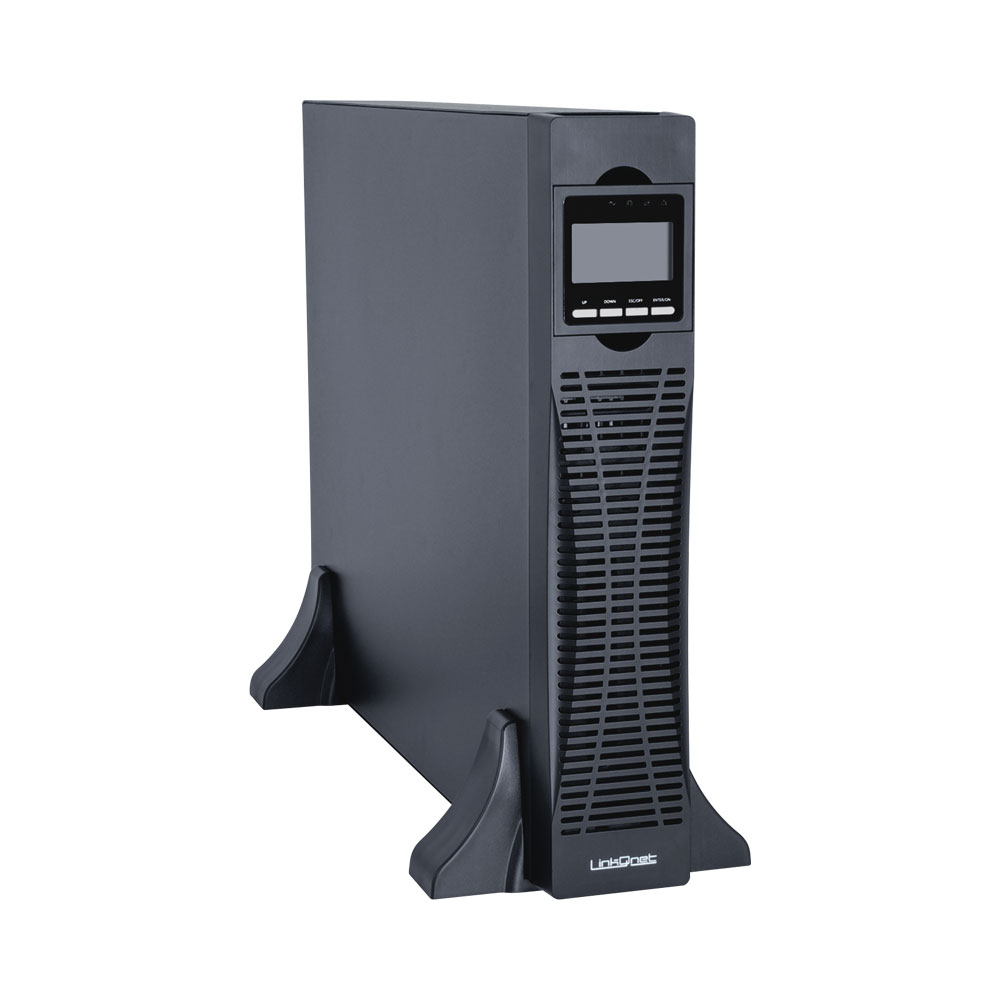

LinkQnet MP 2KVA XRT 2U RM ONLINE UPS – NO BATT,.

Product Description

The LinkQnet MP 2KVA XRT 2U RM ONLINE UPS – NO BATT,. is a high-performance solution from LinkQnet, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Rack and Tower Convertible Online UPS – Double-conversion topology with full digital control
• Wide Input Voltage Range – Operates from 110~300Vac for superior utility tolerance
• High Input Power Factor – 0.99 input PF with active PFC for improved efficiency
• Selectable Output Voltage – Supports 208/220/230/240Vac for deployment flexibility
• Smart Charger Architecture – Optimised charging for extended battery life and performance

Technical Specifications:
FEATURES

• Rack and Tower Convertible Online UPS – Double-conversion topology with full digital control
• Wide Input Voltage Range – Operates from 110~300Vac for superior utility tolerance
• High Input Power Factor – 0.99 input PF with active PFC for improved efficiency
• Selectable Output Voltage – Supports 208/220/230/240Vac for deployment flexibility
• Smart Charger Architecture – Optimised charging for extended battery life and performance
• Expandable Charging Current – Supports up to 12A charging for long-run configurations
• Emergency Power-Off Function – Integrated EPO for rapid shutdown in critical situations
• ECO Mode Operation – Energy-saving mode for improved overall efficiency
• Generator Compatible Design – Stable operation with generator power sources
• Hot-Swappable Battery Support – Enables battery replacement without system downtime
• Cold Start Capability – Allows UPS startup without mains power
• Intelligent Fan Speed Control – Adaptive cooling for quieter operation and longer component life
• Advanced LCD Interface – Clear human-machine interface for real-time monitoring and control
• Flexible Communication Options – RS232 standard with optional USB, EPO, relay card and SNMP card (optional)
• Comprehensive Protection Systems – Protects against short-circuit, overload, overheat, battery overcharge and over-discharge, output low voltage and fan fault conditions

SPECIFICATIONS

Capacity
• Rated Capacity: 2000VA / 1800W
Input
• Nominal Voltage: 208 / 220 / 230 / 240Vac
• Input Voltage Range: 110~300Vac, 176~280Vac @100% Load
• Frequency Range: 40~70Hz (50/60Hz Auto-Sensing)
• Input Power Factor: ≥0.99
Output
• Output Voltage: 208 / 220 / 230 / 240Vac
• Output Power Factor: 0.9
• Voltage Regulation: ±1%
• Output Frequency: Line Mode 46~54Hz or 56~64Hz, Battery Mode: 50/60Hz ±0.1%
• Crest Factor: 3:1
• Harmonic Distortion (THDv): ≤3% (Linear Load), ≤5% (Non-Linear Load)
• Output Waveform: Pure Sinewave
Transfer Time
• AC to Battery Mode: 0ms
• Inverter to Bypass: 4ms (Typical)
Efficiency
• AC Mode: 91%
• Battery Mode: 87%
Battery
• Battery Configuration: 4× 12V (48V System)
• Battery Capacity Range: 9Ah to 200Ah
• Typical Recharge Time: 4 hours to 90% (Battery-Dependent)
• Charging Voltage: 54.8Vdc ±1%
• Maximum Charging Current: 12A
Indicators and Display
• LED Indicators: Line Mode, Battery Mode, ECO Mode, Bypass Mode, Battery Low, Overload, UPS Fault
• LCD Display: Input Voltage and Frequency, Output Voltage and Frequency, Load Percentage, Battery Voltage, Internal Temperature, Remaining Backup Time
Alarm
• Battery Mode: Beep Every 4 Seconds
• Battery Low: Beep Every Second
• Overload: Beep Twice Every Second
• Fault: Continuous Alarm
