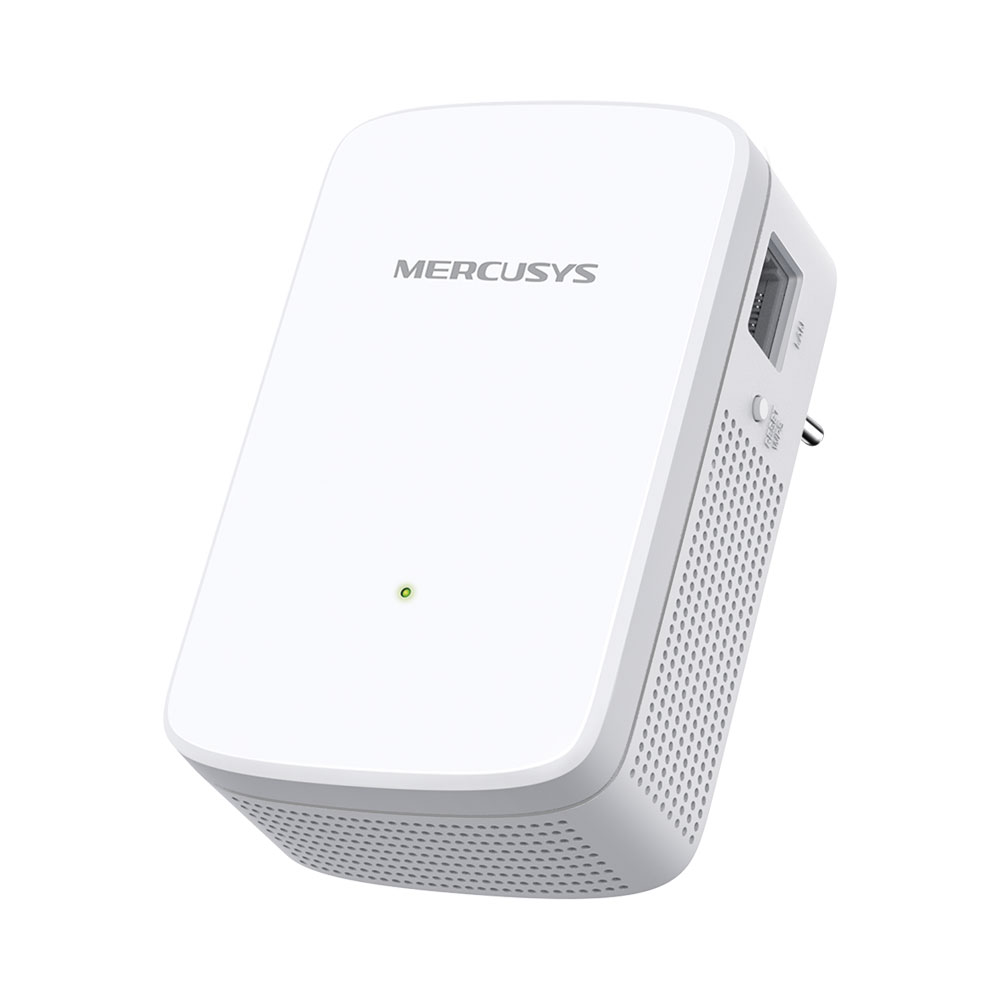

Mercusys AC750 WIFI RANGE EXTENDER

Product Description

The Mercusys AC750 WIFI RANGE EXTENDER is a high-performance solution from Mercusys, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Eliminate Wi-Fi Dead Zones – Boosts Wi-Fi signals to previously unreachable or hard-to-wire areas flawlessly
• AC750 Dual Band Wi-Fi – Keep your whole home connected with strong Wi-Fi expansion at a combined speed of up to 750Mbps
• Easy One-Touch Setup – Simply press the WPS button to expand your Wi-Fi coverage in seconds
• Signal Indicator – Multicolour LED helps you find the right location for your range extender for the best Wi-Fi extension
• Fast 10/100Mbps Port – Provides speedy wired connections for PCs, IPTVs and game consoles

Technical Specifications:
FEATURES

• Eliminate Wi-Fi Dead Zones – Boosts Wi-Fi signals to previously unreachable or hard-to-wire areas flawlessly
• AC750 Dual Band Wi-Fi – Keep your whole home connected with strong Wi-Fi expansion at a combined speed of up to 750Mbps
• Easy One-Touch Setup – Simply press the WPS button to expand your Wi-Fi coverage in seconds
• Signal Indicator – Multicolour LED helps you find the right location for your range extender for the best Wi-Fi extension
• Fast 10/100Mbps Port – Provides speedy wired connections for PCs, IPTVs and game consoles

SPECIFICATIONS

HARDWARE
• Port: 1× 10/100Mbps RJ45 Port
• Button: Reset / WPS Button
• Power Consumption: 7.2W
• Dimensions (W × D × H): 112 × 84.7 × 39mm

WIRELESS
• Wireless Standards: IEEE 802.11n/ac (5.0GHz), IEEE 802.11b/g/n (2.4GHz)
• Frequency: 2.4~2.5GHz, 5.0GHz
• Signal Rate: Up to 750Mbps
– 433Mbps on 5.0GHz
– 300Mbps on 2.4GHz

EIRP
• 2.4GHz: ≤20dBm
• 5.0GHz: Band 1 ≤23dBm, Band 3 ≤30dBm

RECEPTION SENSITIVITY
• 5.0GHz
11ac VHT80 MCS9: <-63dBm
• 2.4GHz
11n HT40 MCS7: <-71dBm

WIRELESS SECURITY
• WPA-PSK
• WPA2-PSK
• WPA3

CERTIFICATION
• CE
• RoHS
