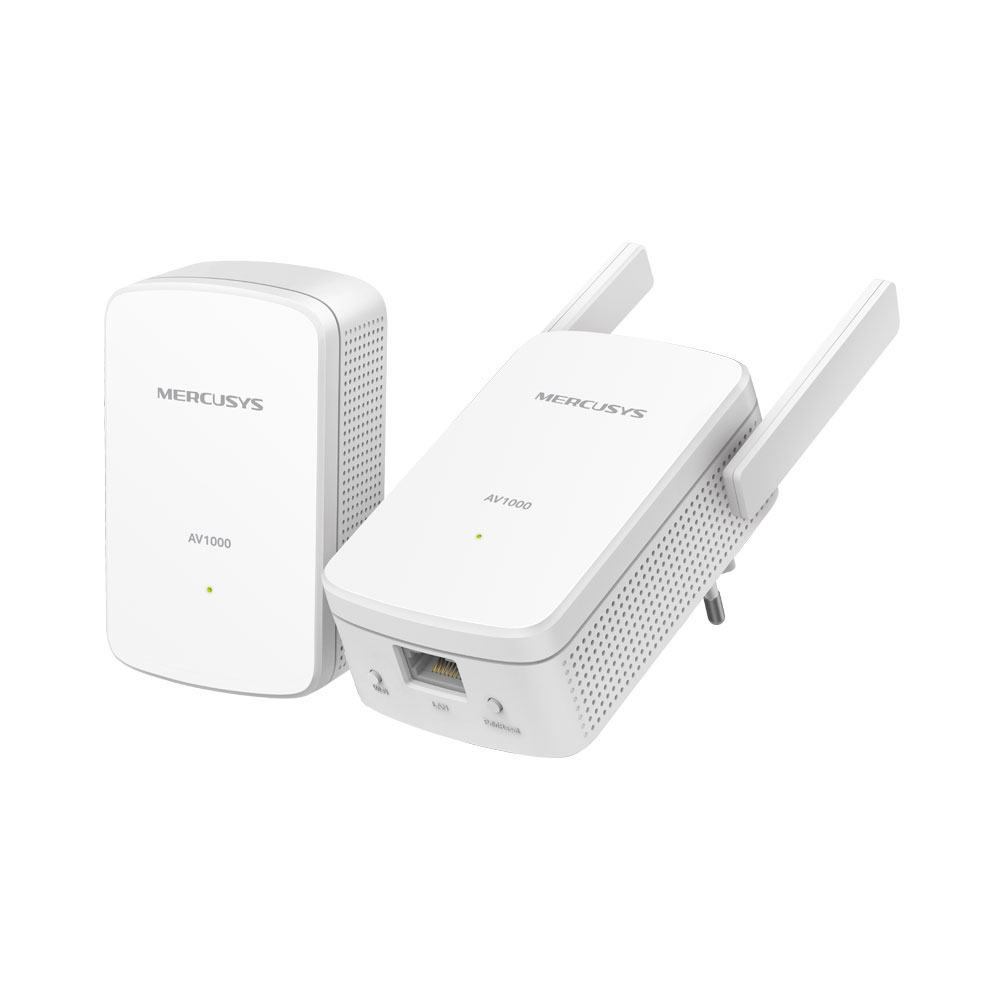

Mercusys AV1000 GIGABIT POWERLINE WI-FI KIT

Product Description

The Mercusys AV1000 GIGABIT POWERLINE WI-FI KIT is a high-performance solution from Mercusys, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• AV1000 Powerline Speed – Delivers high-speed data transfer rates of up to 1,000Mbps over your existing electrical wiring
• 4K HD Streaming Support – Provides stable bandwidth for smooth 4K video streaming, online gaming and large file transfers
• Gigabit Ethernet Port – Provides fast and reliable wired connections for PCs, IPTV, smart TVs and gaming consoles
• Eliminate Wi-Fi Dead Zones – Extend 300Mbps Wi-Fi wherever you need via your home’s existing wiring
• HomePlug AV2 Technology – Ensures improved performance, stable connections and extended network coverage

Technical Specifications:
FEATURES

• AV1000 Powerline Speed – Delivers high-speed data transfer rates of up to 1,000Mbps over your existing electrical wiring
• 4K HD Streaming Support – Provides stable bandwidth for smooth 4K video streaming, online gaming and large file transfers
• Gigabit Ethernet Port – Provides fast and reliable wired connections for PCs, IPTV, smart TVs and gaming consoles
• Eliminate Wi-Fi Dead Zones – Extend 300Mbps Wi-Fi wherever you need via your home’s existing wiring
• HomePlug AV2 Technology – Ensures improved performance, stable connections and extended network coverage
• Plug-and-Play – Simply plug in the adapters to start networking with no configuration required
• Easy Network Expansion – Expand your network coverage by adding additional compatible Powerline adapters

SPECIFICATIONS

WIRELESS
• Wireless Speed: Up to 300Mbps
• Wireless Security:
– WPA
– WPA2-Personal
– WPA3-Personal
– WEP

SOFTWARE
• Modulation Technology: OFDM (PLC)
• Powerline Security: 128-bit AES Encryption
• Compatibility: Compatible With All Routers and HomePlug AV / AV2 Powerline adapters

HARDWARE
• Dimensions (W × D × H):
– MP510: 112 × 84.7 × 39mm
– MP500: 101 × 60 × 36mm
• Button: Pair / Reset Button
• LED Indicator: Power

STANDARDS AND PROTOCOLS
• HomePlug AV2
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.11b/g/n

POWER CONSUMPTION
• MP510
– Maximum: 6.28W
– Typical: 4.29W
• MP500
– Maximum: 2.87W
– Typical: 2.35W
– Standby: 0.64W

RANGE
• up to 300m over Existing Electrical Circuit

CERTIFICATION
• CE
• RoHS

ENVIRONMENT
• Operating Temperature: 0~40°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)

SYSTEM REQUIREMENTS
• Windows 2000 / XP / 2003 / Vista
• Windows 7 / 8 / 8.1 / 10
• Mac
• Linux
