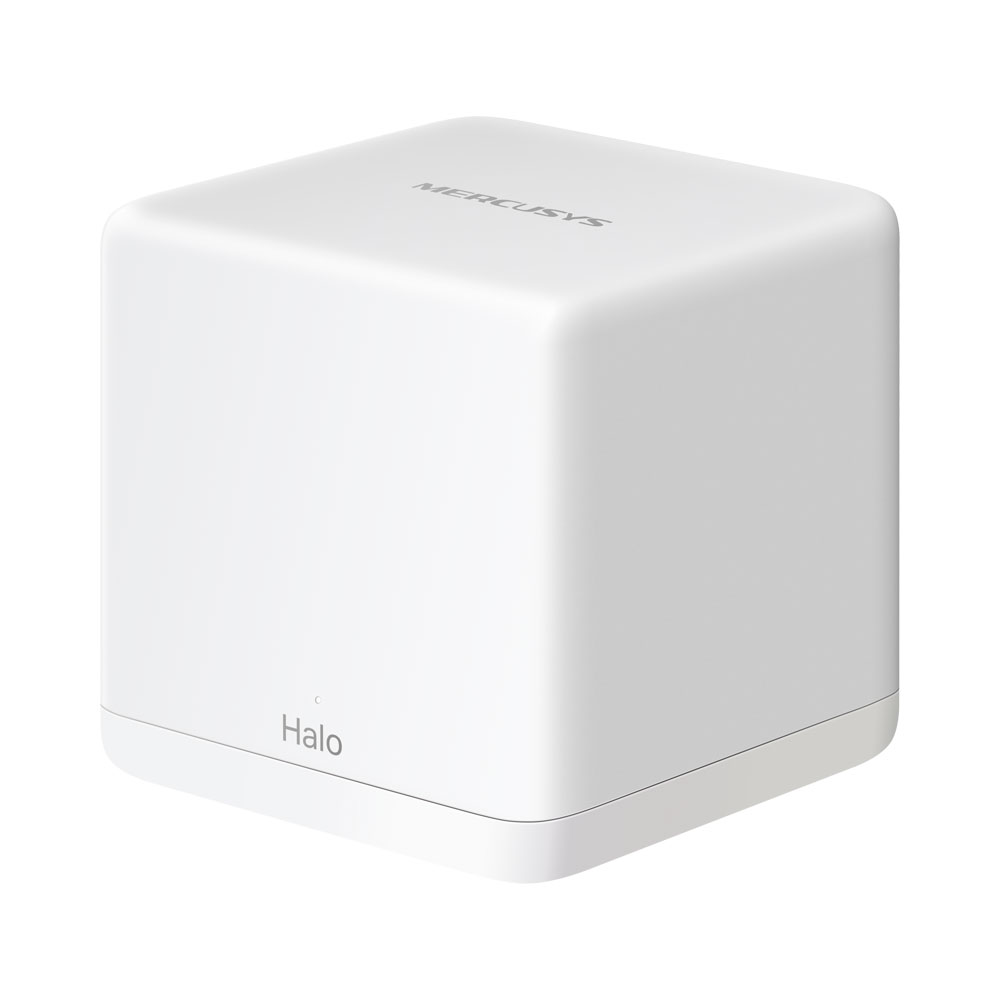

Mercusys AX1500 WHOLE HOME MESH WIFI SYSTEM – 2PK

Product Description

The Mercusys AX1500 WHOLE HOME MESH WIFI SYSTEM – 2PK is a high-performance solution from Mercusys, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• AX1500 Dual-Band Wi-Fi 6 – 1,201Mbps (5.0GHz) plus 300Mbps (2.4GHz) for fast and stable wireless performance
• Whole-Home Mesh Coverage – Halo units work together to create one unified Wi-Fi network with seamless roaming
• Faster and More Efficient Wi-Fi 6 – OFDMA and MU-MIMO technologies improve network capacity and reduce latency
• Seamless Roaming – Automatically connects devices to the strongest signal while moving around your home
• Gigabit Wired Connections – Multiple Gigabit ports provide high-speed wired connectivity for smart TVs, consoles and PCs

Technical Specifications:
FEATURES

• AX1500 Dual-Band Wi-Fi 6 – 1,201Mbps (5.0GHz) plus 300Mbps (2.4GHz) for fast and stable wireless performance
• Whole-Home Mesh Coverage – Halo units work together to create one unified Wi-Fi network with seamless roaming
• Faster and More Efficient Wi-Fi 6 – OFDMA and MU-MIMO technologies improve network capacity and reduce latency
• Seamless Roaming – Automatically connects devices to the strongest signal while moving around your home
• Gigabit Wired Connections – Multiple Gigabit ports provide high-speed wired connectivity for smart TVs, consoles and PCs
• Easy Setup and Management – Configure and manage your network easily using the Mercusys App
• Guest Network Support – Provides secure internet access for visitors without sharing your main network
* Please note that the Halo H series and S series cannot work together

SPECIFICATIONS

WIRELESS STANDARDS
• Wi-Fi 6
• IEEE 802.11ax/ac/n/a – 5.0GHz
• IEEE 802.11n/b/g – 2.4GHz

SIGNAL RATE
• 1,201Mbps on 5.0GHz
• 300Mbps on 2.4GHz

WI-FI RANGE
• 2-Pack: up to 350m² Coverage

RECEPTION SENSITIVITY
2.4GHz
• 11g 6Mbps: -96.5dBm
• 11g 54Mbps: -78dBm
5.0GHz
• 11a 6Mbps: -96dBm
• 11a 54Mbps: -78dBm
• 11ac VHT20 MCS8: -74.5dBm
• 11ac VHT40 MCS9: -70.5dBm
• 11ac VHT80 MCS9: -66.5dBm
• 11ax HE20 MCS11: -66dBm
• 11ax HE40 MCS11: -63dBm
• 11ax HE80 MCS11: -61dBm

TRANSMISSION POWER
• 2.4GHz: <20dBm (EIRP)
• 5.0GHz: <23dBm (EIRP)

WIRELESS SECURITY
• WPA-PSK
• WPA2-PSK
• WPA3

MESH PROTOCOL
• 802.11k/v/r

OPERATION MODES
• Router Mode
• Access Point Mode

QUALITY OF SERVICE
• WMM

WAN TYPE
• Dynamic IP
• Static IP
• PPPoE
• L2TP
• PPTP

MANAGEMENT
• Local Management
• Remote Management
• Multi-Managers

DHCP
• Server
• Client

FIREWALL SECURITY
• SPI Firewall

PROTOCOLS
• IPv4
• IPv6

GUEST NETWORK
• 2.4GHz Guest Network
• 5.0GHz Guest Network

DIMENSIONS (W × D × H)
• 88 × 88 × 88mm

INTERFACES
• 3× Gigabit WAN/LAN Ports

BUTTON
• Reset Button

WEB SERVER
• Device Management via HTTP/HTTPS
• Port: 80/443, Protocol TCP

DHCP Server
• Automatic IP Address Assignment
• Port: 67, Protocol UDP

DNS
• Port: 53, Protocol TCP & UDP

APP MANAGEMENT
• Manage and Configure via Mobile App
• Port: 20001, Protocol TCP
• Port: 20002, Protocol UDP

ENVIRONMENT
• Operating Temperature: 0~40°C
• Operating Humidity: 10~90% Non-Condensing
• Storage Humidity: 5~0% Non-Condensing
