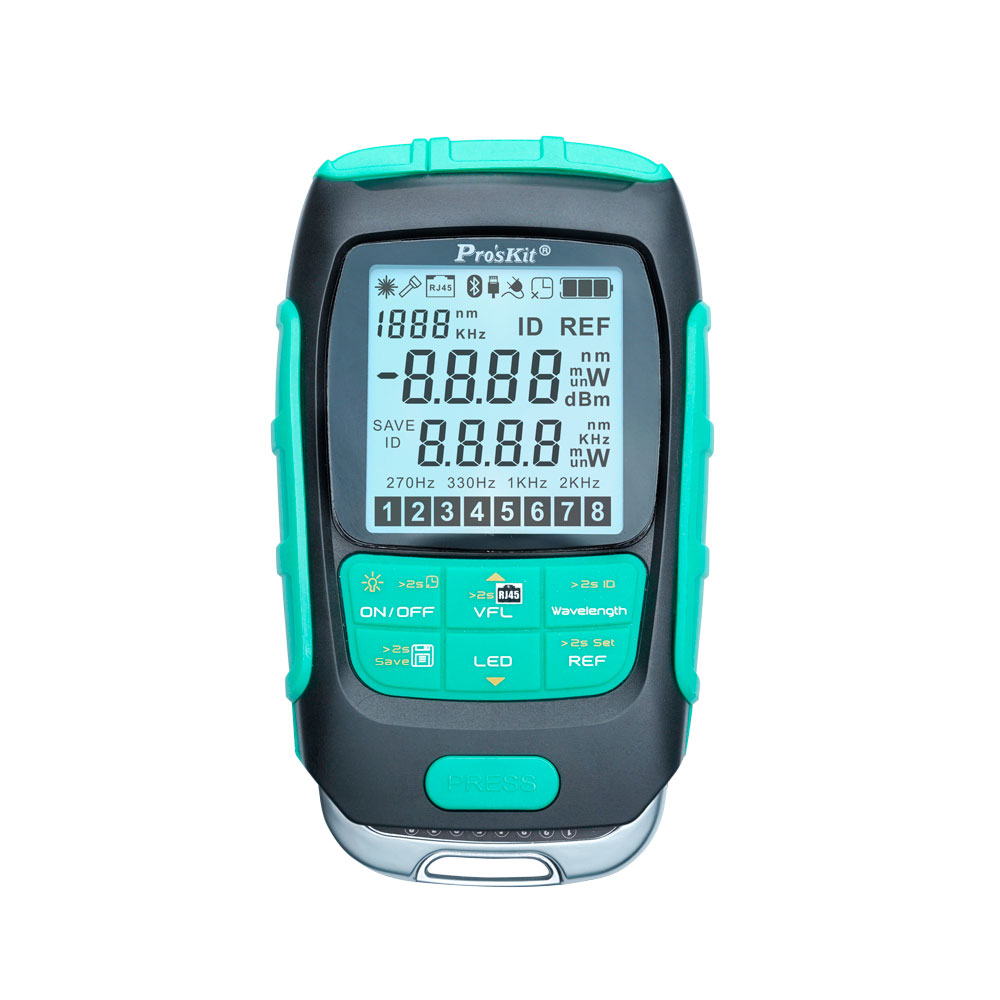

Proskit MT-7616 4-IN-1 FIBRE OPTICAL POWER MULTIMETER, INCLUDING POWER METER, LAN CABLE TESTER, VISUAL FAULT LOCATOR AND LED FLASHLIGHT

Product Description

The Proskit MT-7616 4-IN-1 FIBRE OPTICAL POWER MULTIMETER, INCLUDING POWER METER, LAN CABLE TESTER, VISUAL FAULT LOCATOR AND LED FLASHLIGHT is a high-performance solution from Proskit, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 4-in-1 Design with 30mW Output – Combines multiple fibre and network test functions in one tool
• Self-Calibration – Ensures accurate measurements without manual adjustment
• Rechargeable Li-ion Battery – A 450mAh battery provides reliable portable power for field work
• 500× Data Storage Groups – Stores test results for easy review and reporting
• Integrated Cable Tester – Verifies LAN cable continuity and performance

Technical Specifications:
FEATURES

• 4-in-1 Design with 30mW Output – Combines multiple fibre and network test functions in one tool
• Self-Calibration – Ensures accurate measurements without manual adjustment
• Rechargeable Li-ion Battery – A 450mAh battery provides reliable portable power for field work
• 500× Data Storage Groups – Stores test results for easy review and reporting
• Integrated Cable Tester – Verifies LAN cable continuity and performance

SPECIFICATIONS

• Detector Type: InGaAs
• Wavelength Response Range: 700~1700nm
• OPM Connector: 2.5mm Universal Connector
• Measurement Wavelengths: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
• Measurement Range: -70~+10dB
• Resolution: 0.01dB
• Accuracy (1550nm and 1310nm): 0.2dB
• Accuracy (1490nm, 1625nm and 1650nm): 0.3dB
• Accuracy (850nm, 980nm and 1300nm): 0.4dB
• Measurement Units: dB, dBm, mW, uW, nW
• Modulation Detection: 270Hz, 1kHz, 2kHz
• Data Storage: 500× Groups
• Wavelength Memory: Yes
• WAVE ID: Yes (only for ProsKit light source products)
• User Self-Calibration: Yes
• REF Function: Yes
• Back Light: Yes
• Output Power: 30mW
• Fibre Testing Distance: 14~16km @SM
• VFL Connector: 2.5mm Universal Connector
• VFL Wavelength: 650 ±20nm
• Operation Mode: CW / 2Hz Glint
• Network Application: UTP Network Cable
• Interface: RJ45 (UTP 8P8C)
• Network Testing Type: Network Sequence
• Network Testing Distance: 600m
• Illumination: LED
• Auto Power-Off: Yes (no operation for 10 minutes)
• Low Battery Indicator: Yes
• Charging Socket: Micro USB
• Working Time: >50hours (OPM only)
• Power Source: 3.7V 450mAh Li-ion
• Operating Temperature: -10~50°C
• Operating Humidity: <90% RH
• Dimensions (L × W × H): 98 × 59 × 27mm
• Weight: 100g
