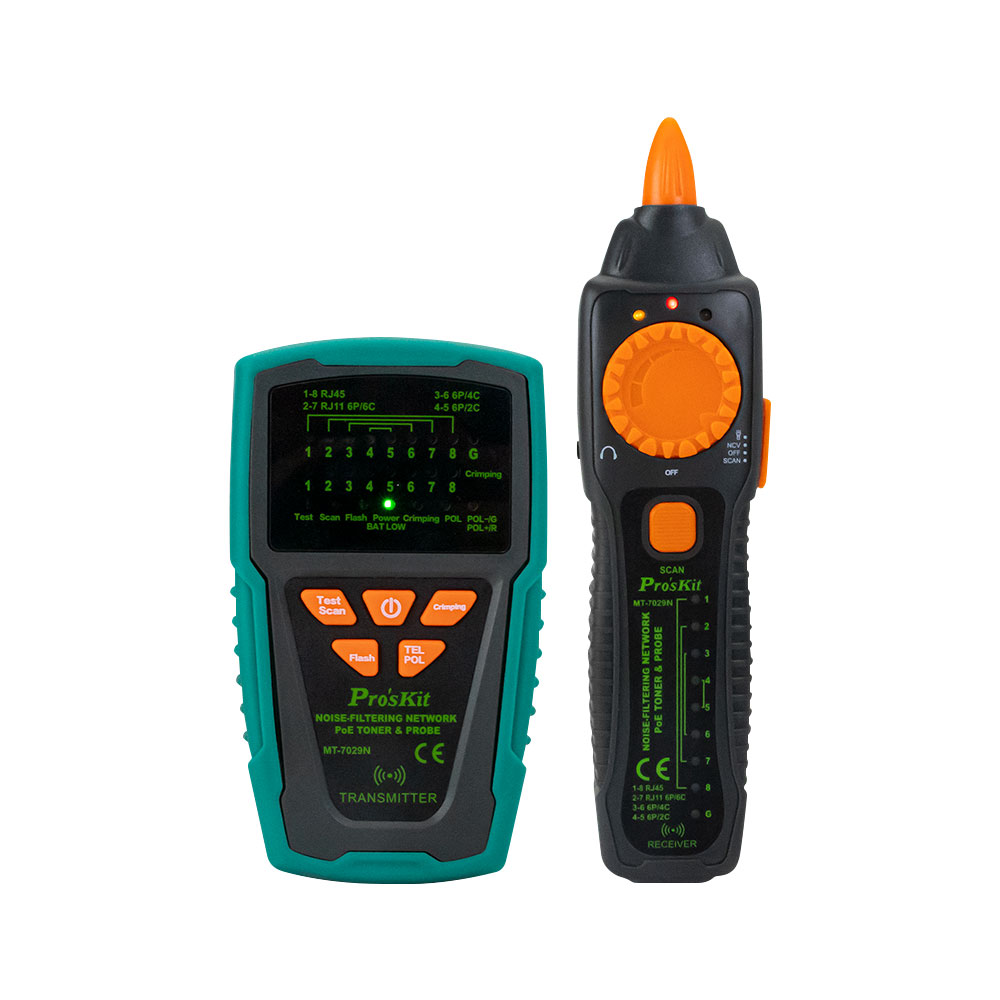

Proskit NOISE-FILTER N/W POE TONER&PROBE(MT-7029N)

Product Description

The Proskit NOISE-FILTER N/W POE TONER&PROBE(MT-7029N) is a high-performance solution from Proskit, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Strong Anti-Noise Capability
• PoE Switches & STP Wire Tracing
• Port Locator with Flashing Signal
• Single-way Plug Crimping Quality Test
• Cable Mapping and Status Indication 300m

Technical Specifications:
FEATURES

• Strong Anti-Noise Capability
• PoE Switches & STP Wire Tracing
• Port Locator with Flashing Signal
• Single-way Plug Crimping Quality Test
• Cable Mapping and Status Indication 300m

SPECIFICTATIONS

• Tone frequency: 130KHz
• Max. distance of transmission& cable map: 3km & 300m
• Tone mode: Single tone
• Compatible connectors:  For RJ45(8 pin)/RJ11(6 pin) cable map test RJ45 SCAN socket : for RJ45 locating Individual wire pairs RJ11 SCAN socket: for RJ11 locating Individual wire pairs
• Cable types tested: RJ45 Lan cable Cat 5, 5e, 6 (UTP/ STP), RJ11/12 Telephone cable Cat 3 (6P/2C/4C/6C)
• Continuity test: 1 LED (≦300Ω), Coaxial cable & normal solid/Stranded wire by alligator clips patch cord
• Cable map & shielded indication: 8 LEDs Fast/slow dual speed, 1 LED
• Phone line polarity indication: 1 Dual color LED
• Telephone line status indication: 1 Dual color LED
• Network scan & PoE scan: 1 LED & 1 LED
• EMI filter (network scan & PoE scan): YES
• Other function: Live telecommunication equipment test and router test, voltage protection DC 48V, auto power off, low battery display
• Battery type: DC 9V (NEDA 1604/6F22) x1 pcs (not included)
• Dimension (L×W×D): 138×80×35mm
• Frequency: 130KHz
• Compatible connectors: RJ45(8 pin)/RJ11(6 pin)
• Signal status indication: 1 dual color LED & buzzer, building ear jack
• Cable map & shielded indication: 8 LED & 1 LED
• NCV indication: 1 LED (AC90~1000V)
• LED illumination: 1 LED
• Battery type: 9V DC (NEDA 1604/6F22) x1 pc (not included)
• Dimension (L×W×D): 203×50×32mm
• Accessories: RJ45 cable patch cords, RJ11 cable patch cords, RJ11 to alligator clips patch cord, earphone, storage bag, user manual
