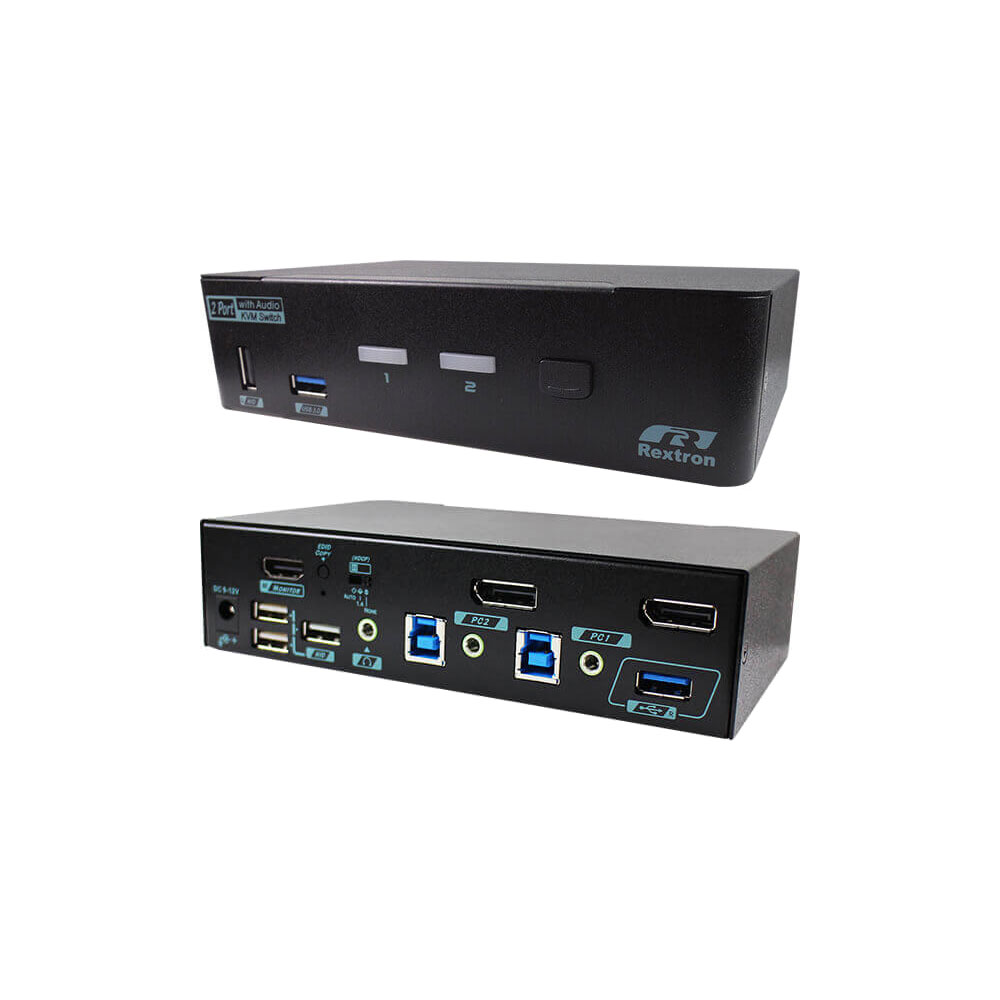

Rextron 4K – 2 PORT (DP) TO HDMI OUT KVM SWITCH

Product Description

The Rextron 4K – 2 PORT (DP) TO HDMI OUT KVM SWITCH is a high-performance solution from Rextron, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Dual-Computer KVM Control – Allows two DisplayPort source computers to share a single HDMI display, keyboard, mouse and audio setup
• 4K Ultra HD Video Support – Supports resolutions up to 3840×2160 @60Hz for sharp, detailed visuals
• DisplayPort to HDMI 2.0 Conversion – Enables connection of DisplayPort computers to an HDMI display
• USB3.2 Gen1 Peripheral Sharing – Provides high-speed USB connectivity for keyboard, mouse and USB devices
• Hotkey and Push Button Control – Enables fast and convenient computer switching

Technical Specifications:
FEATURES

• Dual-Computer KVM Control – Allows two DisplayPort source computers to share a single HDMI display, keyboard, mouse and audio setup
• 4K Ultra HD Video Support – Supports resolutions up to 3840×2160 @60Hz for sharp, detailed visuals
• DisplayPort to HDMI 2.0 Conversion – Enables connection of DisplayPort computers to an HDMI display
• USB3.2 Gen1 Peripheral Sharing – Provides high-speed USB connectivity for keyboard, mouse and USB devices
• Hotkey and Push Button Control – Enables fast and convenient computer switching
• HDCP Support – Ensures compatibility with protected digital content
• EDID Management – Including EDID copy / auto EDID

SPECIFICATIONS

Computer / Server Ports (Input)
• Video Input: 2× DisplayPorts
• USB Interface: 2× USB3.2 Gen1 Type-B
• Audio Input: 2× Audio jack
Console Ports (Output)
• Video Output: 1× HDMI
• USB Interface: 2× USB3.2 Gen1 Type-A (1× Rear and 1× Front)
• USB HID Ports: 4× USB Type-A (Rear and Front for Keyboard, Mouse and HID Devices)
• Audio Output: 1× Audio Jack
Video Performance
• Maximum Resolution: 4096×2160 @60Hz (4:4:4)
• Maximum Resolution: 3840×2160 @60Hz (4:4:4)
Control and Indicators
• Push Buttons: 1× Port Select and 1× EDID Copy
• LED Indicators: 2× Computer Ready (Green), 2× Computer Selected (Red), 1× EDID Copy
• Control Methods: Hotkey and Push Button
EDID and Architecture
• EDID and HDCP Architecture: Always-Active Engine
• EDID Management: Copy, Auto and Default
Physical
• Dimensions (H × W × D): 44 × 160 × 100mm
• Weight: 640g
