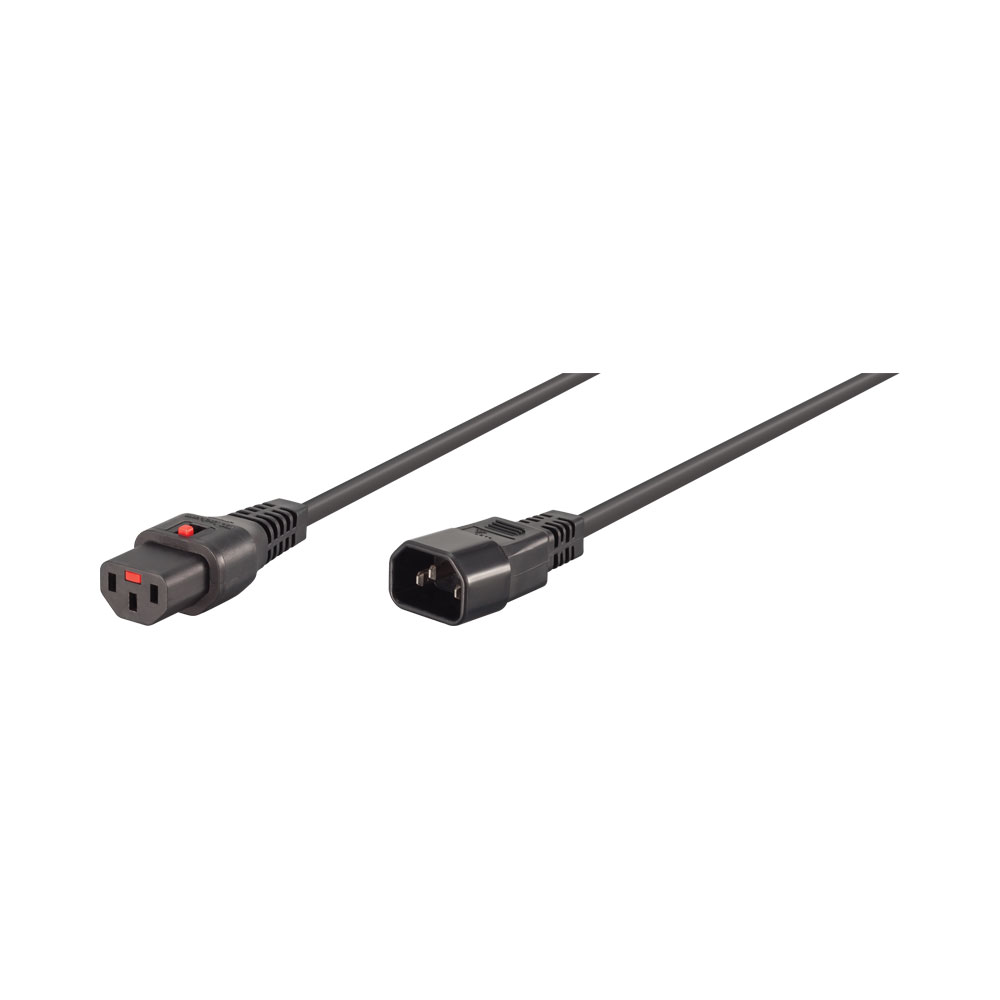

Scolmore 2M C13 F TO C14 M LOCKABLE POWER CABLE BLACK

Product Description

The Scolmore 2M C13 F TO C14 M LOCKABLE POWER CABLE BLACK is a high-performance solution from Scolmore, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Secure IEC Locking Design – Locks firmly into the C13 inlet to prevent accidental power loss
• C14 to C13 Configuration – Ideal for servers, UPS systems, PDUs and network equipment
• Professional-Grade Cable – 3G 1.00mm² H05VV-F construction for reliable power delivery
• 2m Cable Length – Provides flexible routing inside racks and cabinets
• Data Centre Ready – Perfect for mission-critical IT and AV installations

Technical Specifications:
FEATURES

• Secure IEC Locking Design – Locks firmly into the C13 inlet to prevent accidental power loss
• C14 to C13 Configuration – Ideal for servers, UPS systems, PDUs and network equipment
• Professional-Grade Cable – 3G 1.00mm² H05VV-F construction for reliable power delivery
• 2m Cable Length – Provides flexible routing inside racks and cabinets
• Data Centre Ready – Perfect for mission-critical IT and AV installations
• Durable Build Quality – Built for continuous use in demanding environments

SPECIFICATIONS

• Connector A: C14 Moulded Straight Connector (IEC 60320)
• Connector B: C13 Moulded IEC Lock Straight Connector (IEC 60320)
• IEC Lock Retention Force: >100N Withdrawal Force for Secure Connection
• Rated Voltage and Current: 10A 250V
• Application: Suitable for Rough and U
• Conductor Cross Sectional Area: 1.00mm²
• Conductor Material: Bare Copper (99.97%)
• Jacket Material: PVC
• Jacket Wall Thickness: 0.8mm
• Jacket Elongation: 150%
• Insulation Material: PVC (Colour Coded)
• Insulation Wall Thickness: 0.6mm
• Insulation Elongation: 150%
• Nominal Resistance: 19.5 Ohm/km
• Overall Cable Diameter: 7.1mm
• Bend Radius: 35.5°
• Rated Temperature: -15 to +70°C
• Standards Compliance:
IEC /BS EN 60320-1:2015 (VDE File 40016055)
IEC /BS EN 60320-3:2014 (VDE File 40016055)
DIN EN 50525-2-11: 2012-01 (VDE File 40010839)
BS EN 50525-2-11: 2011 (VDE File 40010839)
