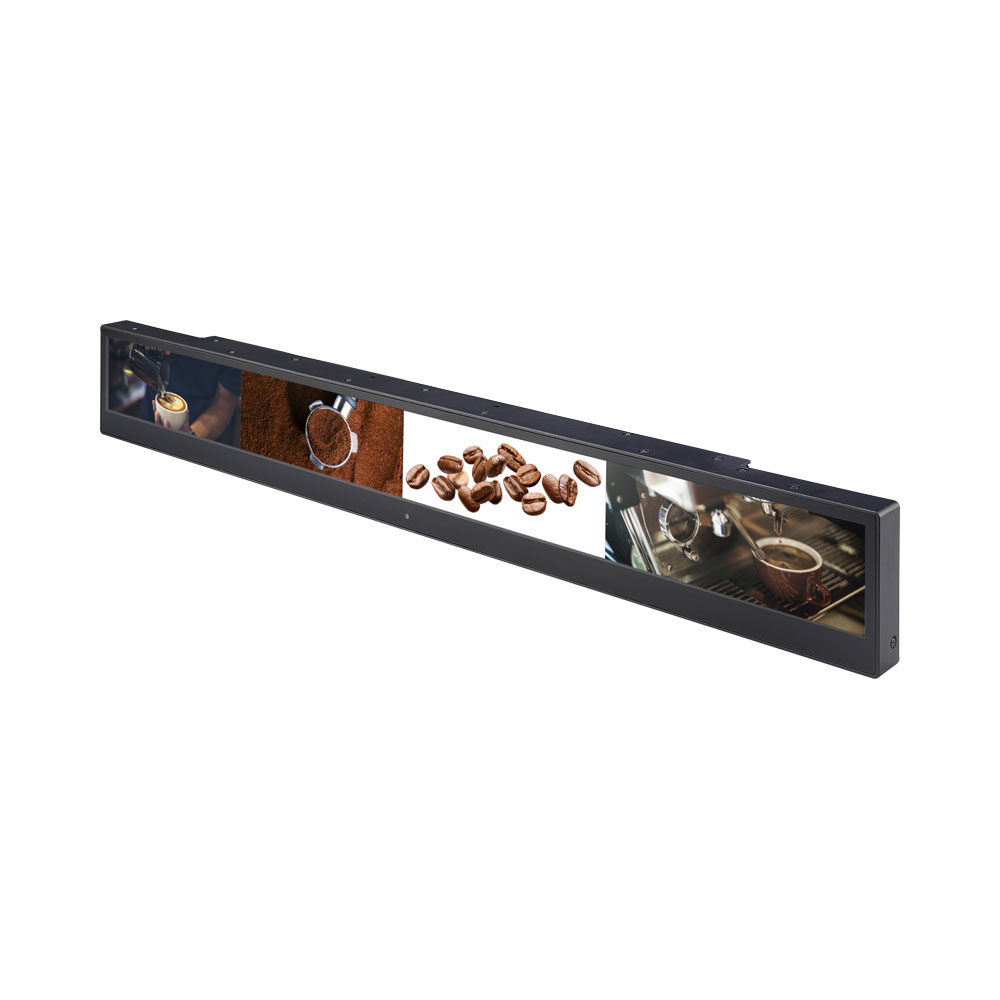

Shuttle 21 INCH BAR ANDROID SIGNAGE PLAYER POE

Product Description

The Shuttle 21 INCH BAR ANDROID SIGNAGE PLAYER POE is a high-performance solution from Shuttle, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Display: 23.1″ Stretched LCD (1920 × 158 Pixels), ~400 Nits Brightness
• Processor: ARM-Based (Rockchip RK3399) With Integrated GPU
• Operating System: Android (Android 7.x)
• Memory & Storage: 2 GB RAM and 16 GB eMMC Onboard
• Connectivity: Wi-Fi (802.11ac), Ethernet (10/100), Optional LTE Modem

Technical Specifications:
FEATURES

• Display: 23.1″ Stretched LCD (1920 × 158 Pixels), ~400 Nits Brightness
• Processor: ARM-Based (Rockchip RK3399) With Integrated GPU
• Operating System: Android (Android 7.x)
• Memory & Storage: 2 GB RAM and 16 GB eMMC Onboard
• Connectivity: Wi-Fi (802.11ac), Ethernet (10/100), Optional LTE Modem
• Camera: Built-In 2 MP Camera Module – Used for Optional Gender/Age Biometric Trigger Content
• Audio: Built-In Speakers + Line-Out Available
• Mounting & Protection: VESA Mounting Support; Front Panel IP54 (Dust/Splash Protection)
• Operation: Fanless, 24/7 Rated for Continuous Commercial Use

SPECIFICATIONS

• Processor: ARM Cortex Hexa-Core 1.8GHz
• Storage Interface: eMMC 16GB
• Dimensions: 603mm × 75mm × 29mm
• Web Cam: 2MP FHD
• Screen: 23.1″ LCD (1920 × 158), 400 Nits
• I/O: 1× USB2.0, 1× Micro SD, 1× RJ-45, 1× DC In, 1× Audio Out, 2× ATX 2-Pin, 1× SIM Card Slot (Optional)
• Network: Ethernet: 10/100 Mbps,Wi-Fi: 802.11 a/b/g/n/ac, 4G LTE: M.2 Type (Optional)
• Communication: 1× 2W Speaker
• VESA Mount: 100 × 100mm, 75 × 75mm, 50 × 50mm
• Certification: CB, CE, ETL, FCC, VCCI, RCM, BSM
• Operating Temperature: 0–40°C
• Adapter: 12V / 2A 24W External Adapter, PoE Support (Optional)
• IP Level: Front Panel IP54 Certified
