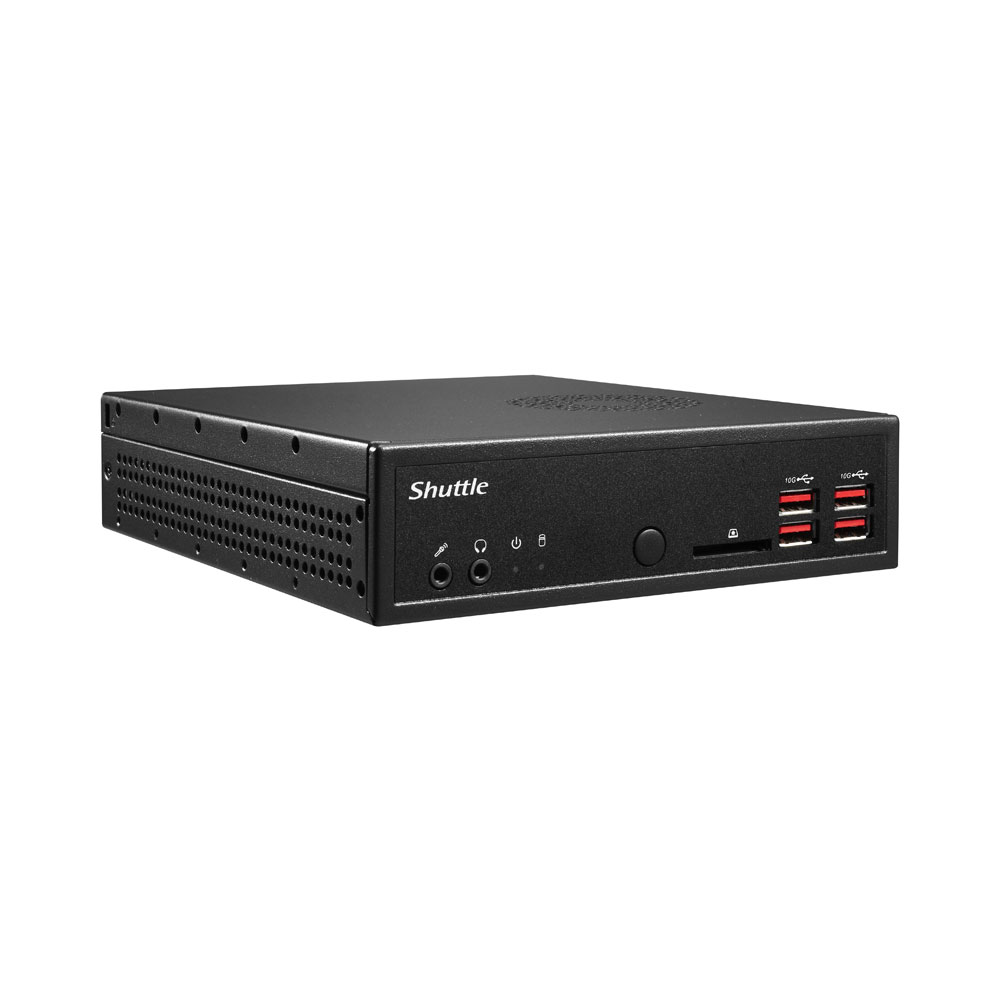

Shuttle DHU32U I5 XPC SLIM INDUSTRIAL QUAD DISPLAY PC – 2X LAN

Product Description

The Shuttle DHU32U I5 XPC SLIM INDUSTRIAL QUAD DISPLAY PC – 2X LAN is a high-performance solution from Shuttle, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Slim industrial mini PC with metal chassis and VESA mount support, ideal for digital signage, kiosks, surveillance, control rooms, and healthcare environments
• Supports quad Ultra HD displays via 4× HDMI 2.0b outputs at 60 Hz
• Powered by 11th Gen Intel Tiger Lake-U processors (e.g., Intel Core i5-1135G7)
• Dual Gigabit LAN ports for robust networking
• Up to 64 GB DDR4 memory support via 2× SO-DIMM slots

Technical Specifications:
FEATURES

• Slim industrial mini PC with metal chassis and VESA mount support, ideal for digital signage, kiosks, surveillance, control rooms, and healthcare environments
• Supports quad Ultra HD displays via 4× HDMI 2.0b outputs at 60 Hz
• Powered by 11th Gen Intel Tiger Lake-U processors (e.g., Intel Core i5-1135G7)
• Dual Gigabit LAN ports for robust networking
• Up to 64 GB DDR4 memory support via 2× SO-DIMM slots
• Flexible storage with a 2.5″ SATA bay and M.2-2280 slot (plus optional wireless module slot)
• Multiple USB ports including USB3.2 Gen1 and Gen2 for peripherals
• Integrated Intel Iris Xe or UHD Graphics depending on CPU selection
• I/O includes RS-232 and RS-232/422/485 serial ports and audio line-out/mic-in
• Supports operation in ambient temperatures up to ~50 °C for demanding environments
• External 19 V DC / 90 W power adapter included

SPECIFICATIONS

• Dimensions: 190 x 165 x 43mm
• Weight: 2.1kg
• CPU: Supports Intel i7, i5, i3 and Pentium
• RAM: Up to 2x DDR4. Max. 64GB
• Storage: 1x 2.5″ hard drive bay, 1x M.2-2280 M-Key
• GPU: i5 and i7 processor supports Intel Xe graphics; Pentium and i3 processor supports Intel UHD graphics
• Video Ports: Quad display via 4x HDMI2.0b simultaneously
• LAN/Wireless: Dual gigabit LAN
• USB Ports: 4x USB3.2 Gen 1 and 4x USB3.2 Gen 2
• IO: 1x RS232 DB9 port and 1x RS232 / 422 / 485 DB9 port
• Audio: Line-out and mic-in
• Kensington: Yes
• Power: 19V 4.74A, 90W AC adapter, extended power connector
