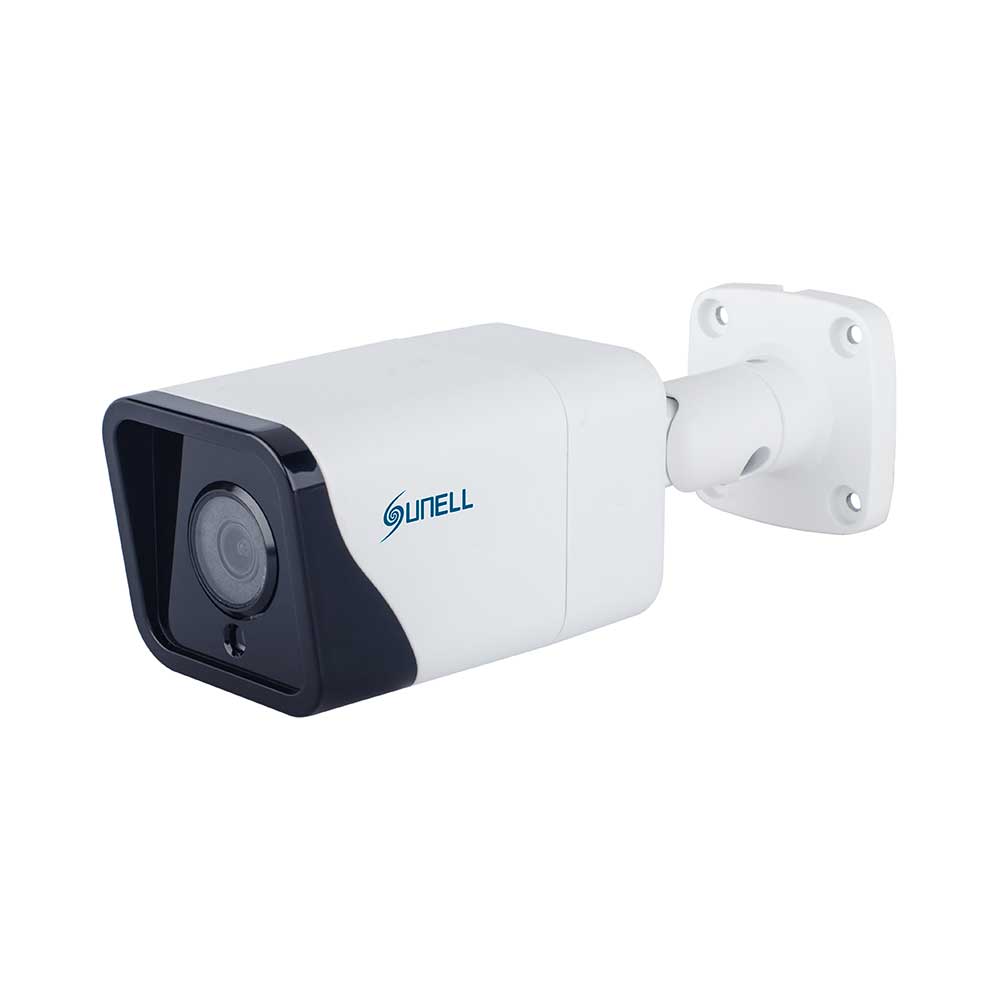

SUNELL SECURITY SUNELL IP MINI BULLET 2MP CMOS, 2.8,1920X1080, POE

Product Description

The SUNELL SECURITY SUNELL IP MINI BULLET 2MP CMOS, 2.8,1920X1080, POE is a high-performance solution from SUNELL SECURITY, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 1/2.7″ Progressive Scan CMOS
• 25fps/30fps@2MP(1920*1080)
• Triple Streams
• Smart IR Up to 30m
• Low bitrate, Excellent low light performance

Technical Specifications:
FEATURES

• 1/2.7″ Progressive Scan CMOS
• 2.8mm
• 25fps/30fps@2MP(1920*1080)
• Triple Streams
• Smart IR Up to 30m
• Low bitrate, Excellent low light performance
• WDR, 3D DNR
• ROI, Defog, HLC, Corridor mode, DIS
• IP67

SPECIFICATIONS

CAMERA
• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Effective Pixels: 1920(H)×1080(V)
• Scanning System: Progressive
• Electronic Shutter: 1/5–1/20000s
• Min. Illumination: Color: 0.01Lux@(F1.2, AGC ON), B/W: 0Lux@(IR LED ON)
• S/N Ratio: 55dB
• IR Range: Up to 30m
• IR On/Off Control: Auto/Manual
• IR LEDs: 24pcs
• Pan/Tilt/Rotation Range: Pan: 0˚~360˚, Tilt: 0˚~90˚, Rotation: 0˚~360˚

LENS
• Lens Type: Fixed
• Iris: Fixed Iris
• Focal Length: 2.8mm (3.6mm Optional)
• F Number: F2.0
• Angle of View: 105°
• Focus Control: Fixed
• Close Focus Distance: 0.5m

VIDEO
• Compression: H.265, H.265, MJPEG
• Max. Resolution: 1080P (1920×1080)
• Streaming Capability: 3 Streams
• Stream/Frame Rate: Stream1: 1920×1080/1280×720 @25/30fps
• Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps;
• Stream3: VGA/CIF/QVGA @25/30fps
• Bit Rate Control: CBR/VBR
• Bit Rate: Stream 1: 500kbps~12000kbps; Stream2: 100kbps~6000kbps; Stream3: 100kbps~3000kbps
• Day/Night: ICR
• Image Enhancement: HLC / Defog / WDR (120dB)
• White Balance: Support
• Gain Control: Auto/Manual
• Noise Reduction: 2D/3D DNR
• Electronic Image Stabilization (EIS): Support
• Smart IR: Support
• Mirror: Support
• Region of Interest: Support
• Motion Detection: Support
• Privacy Masking: Support

AUDIO
• Compression: N/A
• Bit Rate: N/A

NETWORK
• Protocols: IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP
• Interoperability: ONVIF
• Streaming Method: Unicast
• Max. User Access: 10 Users
• Web Viewer: <IE11, Chrome, Firefox
• Management Software: IMS 3.0
• Smart Phone: IOS, Android

INTELLIGENCE
• IVS: Perimeter, Single Virtual Fences, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad

INTERFACE
• Ethernet: 1 Ethernet (10/100 Base-T) RJ-45 Connector
• Audio Interface: N/A
• Alarm: N/A
• RS485: N/A
• BNC Output: N/A
• Reset Button: N/A
• Edge Storage: N/A

ELECTRICAL
• Power Supply: DC12V/POE
• Power Consumption: 2W (IR LED OFF), 4.5W (IR LED ON)
• Operating Temperature: Starting • Temperature: -30°C ~ 50°C
• Working Temperature: -30°C ~ 50°C
• Operating Humidity: Less than 90% RH
• Ingress Protection: IP67
• Certifications: CE / FCC
• Casing: Metal
• Dimensions: 194.4×63×63mm
• Net Weight: 500g
