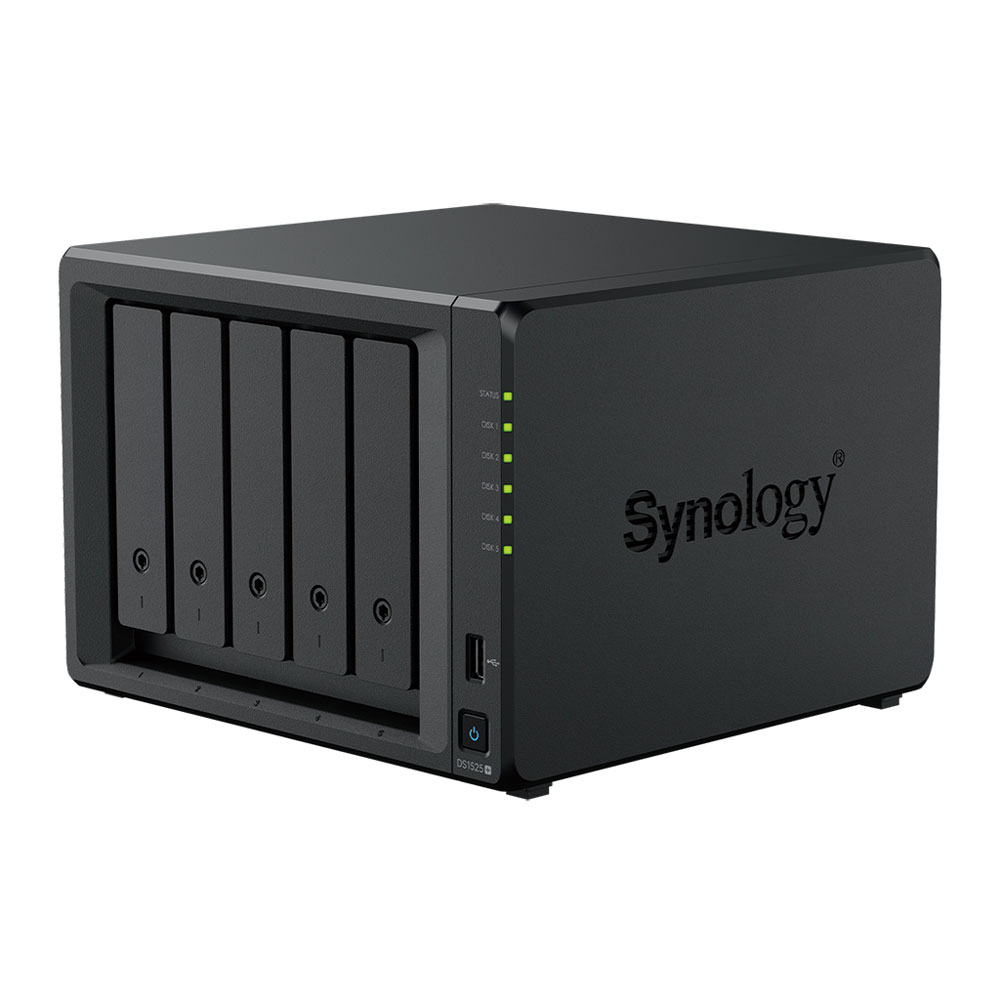

SYNOLOGY DS1525+ 5-Bay,8GB, AMD CPU – DISKLESS

Product Description

The SYNOLOGY DS1525+ 5-Bay,8GB, AMD CPU – DISKLESS is a high-performance solution from SYNOLOGY, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Dependable Performance – Up to 1,181/1,180MB/s sequential read/write throughput supports stable data transfers
• Fast Networking – Built-in 2.5GbE ports for fast connectivity out of the box with support for 10GbE
• Versatile Network Storage – Leverage built-in file and photo management, data protection, virtualisation and surveillance solutions
• Capacity Expansion – Add 10× extra drive bays for up to 300TB of raw storage with two DX525 expansion units
• Extendable Product Support – Backed by Synology’s 3-year limited hardware warranty, extendable to 5-years in select markets

Technical Specifications:
FEATURES

• Dependable Performance – Up to 1,181/1,180MB/s sequential read/write throughput supports stable data transfers
• Fast Networking – Built-in 2.5GbE ports for fast connectivity out of the box with support for 10GbE
• Versatile Network Storage – Leverage built-in file and photo management, data protection, virtualisation and surveillance solutions
• Capacity Expansion – Add 10× extra drive bays for up to 300TB of raw storage with two DX525 expansion units
• Extendable Product Support – Backed by Synology’s 3-year limited hardware warranty, extendable to 5-years in select markets

SPECIFICATIONS

Performance
• CPU: AMD Ryzen V1500B, Quad-Core 2.2GHz, 64-bit
• Hardware Encryption Engine: Yes (AES-NI)
• Memory: 8GB DDR4 ECC SODIMM (Expandable up to 32GB / 16GB ×2)
Storage
• Drive Bays: 4× 3.5″/2.5″ SATA HDD/SSD
• Maximum Drive Bays with Expansion: up to 9×
• M.2 NVMe Slots: 2× M.2 2280 NVMe SSD (Cache Support)
• Supported RAID: Basic, JBOD, RAID 0, 1, 5, 6, 10, Synology Hybrid RAID
• Hot-Swap Drives: Yes
Network and Expansion
• LAN Ports: 2× 2.5GbE RJ45
• USB Ports: USB3.2 Gen1
• Expansion Ports: 2× USB Type-C
• PCIe Slot: 1× Gen3 x2 (Network Upgrade Support)
Performance and Scalability
• Maximum Single Volume Size: 200TB (16GB Memory Required)
• Maximum Internal Volume Number: 128×
• Maximum Shared Folders: 256×
• Maximum Local Users: 1,024×
• Maximum Concurrent SMB Connections: 500×
• Maximum iSCSI Targets: 128×
• Maximum LUNs: 256×
Virtualisation and Business Features
• Virtual Machine Manager: Supported
• Synology High Availability: Supported
• Snapshot Replication: Yes
• Btrfs File System: Supported
• Hardware-Accelerated Encryption: Yes
Surveillance Station
• Default Camera Licences: 2×
• Maximum IP Cameras (H.264): up to 40 Channels
• Maximum IP Cameras (H.265): up to 40 Channels
Power and Physical
• Power Supply: 120W
• AC Input: 100~240V AC
• Power Consumption: 45.6W (Access), 14.5W (HDD Hibernation)
• Noise Level: 19.8dB(A)
• Dimensions (H × W × D): 166 × 199 × 223mm
• Weight: 2.2kg
Environment
• Operating Temperature: 0~40°C
• Storage Temperature: -20~60°C
• Humidity: 5~95% RH
Warranty
• 3-Year Hardware Warranty (Extendable to 5-Years with Extended Warranty Plus)
