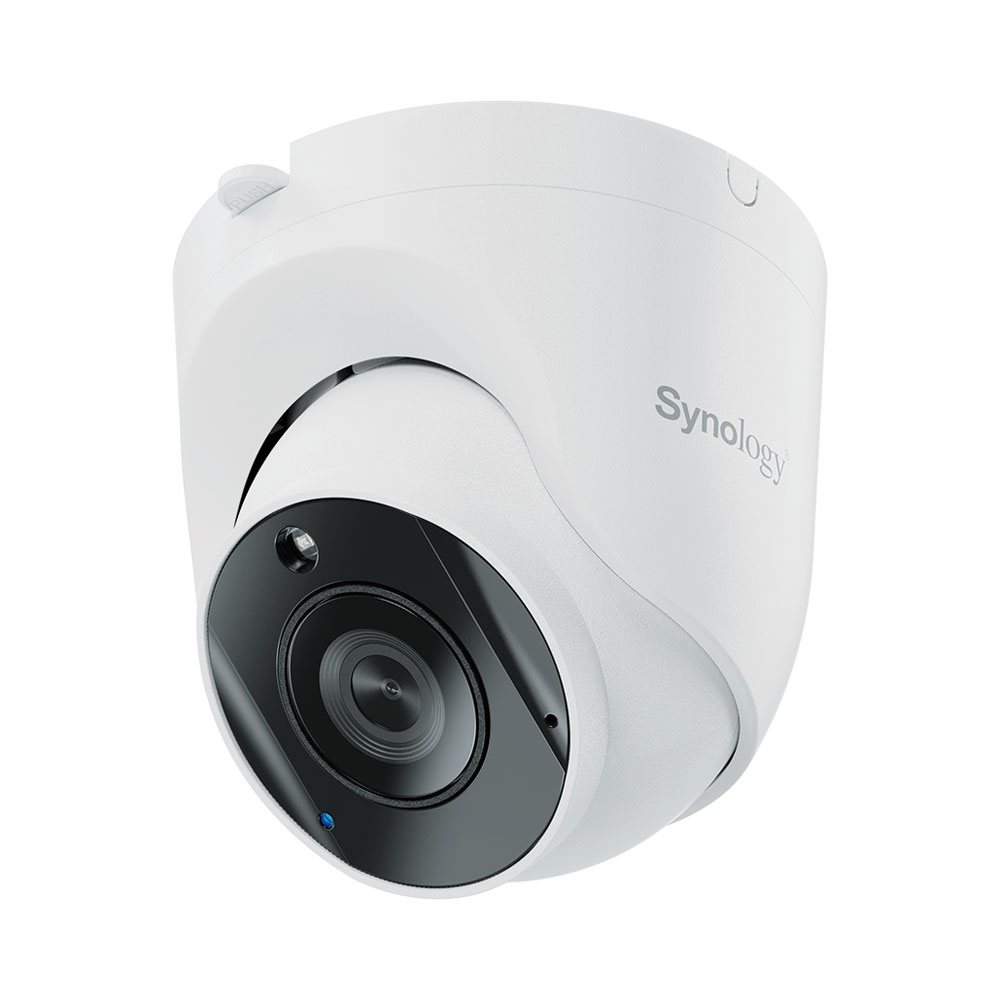

SYNOLOGY NETWORK CAMERA TC500 APAC

Product Description

The SYNOLOGY NETWORK CAMERA TC500 APAC is a high-performance solution from SYNOLOGY, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Crisp Video, Night and Day – 5MP sensor with wide-angle lens, recording @30FPS, and high-power IR LED for 30m of night vision
• Edge AI Detection and Search – On-camera AI powers people and vehicle detection, intrusion detection and instant search
• No Device License Required – Camera requires no Surveillance Station Device License or activation
• Failover Edge Recording – Supports failover recording onto microSD, in case of network failure
• Security and Compliance – Suitable for sensitive applications thanks to HTTPS/SRTP support and US NDAA/TAA compliance

Technical Specifications:
FEATURES

• Crisp Video, Night and Day – 5MP sensor with wide-angle lens, recording @30FPS, and high-power IR LED for 30m of night vision
• Edge AI Detection and Search – On-camera AI powers people and vehicle detection, intrusion detection and instant search
• No Device License Required – Camera requires no Surveillance Station Device License or activation
• Failover Edge Recording – Supports failover recording onto microSD, in case of network failure
• Security and Compliance – Suitable for sensitive applications thanks to HTTPS/SRTP support and US NDAA/TAA compliance

SPECIFICATIONS

Hardware SPECIFICATIONS

Optical
Image Sensor: 1/2.7″
IR LED Wavelength: 850nm
Max. IR Distance: 30m (0.001 lux)
Shutter Speed: 1/16000 s to 1/30 s
Day & Night: Automatically Removable Infrared-Cut Filter

Lens
Lens TypeF: ixed Focal
Focal Length: 2.8mm
Field of View: 110° H, 56° V, 132° D (LDC ON)
DORI: D: 60m, O: 24m, R: 12m, I: 6m
Aperture: F1.8

Video
Max. Video Resolution: 2880×1620 @30FPS
Multi-Exposure HDR: Yes
DNR: 3DNR, 2DNR

Audio
Microphone: Yes

I/O
Ethernet: 1× RJ45 10M/100M Ethernet Port
Reset: Yes
On-Board Storage: 1× MicroSD Card Slot, Support Micro SDHC/SDXC Card up to 128GB
Supported File Format: exFAT
Note: SD card is not included

Power Supply
IEEE 802.3af Type 1 Class 3 or 12V DC
Note: Compatible DC power adapter: 12V/1A (Ø2.1mm)
The product does not include a PoE switch or a 12V DC power adapter. Please purchase separately.

General
Form Factor: Turret
Dimensions: Ø97×88mm
Weight: 387g

Temperature
Operating Condition: Starting Temperature: -30°C to 50°C
Operating Temperature: -30°C to 50°C (IR Off)
Operating Temperature: -30°C to 40 °C (IR On)
Operating Humidity: 5%~95% (Non-Condensing)
Storage Condition: Storage Temperature: -40°C to 60°C
Storage Humidity: 5%~95% (Non-Condensing)

Certifications
FCC, CB, IC, CE, UKCA, BSMI, VCCI, RCM, KC, JATE
Environment: REACH Compliant, WEEE Compliant, ROHS Compliant
Waterproof: IP67
Vandal: IK10
NDAA Compliant: Yes
TAA Compliant: Yes
Warranty: 3-Years

Software SPECIFICATIONS

Video & Audio
Main Stream: 2880 × 1620 @30FPS; 2560 × 1440 @30FPS; 2304 × 1296 @30FPS; 1920 × 1080 @30FPS; 1280 × 720 @30FPS
Sub Stream: 1920 × 1080 @15FPS; 1280 × 720 @30FPS
Video Format: H.264, H.265
Bitrate Control: VBR, MBR
Audio Compression: G.711
Audio Denoise: Yes
Image Adjustment: Brightness, Contrast, Sharpness, Saturation, White Balance, Exposure Control, High Dynamic Range (HDR), 3D/2D Noise Reduction, 50/60 Hz Flicker Reduction, Day/Night Mode, Overlay
Day/Night Mode: Auto, Day, Night, Schedule
Video Orientation: Mirror, Flip, Rotation (0°, 90°, 180°, 270°)
Privacy Mask: Removeable/Unremovable Mode, up to 5 zones
Max RTSP Connections: 4

Analytics
Event Analytics: Audio Detection, Tampering Detection, Motion Detection
People & Vehicle: People Detection, Vehicle Detection, Crowd Detection, Loitering Detection
Intrusion: One-Way or Two-Way
Instant Search: Motion, Vehicle, People

Security
IP Filter: Auto Block, Allow/Block list
Connection Management: Yes
Firmware Update: Automatically Update to the Important Version, Automatically Update to the Latest Version, Manual Upload
Signed Firmware: Yes
HTTPS: Yes
SRTP: Yes

Storage Management
Storage: SD Card & Synology NAS
SD Card Recording Mode: Event Analytics, Disconnected with NAS
Note: SD Card capacity under 128GB is tested by Synology

Camera Web Interface
Liveview: Yes
Network: Auto Block, Allow/Block List, Connection Management, Fixed IP/DHCP
System: Reset, Restart, Manual Firmware Upgrade, DST, Time Zone, NTP Server
Camera Log Export: Yes
Supported Browsers: Google Chrome
Supported Language: English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

Software Requirement
Surveillance Station: Surveillance Station 9.1 or Higher
Surveillance Station Client: Surveillance Station Client Version 2.1.0 or Higher
DS Cam: Android DS cam 3.7.0 or Higher, iOS DS cam 5.6.0 or Higher
Camera Tool: 1.0.0
Note: Built-in Surveillance Device License
