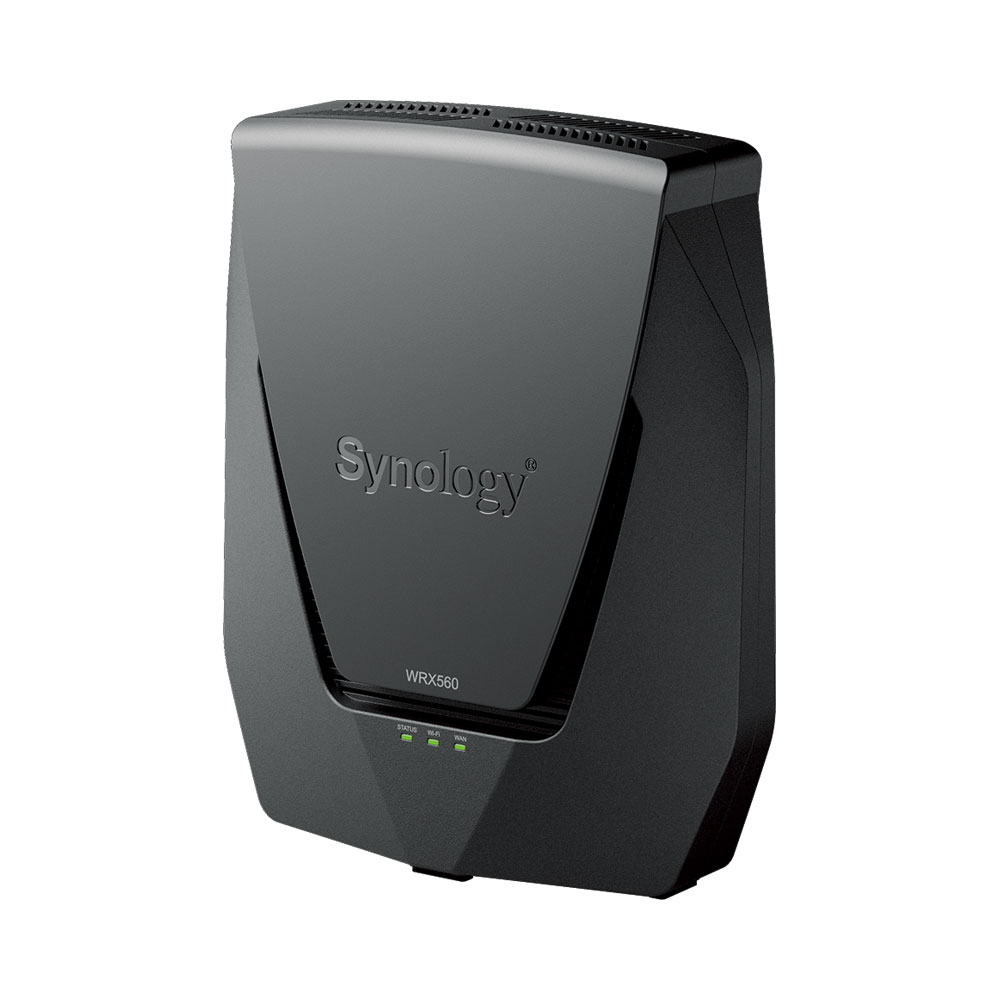

SYNOLOGY WRX560 WIRELESS ROUTER V1.0

Product Description

The SYNOLOGY WRX560 WIRELESS ROUTER V1.0 is a high-performance solution from SYNOLOGY, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Speedy Performance – Dual-band Wi-Fi 6 with 5.9 GHz support and configurable WAN/LAN 2.5GbE port enable fast wireless and wired transfers
• Advanced Network Security – Comprehensive network security provided through Threat Prevention, VLAN segmentation, and WPA3 support
• Mesh Ready – Standalone router that can be incorporated into a mesh system for whole home coverage
• Safe Internet Access for Families – Parental controls and web filtering keep your family protected
• Easy Setup and Management – DS router app provides easy-to-follow setup and network management through your mobile device

Technical Specifications:
FEATURES

• Speedy Performance – Dual-band Wi-Fi 6 with 5.9 GHz support and configurable WAN/LAN 2.5GbE port enable fast wireless and wired transfers
• Advanced Network Security – Comprehensive network security provided through Threat Prevention, VLAN segmentation, and WPA3 support
• Mesh Ready – Standalone router that can be incorporated into a mesh system for whole home coverage
• Safe Internet Access for Families – Parental controls and web filtering keep your family protected
• Easy Setup and Management – DS router app provides easy-to-follow setup and network management through your mobile device
• Simple Remote Access – Comprehensive VPN server solution with remote desktop and site-to-site tunnelling enables flexible and secure remote connectivity

SPECIFICATIONS

CPU
• Quad Core 1.4GHz
• Hardware Acceleration Engine: Layer 4 / Layer 7
Memory
• 1GB DDR3
Wireless (Wi-Fi 6 / IEEE 802.11ax)
• 4×4 MIMO High-Performance Internal Antenna (5.0GHz)
• 2×2 MIMO High-Performance Internal Antenna (2.4GHz)
• 2.4GHz: 600Mbps
• 5.0GHz: 2,400Mbps
• Simultaneous Dual-Band Wi-Fi
• Wi-Fi Encryption: WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal/Enterprise, OWE
LAN / WAN
• WAN Ports: 1× 2.5GbE (Dual WAN)
• LAN Ports: 3× Gigabit, 1× Gigabit
External Ports
• 1× USB3.2 Gen1 (DC5V 0.9A Power Output)
Physical
• Dimensions (H × W × D): 223 × 194 × 65mm
• Weight: 1.35kg
Power
• AC Input Power Voltage: 100~240VAC
• Power Frequency: 50/60Hz, Single Phase
• Power Consumption: 10.8W (Access), 7.94W (Idle)
Environment
• Operating Temperature: 5~40°C
• Storage Temperature: -20~60°C
• Relative Humidity: 5~95% RH
• RoHS Compliant
SRM (Synology Router Manager) SPECIFICATIONS
Wireless Capabilities
• Maximum Number of Wi-Fi SSID: 10×
• Seamless Roaming: 802.11k/v/r Support
• Guest Network: Yes
• Scheduled Wi-Fi: Yes
• WPS2.0: Yes
• 3G/4G Dongle and Tethering: Yes
• Primary Wi-Fi Point: Yes
• Recommended Maximum Number of Wi-Fi Points: 1× Primary + 6× Wi-Fi Points (Wireless Uplink), 1× Primary + 12× Wi-Fi Points (Wired Uplink)
• Maximum Connected Devices: 150×
Network Features
• Dual WAN: Yes
• IPv4 / IPv6 Support: Yes
• DHCP Server / Client / Static IP: Yes
• NAT: Yes
• LAN/WLAN IGMP Snooping: Yes
• Policy Route: Yes
• Static Route: Yes
• Maximum DHCP Reservations: 500×
• Maximum IPv4 Static Routes: 100×
• Maximum IPv6 Static Routes: 100×
VPN
• VPN Server (WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site VPN)
• VPN Client (PPTP, OpenVPN, L2TP/IPSec)
• Maximum Site-to-Site VPN Tunnels: 10×
• Maximum OpenVPN Connections: 20×
Security
• Firewall
• DoS Protection
• Auto Block
• SSL Certificate Support
• Two-Factor Authentication
• Safe Access (Web Filter, Time Quota, Schedule, URL Block/Allow List)
• Threat Prevention (Deep Packet Inspection)
Traffic Management
• Application Layer (L7) Quality of Service (QoS)
• Bandwidth Control per Device
• Live Traffic Monitoring
• Historical Statistics (Daily, Weekly, Monthly, Annual)
• Traffic Reports Export (.csv, .html)
Download Station
• Maximum Concurrent Download Tasks: 20×
• Maximum Concurrent BT Download Tasks: 20×
Media and Services
• Media Server: DLNA Compliance
• DNS Server: Yes
• RADIUS Server: Yes
Mobile Apps
• DS Router (Android/iOS)
• VPN Plus (Android/iOS)
• DS Get (Android)
• DS File (Android/iOS)
Management
• Synology Router Manager (SRM)
• QuickConnect & DDNS
• Wake on LAN (WOL)
• SNMP
• SSH
• Configuration Backup & Restore
• User Account Management
File & USB/SD Card Support
• File System: EXT4, FAT, NTFS, HFS+
• Protocol Support: CIFS/SMB, AFP, FTP/FTPS, WebDAV
• Apple Time Machine: Yes
• Shared Folder Privileges: Yes
Warranty
• 2-Years
