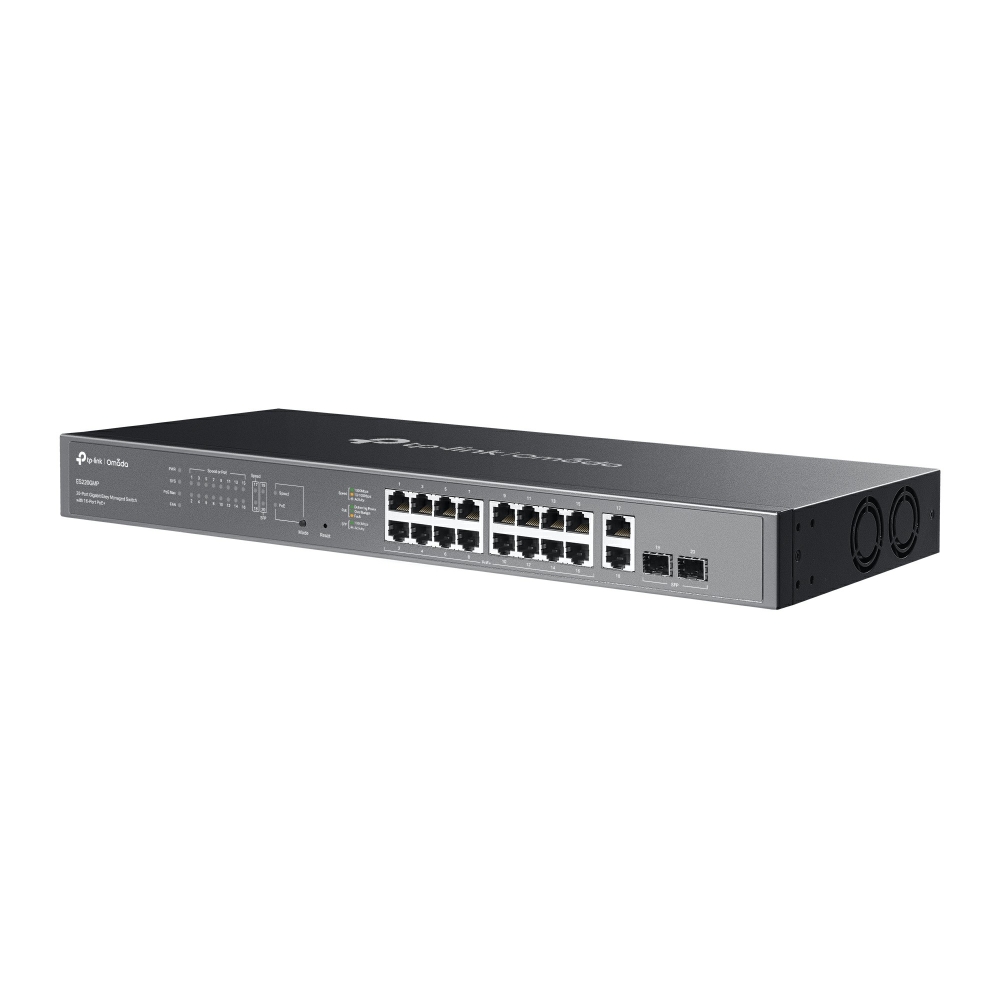

TP-Link 20P GB MANAGED 16P POE+ 2SFP

Product Description

The TP-Link 20P GB MANAGED 16P POE+ 2SFP is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
• 2× Gigabit RJ45 port, 2× Gigabit SFP port
• 250W Power Budget, with up to 30W for each PoE port
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app

Technical Specifications:
FEATURES

• 16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
• 2× Gigabit RJ45 port, 2× Gigabit SFP port
• 250W Power Budget, with up to 30W for each PoE port
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app
• Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Durable metal casing and rack-mountable design

SPECIFICATIONS

HARDWARE FEATURES
Interface:
• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)
• 2× 10/100/1000 Mbps RJ45 Port
• 2× Gigabit SFP Slot
Fan Quantity: 2
Installation: Rackmountable
Physical Security Lock: Yes
Power Supply: 100–240 VAC, 50/60 Hz
PoE Ports (RJ45):
• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 16 ports
• PoE Budget: 250W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery
• Up to 250m PoE transmission distance
Dimensions ( W x D x H ): 440 × 180 × 44mm
Surge Protection: ±6kV

PERFORMANCE
• Switching Capacity: 40Gbps
• Packet Forwarding Rate: 29.76Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4Mbit
• Jumbo Frame: 15KB

SOFTWARE FEATURES
Quality of Service:
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port-Based Rating Limit
• Storm Control
– Multiple Control Modes (kbps/pps)
– Broadcast/Multicast/Unknown-Unicast Control
L2 Features:
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Ingress/Egress/Both
• Port Statistics
– Port Mirror Status
– Traffic Statistics
• 802.1ab LLDP
L2 Multicast:
• IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
VLAN:
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
– Max 32 VLAN Groups
– 4K VID
Transmission Method: Store-And-Forward

MANAGEMENT FEATURES
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
Management Features:
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration

OTHERS
Certification: FCC, CE, RoHS

Environment:
• Operating Temperature: -5°C~50°C
• Storage Temperature: -40°C~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
