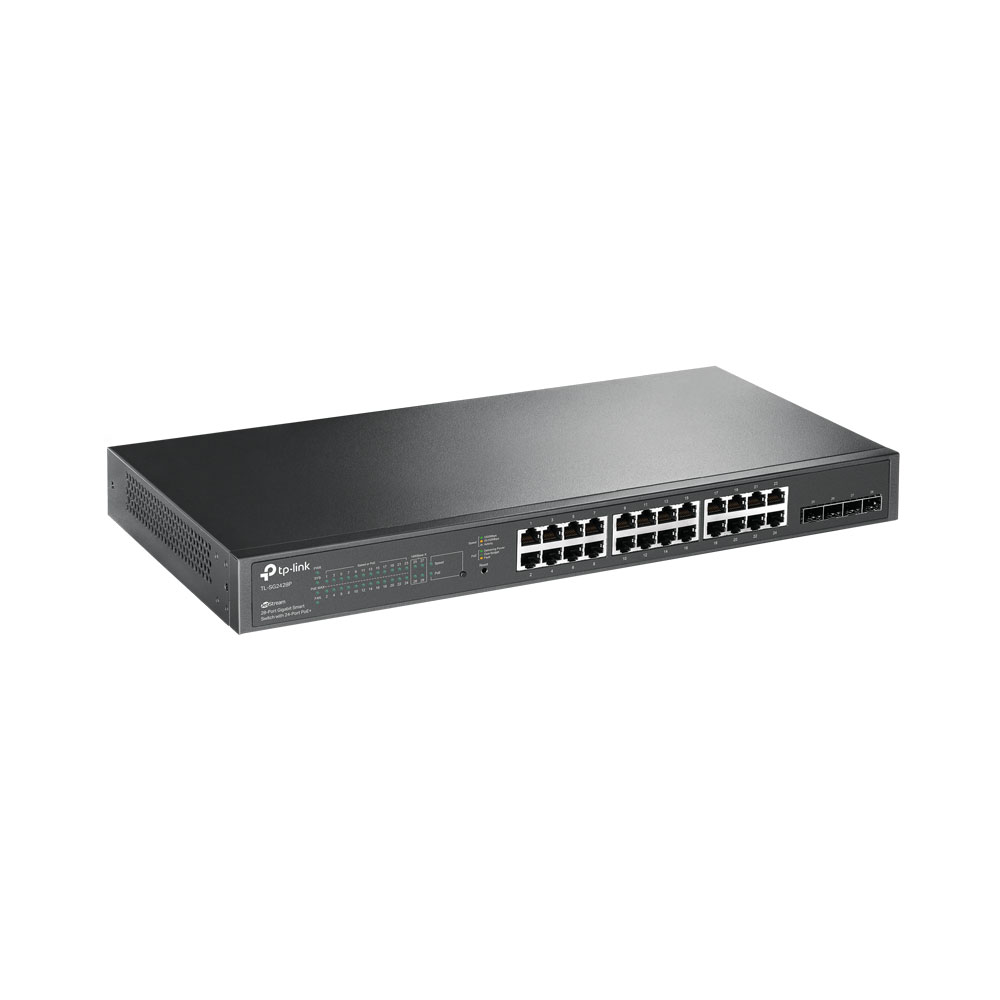

TP-Link 24-PORT GBE POE+, 4SFP OMADA CLOUD SWITCH

Product Description

The TP-Link 24-PORT GBE POE+, 4SFP OMADA CLOUD SWITCH is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 250W PoE Budget: 24x 802.3at/af-compliant PoE+ ports with a total power supply of 250W
• Full Gigabit Ports: 24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management and Intelligent Monitoring
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management
• Static Routing: Helps route internal traffic for more efficient use of network resources

Technical Specifications:
FEATURES

• 250W PoE Budget: 24x 802.3at/af-compliant PoE+ ports with a total power supply of 250W
• Full Gigabit Ports: 24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management and Intelligent Monitoring
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management
• Static Routing: Helps route internal traffic for more efficient use of network resources
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
• IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbour discovery

SPECIFICATIONS

HARDWARE
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
• Interface: 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF
• Fan Quantity: 2
• PoE+ Ports(RJ45): Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• Power Supply: 250 W
• Dimensions (W x D x H) 440 × 220 × 44mm
• Mounting: Rack Mountable
• Max Power Consumption: 32.1W (110V/ 60Hz with no PD connected)
• 308.6W (110V/ 60 Hz with 250W PD connected)
• Max Heat Dissipation: 109.53 BTU/h (with no PD connected)
• 1052.94 BTU/h (with 250W PD connected)

PERFORMANCE
• Bandwidth/Backplane: 56 Gbps
• Packet Forwarding Rate: 41.7Mbps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 9KB

SOFTWARE FEATURES
• Quality of Service:
– Support 802.1p CoS/DSCP priority
– Support 8 priority queues
– Queue scheduling: SP, WRR, SP+WRR
– Port/Flow- based Rate Limiting
– IPv6 QoS
– Voice VLAN
• L2 and L2+ Features:
– Static Routing
– DHCP Relay
– DHCP Server
– IGMP Snooping V1/V2/V3
– 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
– Spanning Tree STP/RSTP/MSTP
– BPDU Filtering/Guard
– TC/Root Protect
– Loopback detection
– 802.3x Flow Control
– LLDP, LLDP-MED
• VLAN:
– Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
– MAC/Protocol-based VLAN
• Access Control List:
– L2–L4 package filtering
– MAC ACL
– IP ACL
– Combined ACL
– IPv6 ACL
• Security:
– AAA
– Port Security
– DHCP Snooping
– IP-MAC-Port Binding
– IPv6-MAC-Port Binding
– ARP Inspection
– 802.1x and Radius Authentication
– SSH v1/v2
– SSL v3/TLSv1.2
– Broadcast/Multicast/Unknown-unicast Storm Control
– Dos Defend
• IPv6:
– Dual IPv4/IPv6 stack
– Multicast Listener Discovery (MLD) Snooping
– IPv6 neighbour discovery (ND)
– Path maximum transmission unit (MTU) discovery
– Internet Control Message Protocol (ICMP) version 6
– TCPv6/UDPv6
• IPv6 Applications:
– DHCPv6 Client
– Ping6
– Tracert6
– Telnet (v6)
– IPv6 SNMP
– IPv6 SSH
– IPv6 SSL
– Http/Https
– IPv6 TFTP

MANAGEMENT
• Omada App: Yes
• Centralized Management:
– Omada Cloud-Based Controller
– Omada Hardware Controller (OC300)
– Omada Hardware Controller (OC200)
– Omada Software Controller
• Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
• Management Features:
– Web-based GUI and CLI management
– SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs
– RMON (1, 2, 3, 9 groups)
– CPU Monitoring
– Port Mirroring
– Firmware Upgrade: TFTP & Web
– System Diagnose: VCT
– SYSLOG & Public MIBS
– Dual Image
– EEE

OTHERS
• Certification: CE, FCC, RoHS
• Environment
– Operating Temperature: 0–50 °C (32–122 ℉);
– Storage Temperature: -40–70 °C (-40–158 ℉)
– Operating Humidity: 10–90% RH non-condensing
– Storage Humidity: 5–90% RH non-condensing
• System Requirements: Microsoft Windows XP, Vista or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux
