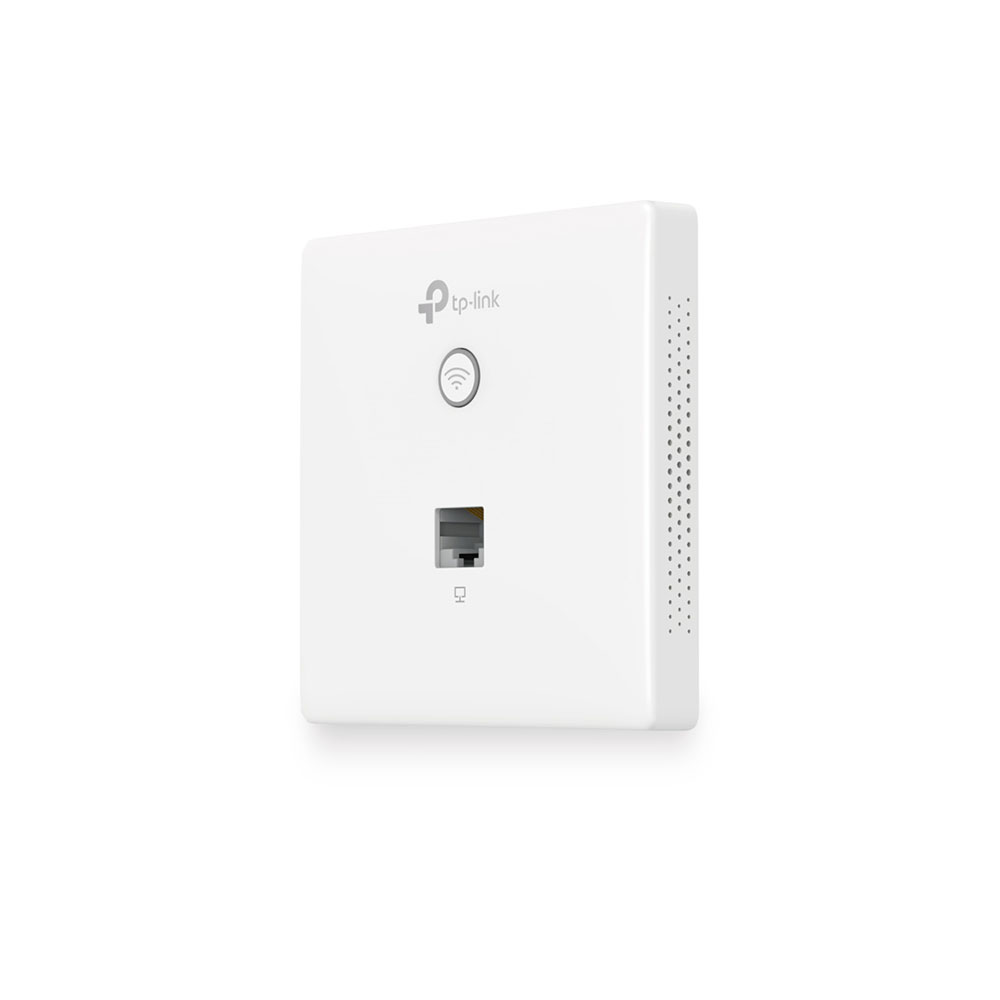

TP-Link 300MBPS 2.4G WIRELESS N FE WALL PLATE AP

Product Description

The TP-Link 300MBPS 2.4G WIRELESS N FE WALL PLATE AP is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Easy EU Wall-Box Installation – Fits into any standard EU-type data wall-box for seamless deployment
• Compact Low-Profile Design – Blends discreetly into any interior environment
• Centralised Management Software – Free Auranet Controller Software supports large-scale EAP management
• 802.3af PoE Support – Simplifies installation with convenient and cost-effective power delivery
• Enterprise-Grade Wi-Fi Security – Reduces network threats with advanced protection features

Technical Specifications:
FEATURES

• Easy EU Wall-Box Installation – Fits into any standard EU-type data wall-box for seamless deployment
• Compact Low-Profile Design – Blends discreetly into any interior environment
• Centralised Management Software – Free Auranet Controller Software supports large-scale EAP management
• 802.3af PoE Support – Simplifies installation with convenient and cost-effective power delivery
• Enterprise-Grade Wi-Fi Security – Reduces network threats with advanced protection features
• Built-In Captive Portal – Provides secure and convenient guest authentication

SPECIFICATIONS

HARDWARE FEATURES
• Interface: 2× 10/100Mbps Ethernet (RJ45) Ports

BUTTON
• LED/Wi-Fi Button
• Reset

POWER SUPPLY
• PoE (IEEE 802.3af)

POWER CONSUMPTION
• 2.8W

DIMENSIONS (W × D × H)
• 86.8 × 86.8 × 30.2mm

ANTENNA
• Internal 2× 1.8dBi Omni

MOUNTING
• Wall Plate Mounting

WATCH DOG
• System Watch Dog
• Hardware Watch Dog

WIRELESS FEATURES

WIRELESS STANDARDS
• IEEE 802.11n/g/b

FREQUENCY
• 2.4GHz

SIGNAL RATE
• 802.11n: up to 300Mbps (Dynamic)
• 802.11g: up to 54Mbps (Dynamic)
• 802.11b: up to 11Mbps (Dynamic)

TRANSMIT POWER
• CE: ≤15dBm (2.4GHz)

WIRELESS FUNCTIONS
• Multiple SSIDs (up to 8× SSIDs)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control
• QoS (WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics (SSID/AP/Client Based)

WIRELESS SECURITY
• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP
• WPA/WPA2-Enterprise
• WPA-PSK/WPA2-PSK

MANAGEMENT
• Omada Cloud Access
• Omada App
• Omada Cloud Controller
• Omada Controller Software
• EAP Controller Software
• Email Alerts
• LED On/Off Control
• Management MAC Access Control
• SNMP v1/v2c
• System Logging (Local/Remote Syslog)
• Telnet
• SSH
• Web-Based Management (HTTP/HTTPS)
• L3 Management
• Multi-Site Management
• Management VLAN

CERTIFICATION
• CE
• RoHS

SYSTEM REQUIREMENTS
• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
