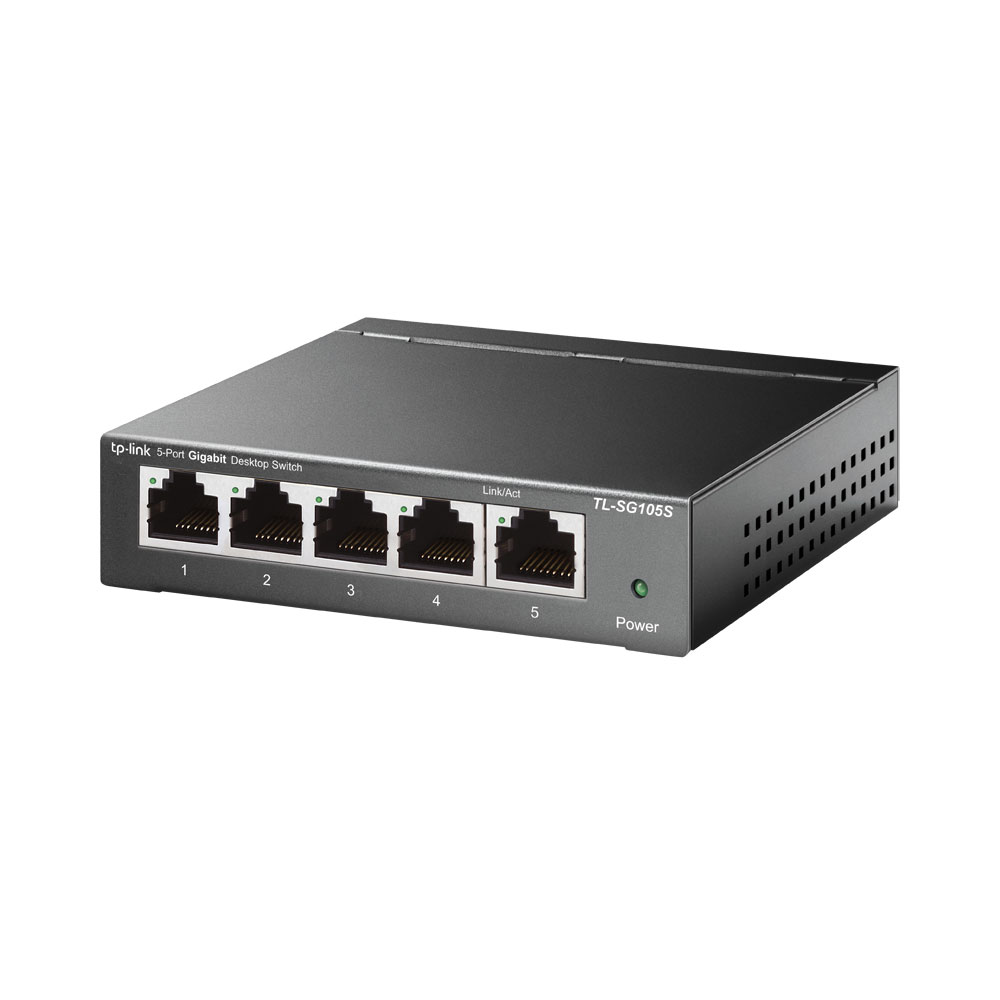

TP-Link 5-PORT GIGABIT DESKTOP SWITCH

Product Description

The TP-Link 5-PORT GIGABIT DESKTOP SWITCH is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 5x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Green Ethernet technology saves power consumption
• IEEE 802.3x flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Support 802.1p/DSCP QoS and IGMP Snooping function

Technical Specifications:
FEATURES

• 5x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Green Ethernet technology saves power consumption
• IEEE 802.3x flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Support 802.1p/DSCP QoS and IGMP Snooping function
• Plug and play, no configuration needed

SPECIFICATIONS

HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
• Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
• Fan Quantity: Fanless
• Power Consumption: Maximum: 2.3W (220V/50Hz)
• External Power Supply: External Power Adapter (Output: 5VDC / 0.6A)
• LED Indicator: System Power
• Link/Act indicators per port built into each RJ-45 port
• Dimensions (W x D x H): 100 x 98 x 25mm
• Max Heat Dissipation: 7.83 BTU/h

PERFORMANCE
• Packet Forwarding Rate: 7.4Mpps
• MAC Address Table: 2K
• Packet Buffer Memory: 1Mb
• Jumbo Frame: 16KB

SOFTWARE FEATURES
• Advanced Features: Green Technology
• 802.3X Flow Control
• 802.1P/DSCP QoS (for V2 and later version)
• IGMP Snooping
• Transfer Method: Store and Forward

OTHERS
• Certification: CE, FCC, RoHS
• Environment: Operating Temperature: 0°C~40°C
• Storage Temperature: -40°C~70°C
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5%~90% non-condensing
