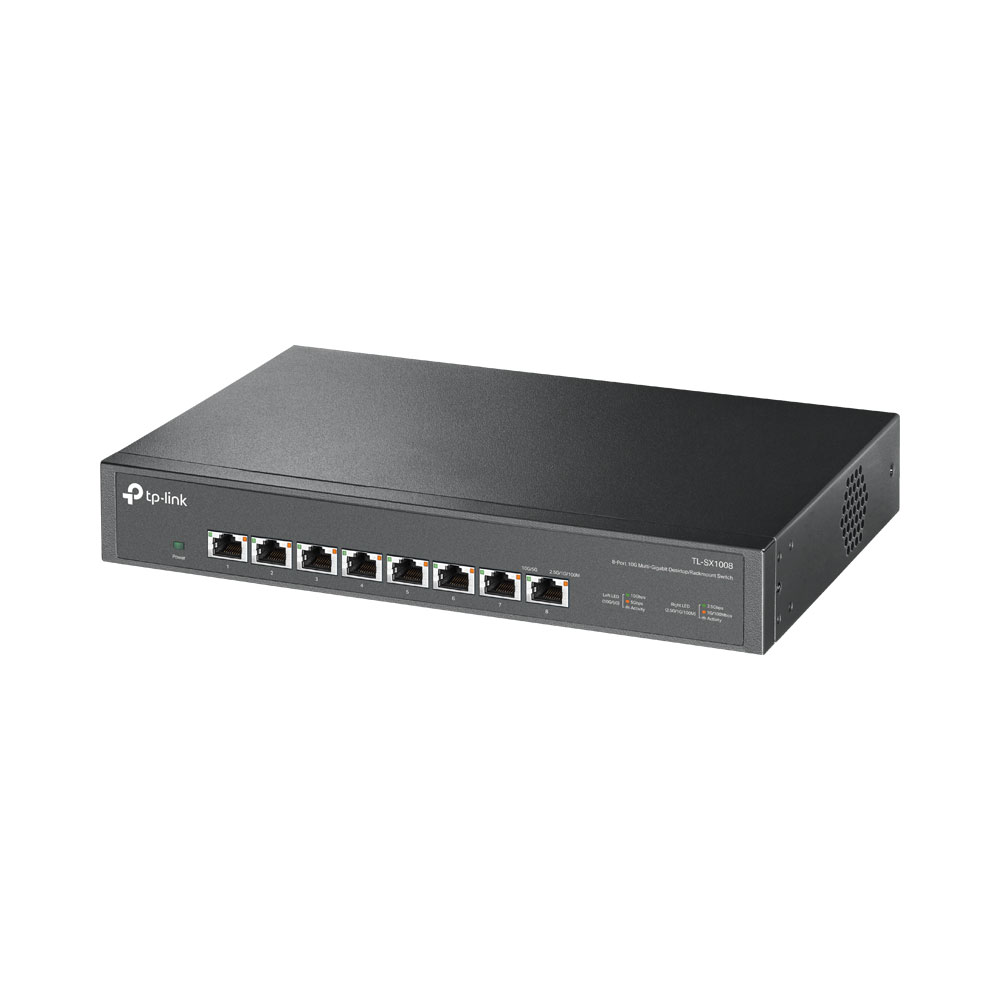

TP-Link 8-PORT 10GB DESKTOP/RACKMOUNT

Product Description

The TP-Link 8-PORT 10GB DESKTOP/RACKMOUNT is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Eight 10Gbps Ports
• 8X 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160Gbps of switching capacity
• Lightning-Fast Connections
• Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G Wi-Fi 6 AP, 8K video and more
• Ideal for Various Scenarios

Technical Specifications:
FEATURES

• Eight 10Gbps Ports
• 8X 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160Gbps of switching capacity
• Lightning-Fast Connections
• Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G Wi-Fi 6 AP, 8K video and more
• Ideal for Various Scenarios
• Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment
• Optimal 5-Speed Connections
• Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance
• Low-Noise Operation
• Smart fan speed adjustment ensures minimal noise to be non-distracting when use
• Wide Operation Temperature
• Durable metal casing and a heat dissipating design guarantee a wide operation temperature (0–50°C)
• Plug and Play
• Allows for easy deployment without the need for a technician

SPECIFICATIONS

HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
• Interface8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
• Fan Quantity: 1 smart fan with adjustable speed
• External Power Supply: 100–240 VAC, 50/60 Hz, 0.8A
• LED Indicator: System Power: 1
• Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port
• Dimensions (W x D x H) 294 × 180 × 44mm
• Max Power Consumption: 31.2W

PERFORMANCE
• Switching Capacity: 160Gbps
• Packet Forwarding Rate: 119.0Mpps
• MAC Address Table: 32K
• Packet Buffer Memory: 2Mb
• Jumbo Frame: 10 KB

SOFTWARE FEATURES
• Advanced Features: 802.3X Flow Control
• 802.1p/DSCP QoS
• Transfer Method: Store and Forward

OTHERS
• Certification: CE, FCC ,RoHS
• Environment: Operating Temperature: 0–50 °C
• Storage Temperature: -40–70 °C
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
